MacDon D65 - Page 48

214327 28 Revision B

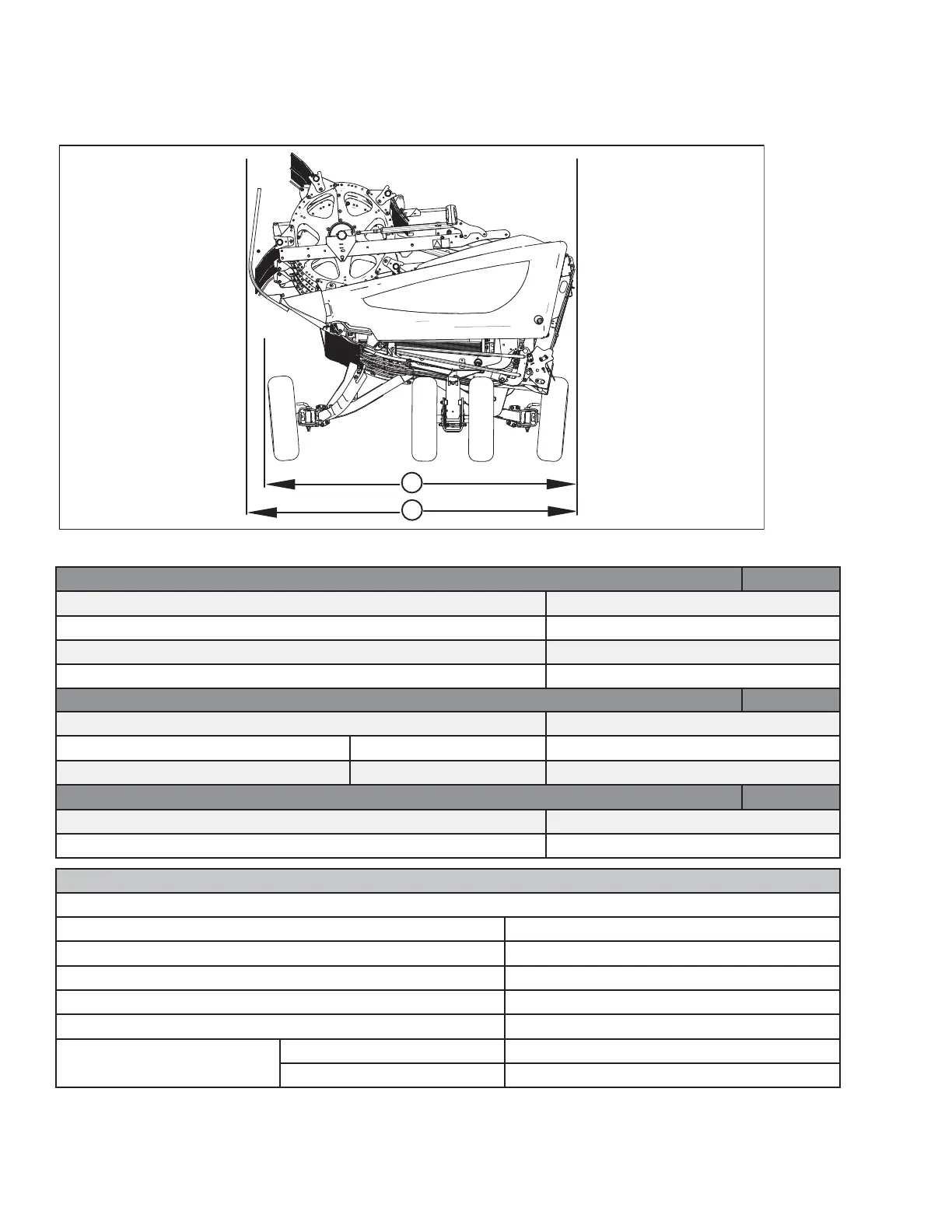

Figure 2.1: Header Width
1018123
A
B
Table 2.2 Header Attachments
HC10 Hay Conditioner
O
D
Roll length
1830 mm (72 in.)
Outside diameter
232 mm (9.1 in.)
Roll tube diameter
168 mm (6.6 in.)
Roll speed
847–915 rpm
Upper Cross Auger
O
D
Flighting (Outside diameter [O.D]) 305 mm (12 in.)
Tube diameter (O.D) All except 7.6 m (25 ft.) 152 mm (6 in.)
Tube diameter (O.D) 7.6 m (25 ft.) 178 mm (7 in.)
Stabilizer Wheel / Slow Speed Transport
O
D
Wheels
381 mm (15 in.)
Tires
P205/75 R-15
Weight
Estimated weight range with base header only (variances are due to different package configurations)
4.6 m (15 ft.) header 1329–1497 kg (2937–3302 lb.)
6.1 m (20 ft.) header 1430–1633 kg (3146–3600 lb.)
7.6 m (25 ft.) header 1605–1753 kg (3547–3872 lb.)
9.1 m (30 ft.) header 1981–2178 kg (4370–4812 lb.)
10.7 m (35 ft.) header 2181–2480 kg (4808–5337 lb.)
12.2 m (40 ft.) header
North America frame
2352–2593 kg (5197–5704 lb.)
Export frame
2461 kg (5437 lb.)
