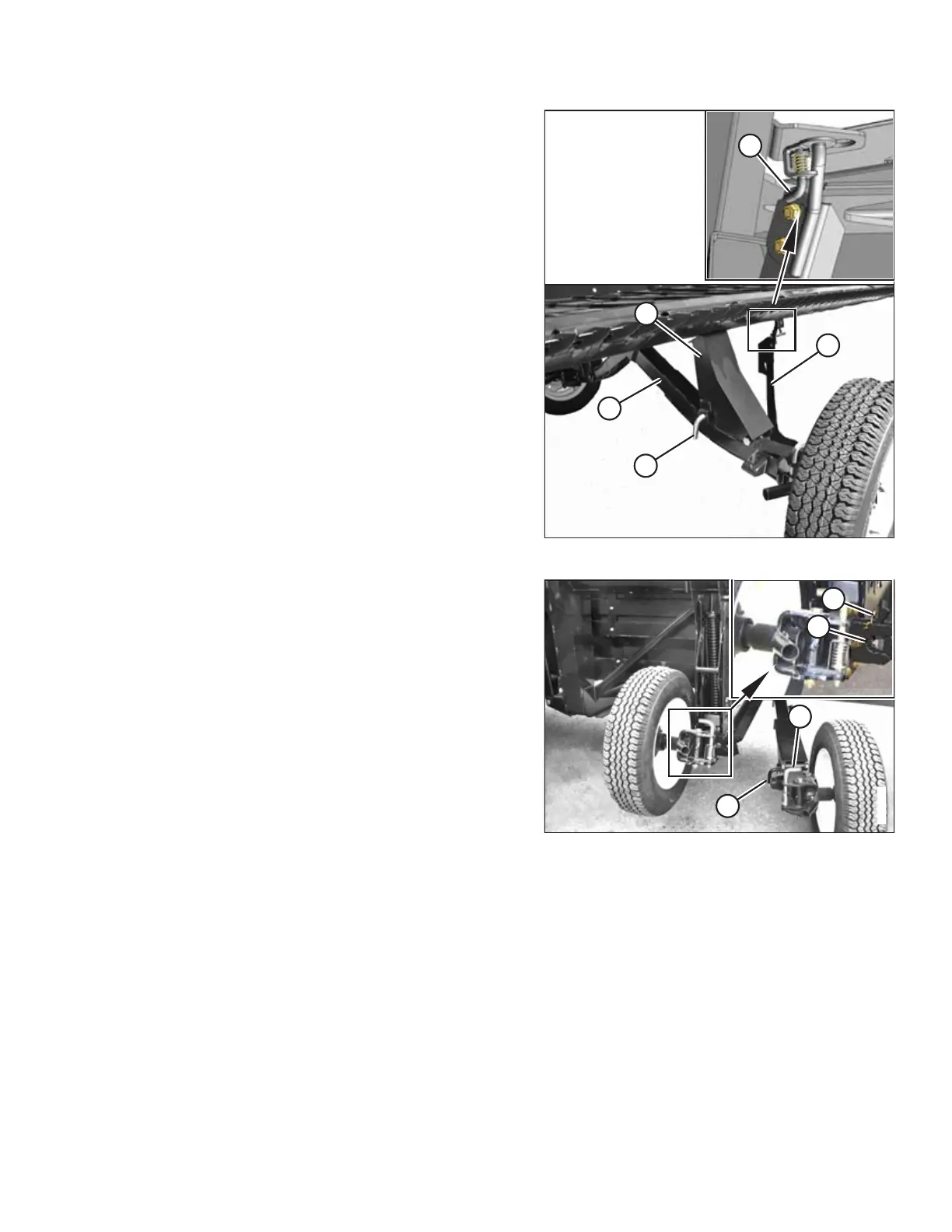

Figure 3.95: Right Rear Axle
6. Pull pin (A) on brace (B) on the left wheel in front of the
cutterbar. Disengage the brace from the cutterbar, and
lower the brace against axle (C).
7. Remove pin (D), lower support (E) onto the axle, and
reinsert the pin into the support.
8. Swing axle (C) clockwise towards the rear of the header.
1001636
B
C
D
A
Figure 3.96: Rear Axles
9. Pull pin (A) on the right wheel, swivel the wheel
counterclockwise to the position shown, and lock with
pin (A).
10. Remove hairpin (B) from latch (C).
11. Lift the wheel, lift latch (C), and engage lug (D) onto the left
axle. Ensure the latch closes.
12. Secure the latch with hairpin (B), ensuring the open end of
the pin faces the rear of the windrower.
NOTE:
The hairpin can become dislodged by crop if installed with
the open end facing the cutterbar.
IMPORTANT:
Check that wheels are locked and that handle is in locked
position.
