214327 181 Revision B

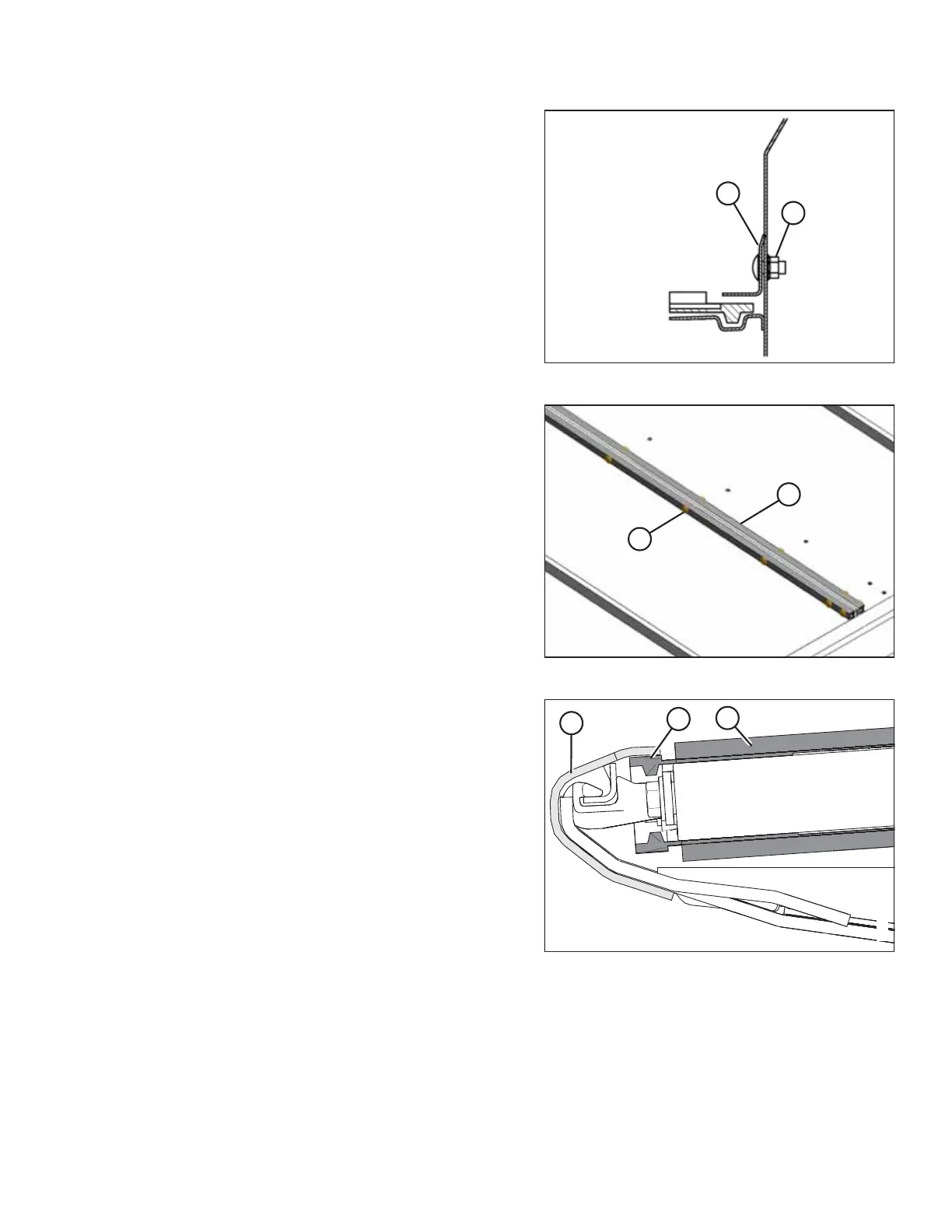

Figure 5.108: Draper Seal
11. Loosen mounting bolts (B) on rear deck deflector (A) (this
may help with draper installation).
Figure 5.109: Draper Joint
12. Attach the ends of the draper with tube connectors (B),
screws (A) (with the heads facing the center opening),
and nuts.
13. Adjust the draper tension. For instructions, refer to 5.7.3
Adjusting Draper Tension, page 182.
Figure 5.110: Draper Seal
14. Check the draper seal between the drapers and the
cutterbar. Ensure there is a 1–2 mm (0.04–0.08 in.) gap (A)
between cutterbar (C) and draper (B).
15. Refer to 5.7.5 Adjusting Deck Height, page 186 to achieve
the proper gap.
MAINTENANCE AND SERVICING
