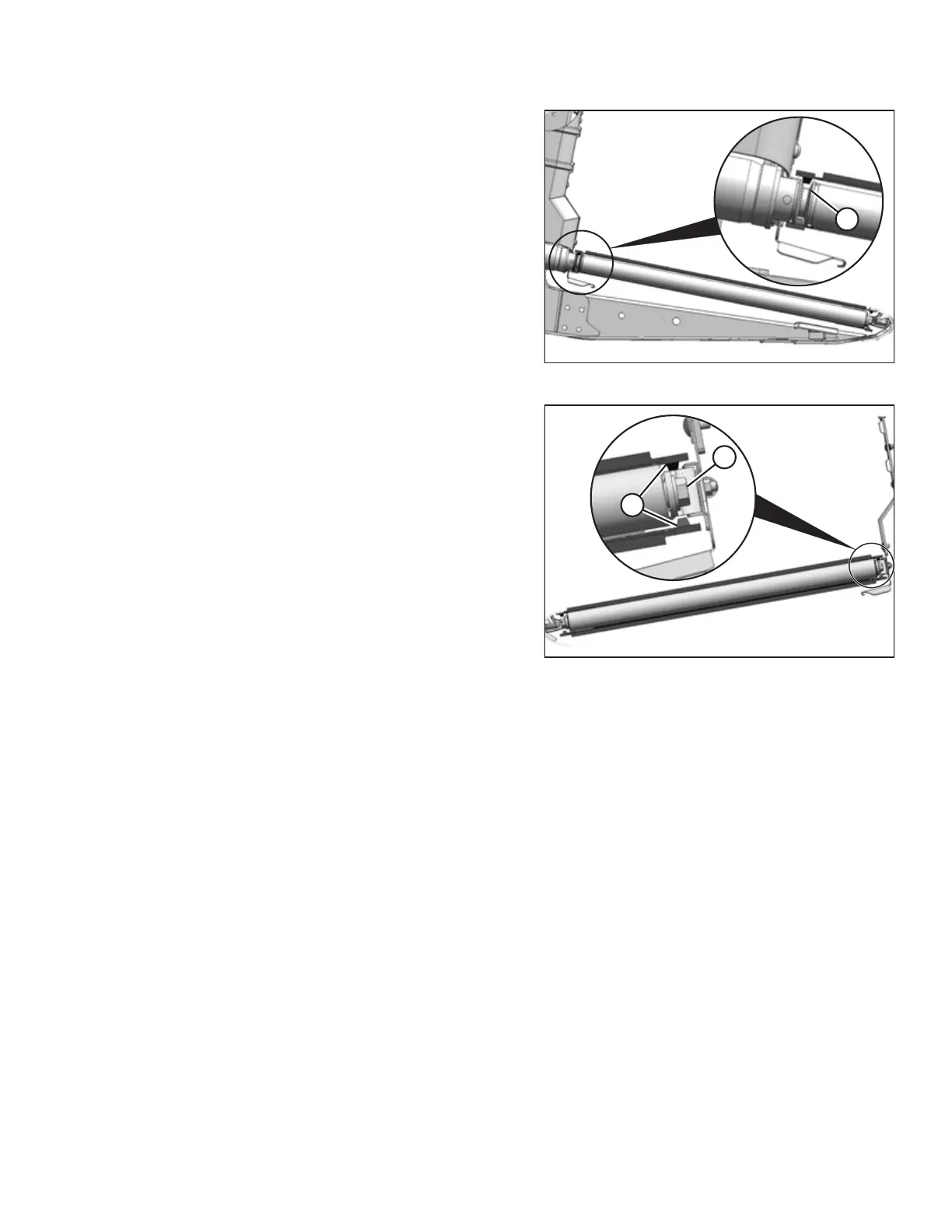

Figure 5.113: Drive Roller
6. Ensure the draper guide (the rubber track on the underside
of the draper) is properly engaged in groove (A) on the
drive roller.
1008418
A
B
Figure 5.114: Idler Roller
7. Ensure idler roller (A) is between draper guides (B).
