MacDon D65 - Page 205

214327 185 Revision B
1001579
B
A
Z
X
Y

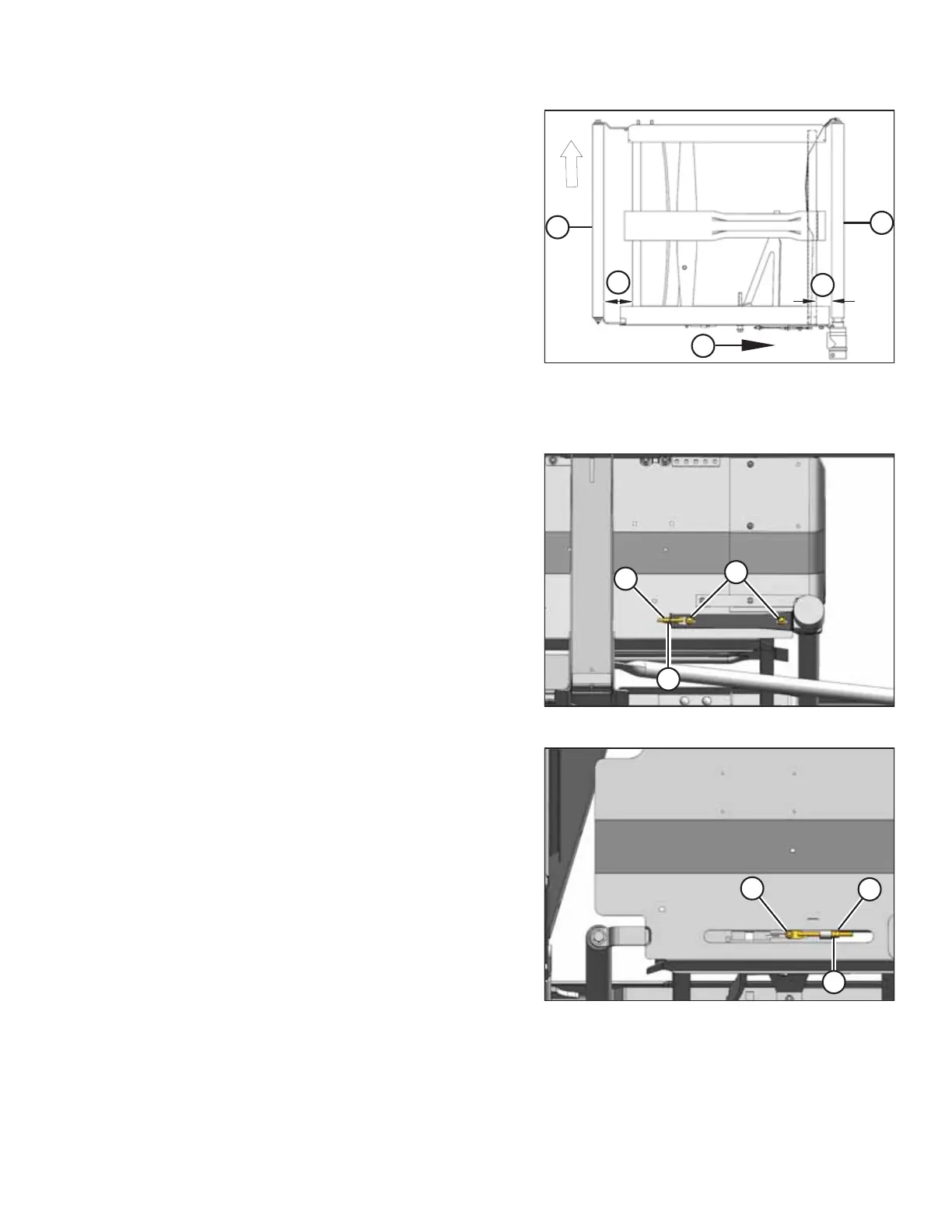

Figure 5.116: Draper Tracking Adjustments
A - Drive Roller B - Idler Roller
X - Drive Roller Adjust Y - Idler Roller Adjust
Z - Draper Rotation Direction
1. Refer to Table 5.1, page 184 to determine which roller
requires adjustment and which adjustments are necessary.
NOTE:
To change the distance (X), adjust the back end of the roller
using the adjuster mechanism at the inboard end of
the deck.
1009586
B
C
A
Figure 5.117: Left Drive Roller
2. Adjust the drive roller distance (X) as follows:
a. Loosen nuts (A) and jam nut (B).
b. Turn adjuster nut (C).
1025263
A
B
C
Figure 5.118: Left Idler Roller
3. Adjust the idler roller distance (Y) as follows:
a. Loosen nut (A) and jam nut (B).
b. Turn adjuster nut (C).
NOTE:
If the draper does not track at the idler roller end after the
idler roller adjustment, the drive roller is likely not square to
the deck. Adjust the drive roller, and then readjust the idler
roller.
MAINTENANCE AND SERVICING
