214327 187 Revision B

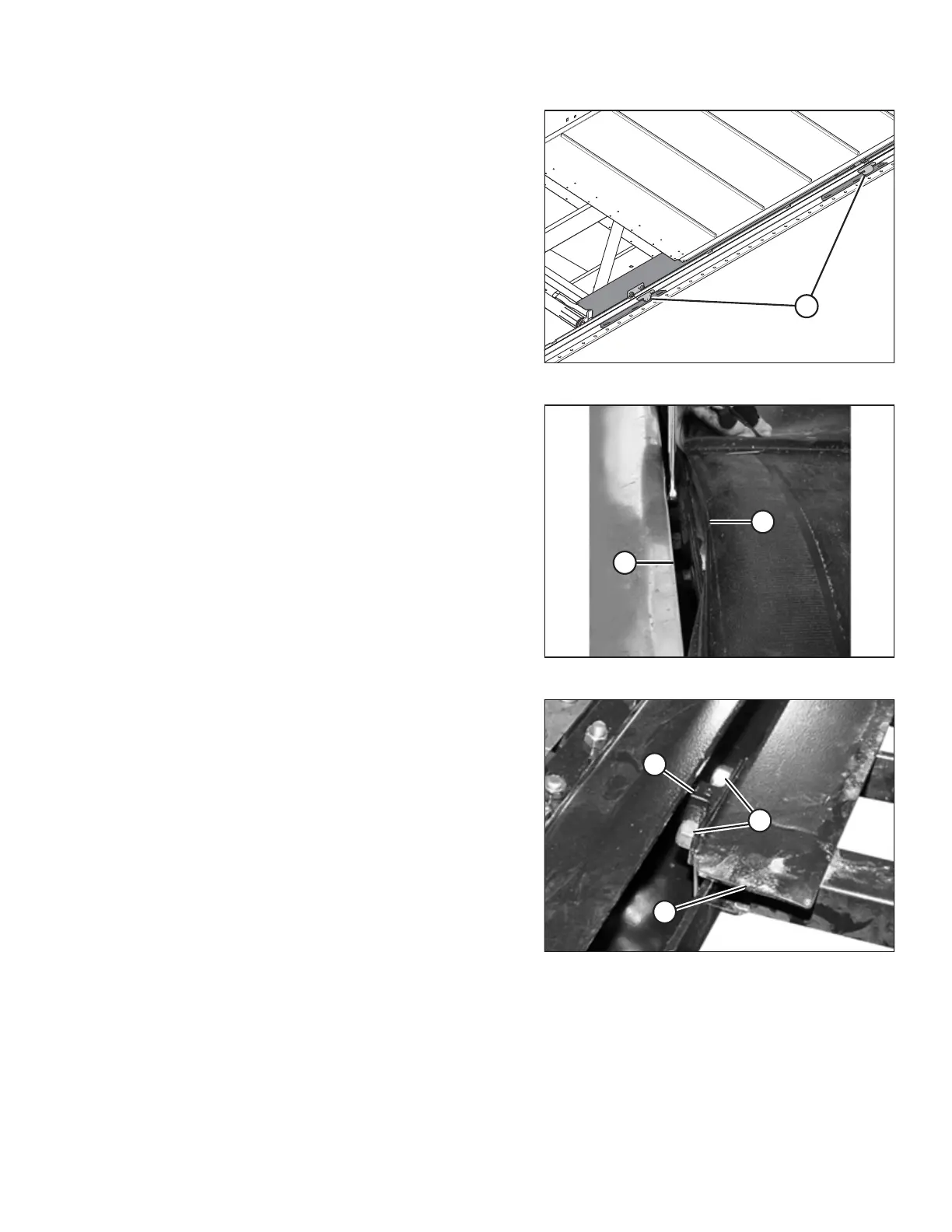

Figure 5.120: Draper Deck Supports
5. Measure the clearance between the draper and the
cutterbar at deck supports (A). For instructions, refer to
Step 4, page 186.
6. Reduce the tension on the draper. For instructions, refer to
5.7.3 Adjusting Draper Tension, page 182.
Figure 5.121: Deck Adjustment
7. Lift the front edge of draper (A) past cutterbar (B) to expose
the deck support.
Figure 5.122: Deck Support
8. Loosen two lock nuts (A) on deck support (B) by one
half-turn ONLY .
NOTE:
The deck is shown with the draper removed in the
illustration at right. The number of deck supports depends
on the width of the header.
9. To lower the deck relative to the deck supports, tap
deck (C) with a hammer. To raise the deck relative to the
deck supports, tap deck support (B) using a hammer
and punch.
10. Measure the thickness of the draper belt.
MAINTENANCE AND SERVICING
