MacDon D65 - 5.8 Reel

214327 203 Revision B
1014049
A

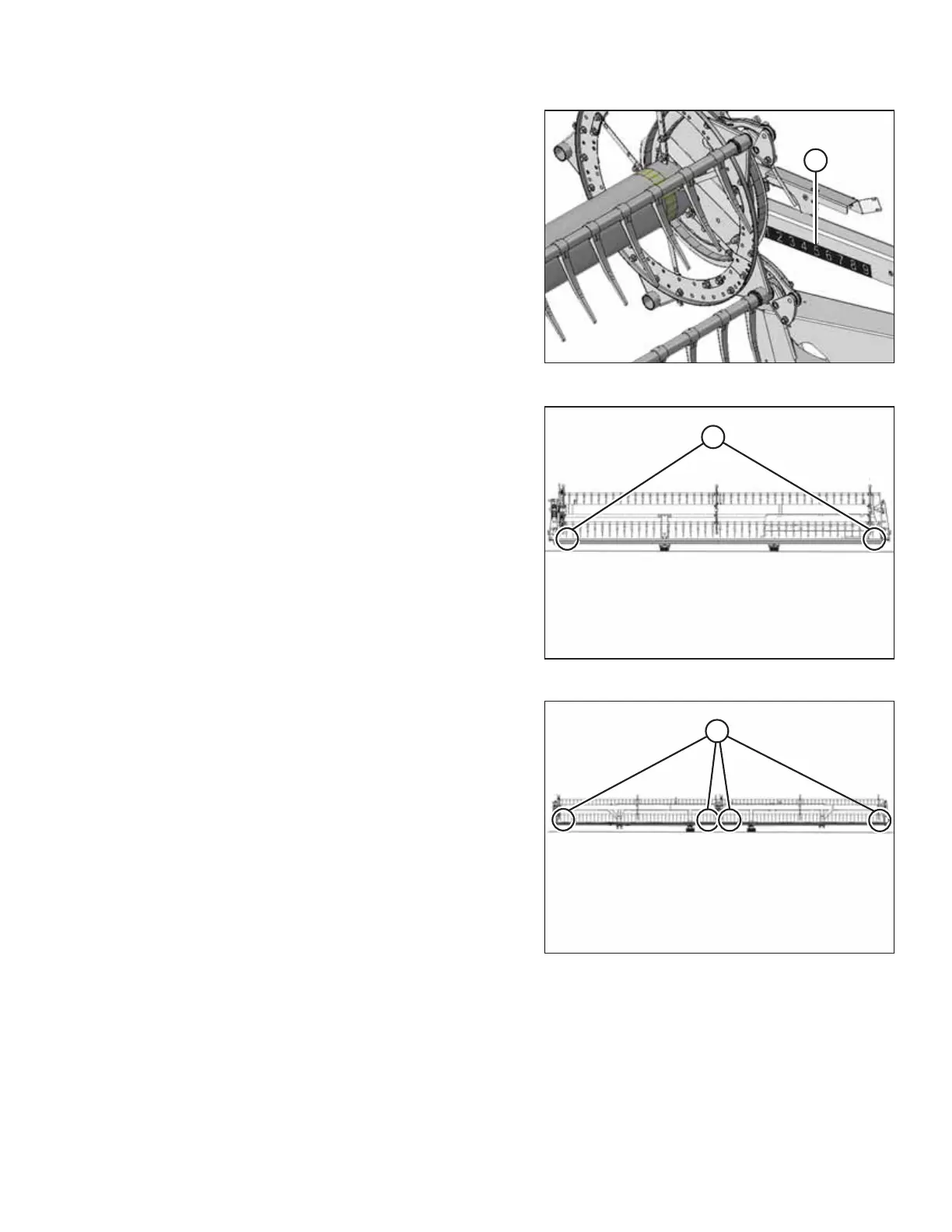

Figure 5.153: Fore-Aft Position
2. Set the fore-aft position to middle position 5 on fore-aft
position indicator decal (A).
3. Lower the reel fully.
4. Shut down the engine, and remove the key from
the ignition.
1001595
A
Figure 5.154: Single-Reel Header
5. Measure the clearance at the ends of each reel at
locations (A).
NOTE:
The reel is factory-set to provide more clearance at the
center of the reel than at the ends to compensate for reel
flexing.
1001596
A
Figure 5.155: Double-Reel Header
