214327 238 Revision B

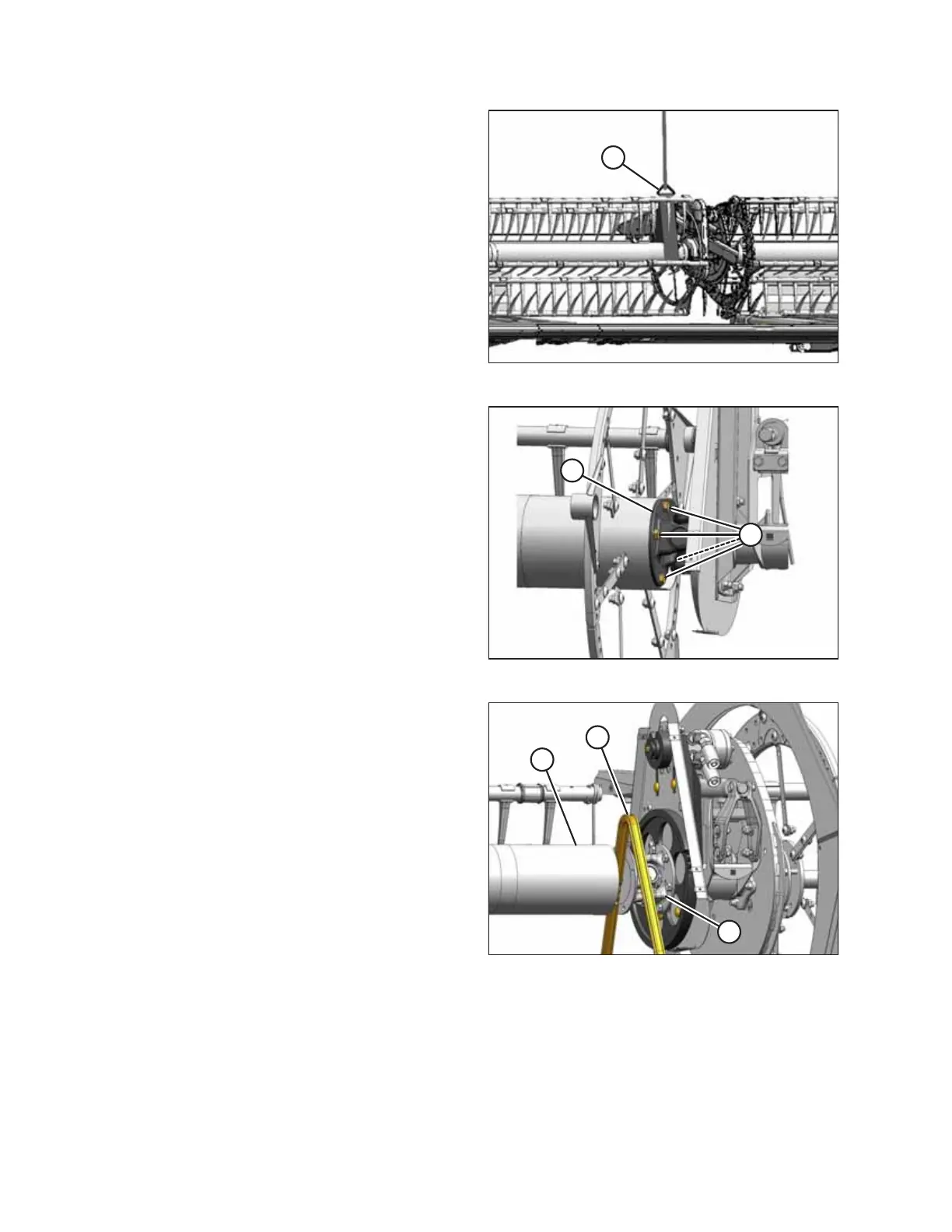

Figure 5.234: Supporting Reel
3. Support the inboard end of the right reel with a front end
loader and nylon slings (A) (or equivalent lifting device).
IMPORTANT:
Support the reel as close to the end disc as possible to
avoid damaging or denting the center tube.
Figure 5.235: U-Joint
4. Remove four bolts (A) securing the reel tube to U-joint
flange (B).
Figure 5.236: Replacing Chain
5. Move the right reel sideways to separate reel tube (A) from
U-joint (B).
6. Remove drive chain (C).
7. Route new chain (C) over U-joint (B) and position it onto
the sprockets.
MAINTENANCE AND SERVICING
