MacDon D65 - Page 83

214327 63 Revision B
1024544
B
C
A

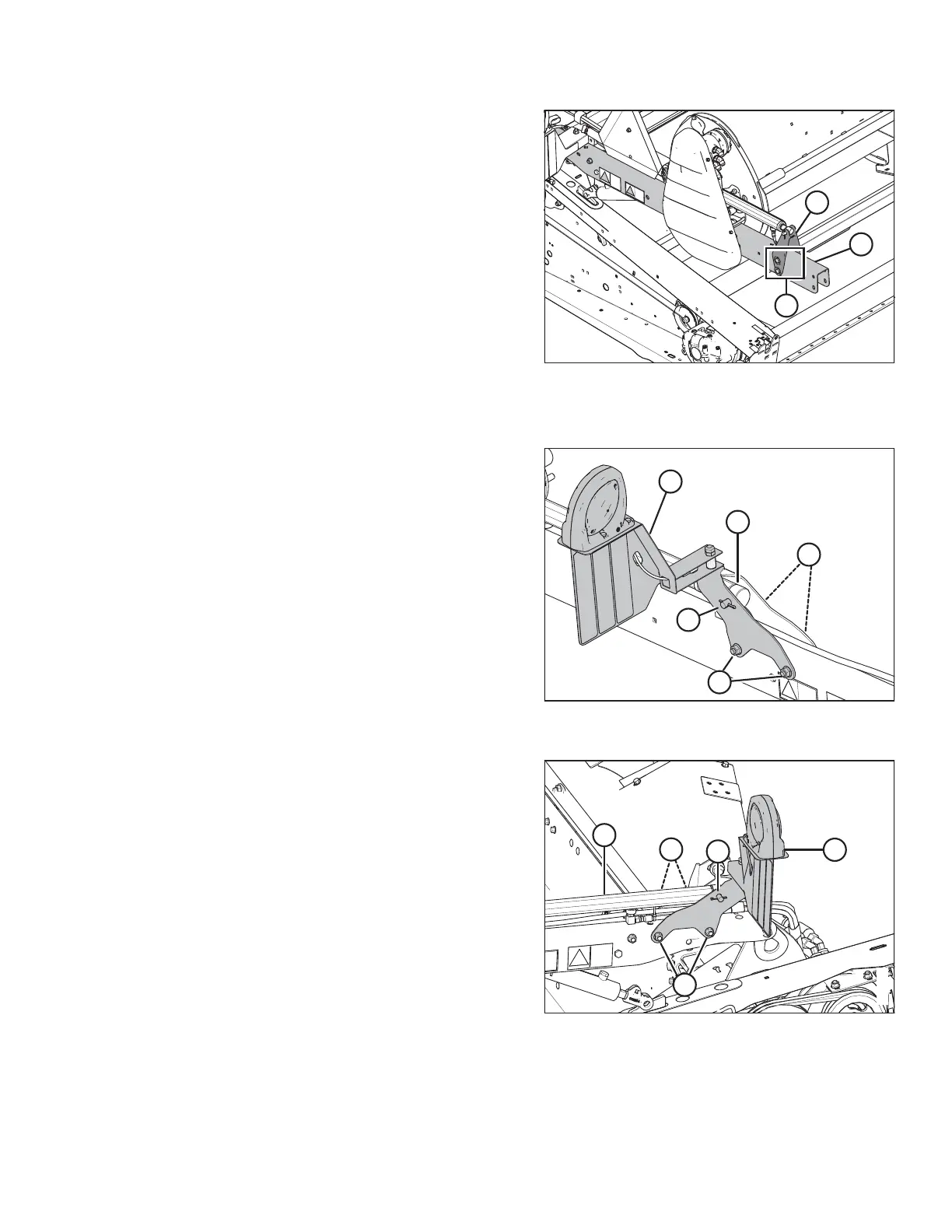

Figure 3.35: Right Reel Arm Cylinder in Aft Position
4. Push/pull the reel until bracket (B) lines up with the fore/
aft set of holes (C).
5. Reinstall the four bolts (A) securing the cylinder bracket (B)
to the reel arm at the new position.
To reposition the left reel arm cylinder:
1030728
A
B
C
D
D
Figure 3.36: Left Reel Arm Cylinder in Forward
Position
6. Remove pin (A) securing cylinder (B) to bracket/light
assembly (C).
7. Remove bolts (D) securing bracket/light assembly (C) to the
reel arm, and remove the bracket/light assembly.
8. Remove the cable tie securing the harness to the bracket/
light assembly (C) or reel arm if necessary.
9. Swivel the light to the working position as shown.
1030732
A
B
C
D
D
Figure 3.37: Left Reel Arm Cylinder in Aft Position
10. Reposition the bracket/light assembly (C) on the reel arm as
shown, and secure with four bolts (D). Tighten bolts.
11. Push the reel back and attach cylinder (B) to the bracket/
light assembly (C) with pin (A). Secure pin with cotter pin.
12. Secure the light harness to the bracket/light assembly (C)
using a cable tie.
13. Check the reel clearance to the backsheet, upper cross
auger (if installed), and reel braces.
14. Adjust the reel tine pitch if necessary. Refer to 3.7.12 Reel
Tine Pitch, page 68.
OPERATION
