MacDon D65 - Page 87

214327 67 Revision B
1026237
A
B
C
D

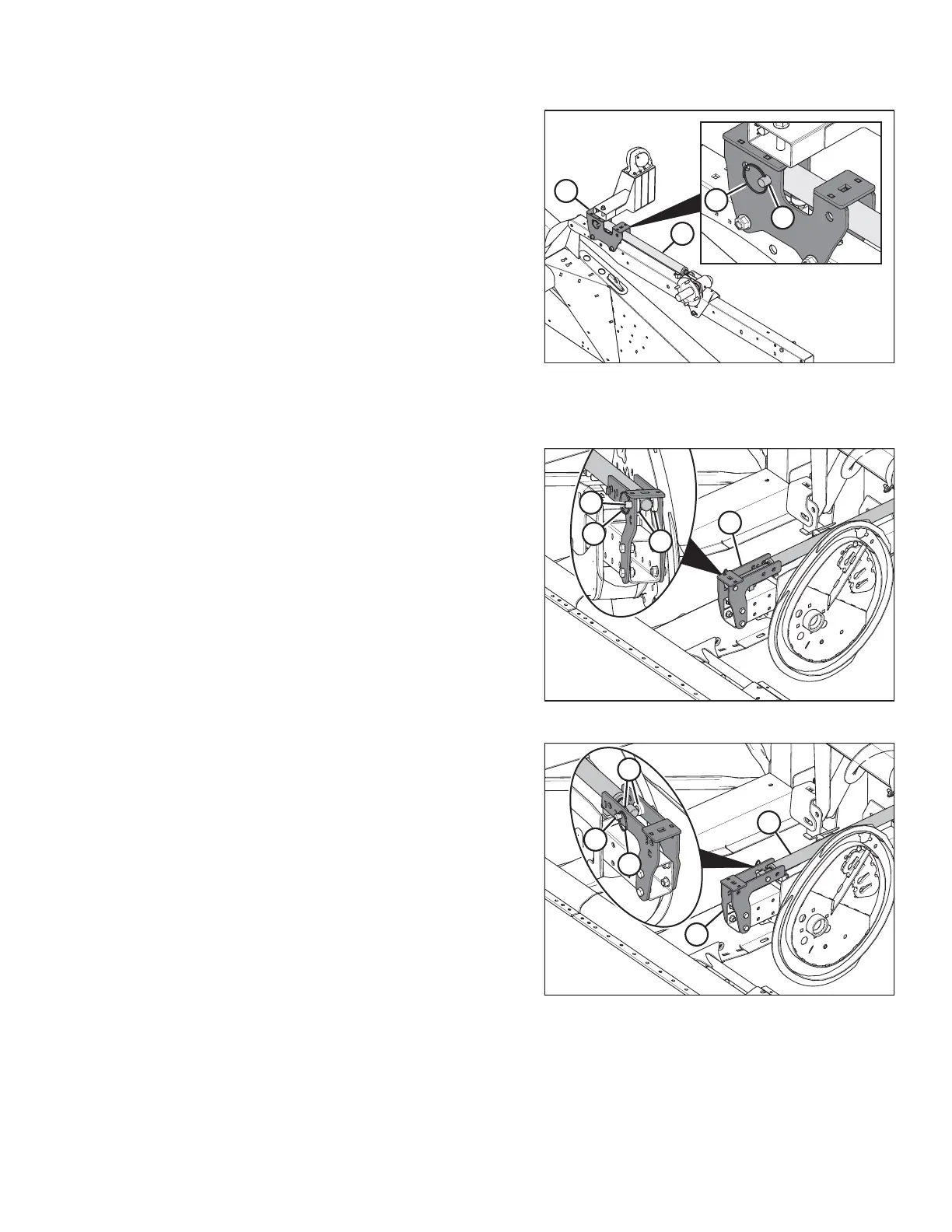

Figure 3.45: Left Reel Arm in Aft Position
5. Reinstall clevis pin (B) at the new position in bracket (C),
and secure end of cylinder (D) with ring (A).
To reposition the right reel arm cylinder:
1024344
D
A
B
C
Figure 3.46: Forward Position – Center Arm
6. Remove ring (A), clevis pin (B), and washers (C) from
bracket (D). Retain the ring, clevis pin, and washers.
1024355
E
D
A
B
C
Figure 3.47: Center Reel Arm in Aft Position
7. Push the reel back until the end of cylinder (E) lines up with
the reel position 2 hole on bracket (D). Position washers (C)
on both sides of the cylinder end inside the bracket.
8. Reinstall clevis pin (B) at the new position. Secure it with
ring (A).
OPERATION
