214327 69 Revision B

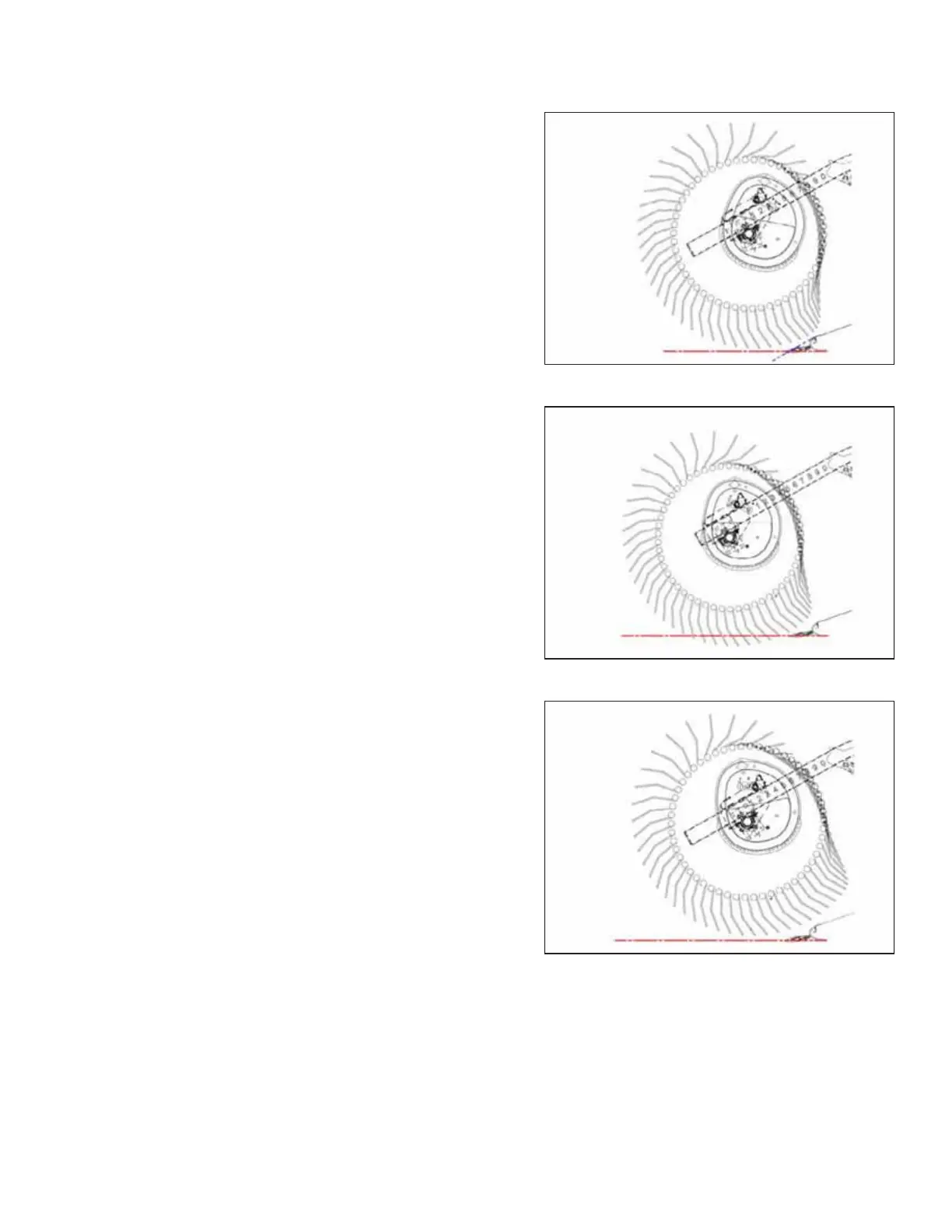

Figure 3.50: Finger Profile – Cam Position 1
Cam Position 1, Reel Position 6 or 7 delivers the most even
crop flow onto the drapers without fluffing up or disturbing the
material.
• This setting will release crop close to the cutterbar and
works best if the cutterbar is on the ground.
• Some crops will not be delivered past the cutterbar when
the cutterbar is raised off the ground and the reel is pushed
forward; therefore, set the initial reel speed approximately
equal to the ground speed.
Figure 3.51: Finger Profile – Cam Position 2
Cam Position 2, Reel Position 3 or 4 is the recommended
starting position for most crops and conditions.
• If the crop is stalling on the cutterbar when the reel is in the
forward position, increase the cam setting to push the crop
past the rear edge of the cutterbar.
• If the crop is getting fluffed or if there is a disruption to the
flow across the drapers, decrease the cam setting.
• This setting generates a fingertip speed that is
approximately 20% faster than the reel speed.
Figure 3.52: Finger Profile – Cam Position 3
Cam Position 3, Reel Position 6 or 7 is mainly used to leave
long stubble.
• This position allows the reel to reach forward and lift the
crop across the knife and onto the drapers.
• This setting generates a fingertip speed that is
approximately 30% faster than the reel speed.
OPERATION
