MacDon D65 - Page 95

214327 75 Revision B
4. Engage the header safety props. For instructions, refer to your windrower operator’s manual.
5. Open or remove the endshields. For instructions, refer to 3.2.3 Endshields, page 35.
1001837
B
A

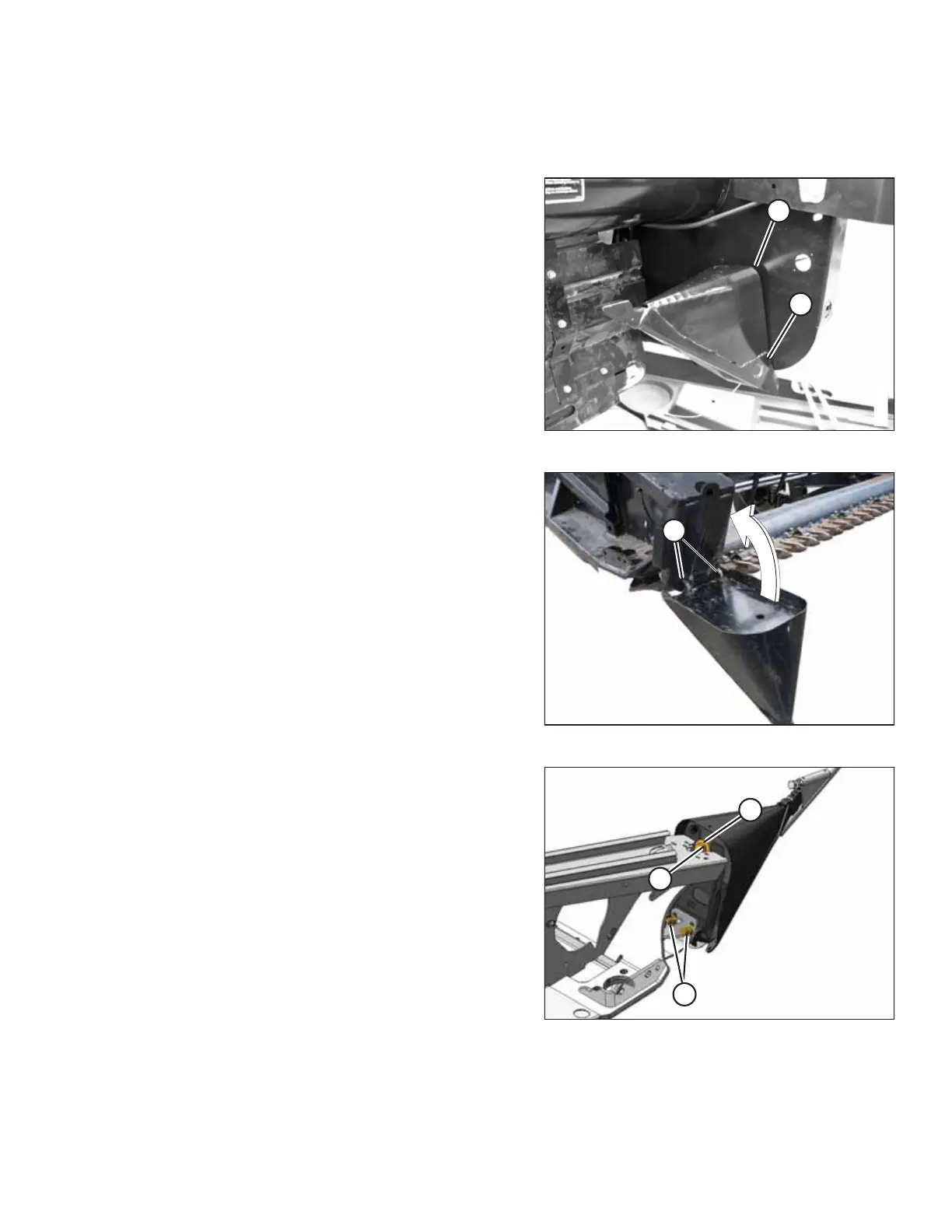

Figure 3.62: Stored Crop Divider
6. Remove the crop divider from the storage location by lifting
the crop divider to disengage lugs (A) at the lower end and
then lowering it slightly to disengage pin (B) from the
endsheet.
1001216
A
Figure 3.63: Crop Divider
7. Position the crop divider as shown by inserting lugs (A) into
the holes in the endsheet.
1001834
A
B
C
Figure 3.64: Crop Divider
8. Lift the forward end of the crop divider and install bolt (A)
and special stepped washer (B) (step towards the divider).
Tighten the bolt.
9. Pull at the tip of the crop divider and ensure there is no
lateral movement. If necessary, adjust bolts (C) to tighten
the crop divider and eliminate lateral movement.
10. Close or install the endshields. For instructions, refer to
3.2.3 Endshields, page 35.
OPERATION
