NOTICE:
・
The switch displays will change from green to
yellow as the outriggers are operated.
・
Select individual or simultaneous operation to
suit the requirements for operating the
outriggers.
・
For more information on the outrigger indicator
lamps, see “OUTRIGGER INDICATORS” on
page 4-38.

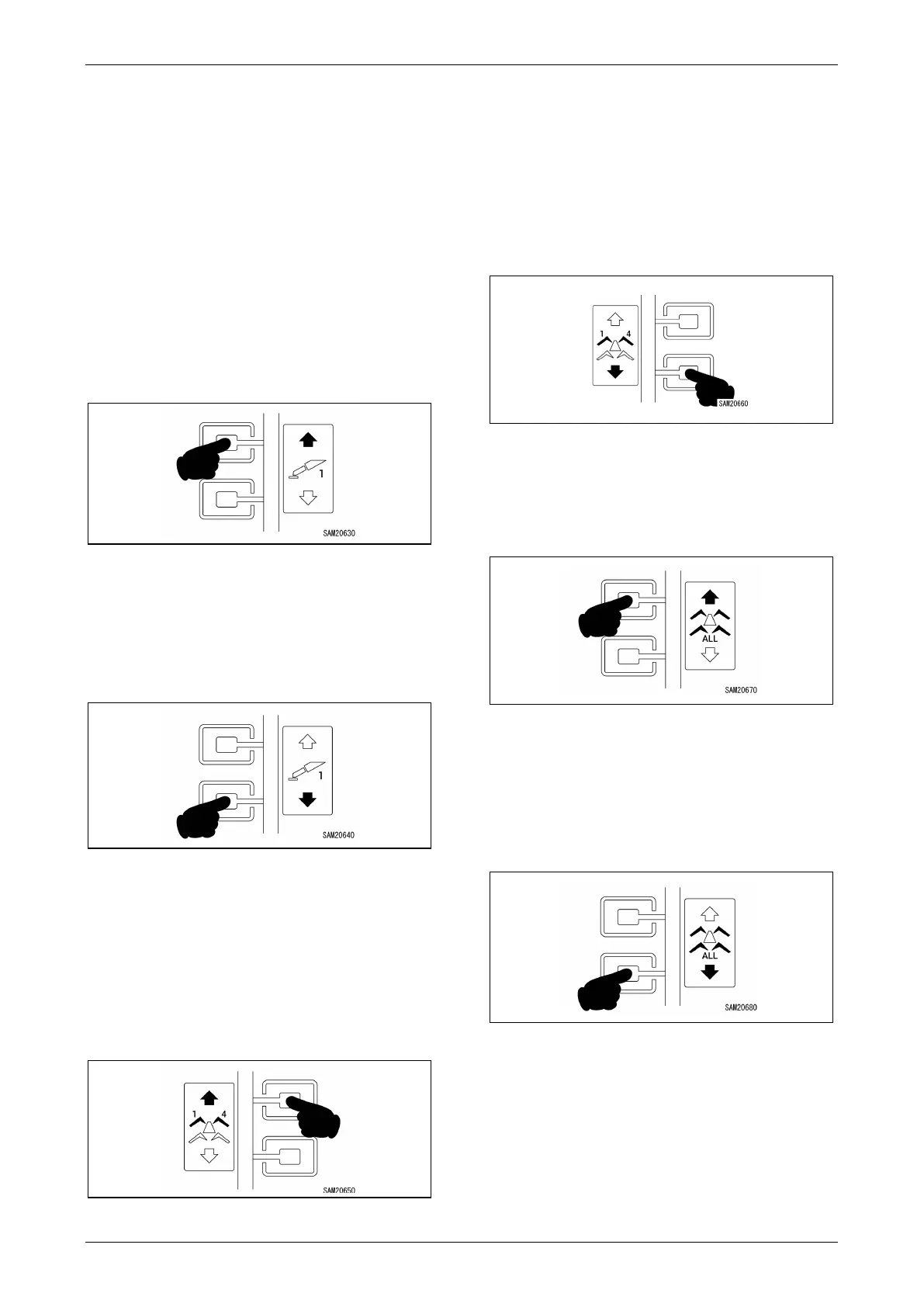

32BOutrigger 1 to 4 Stowage Switches
Allow individual outriggers to be stowed
independently.
Fig. 4-93
33BOutrigger 1 to 4 Ground Set-Up
Switches
Allows individual outriggers to be brought into
contact with the ground.
Fig. 4-94
34BOutrigger 1 and 4 / 2 and 3 Stowage
Switches
Allow front and rear outriggers to be stowed.
• Front outrigger 1 and 4 simultaneous
operation
• Rear outrigger 2 and 3 simultaneous operation
Fig. 4-95
35BOutrigger 1 and 4 / 2 and 3 Ground
Set-Up Switches
Allows front and rear outriggers to be brought
into contact with the ground.
• Front outrigger 1 and 4 simultaneous
operation
• Rear outrigger 2 and 3 simultaneous operation
Fig. 4-96
36BOutrigger Combined Stowage Switch
Allows all four outriggers to be stowed
simultaneously.
Fig. 4-97
37BOutrigger Combined Ground Set-Up
Switch
Allows all four outriggers to be brought into
contact with the ground simultaneously.
Fig. 4-98
