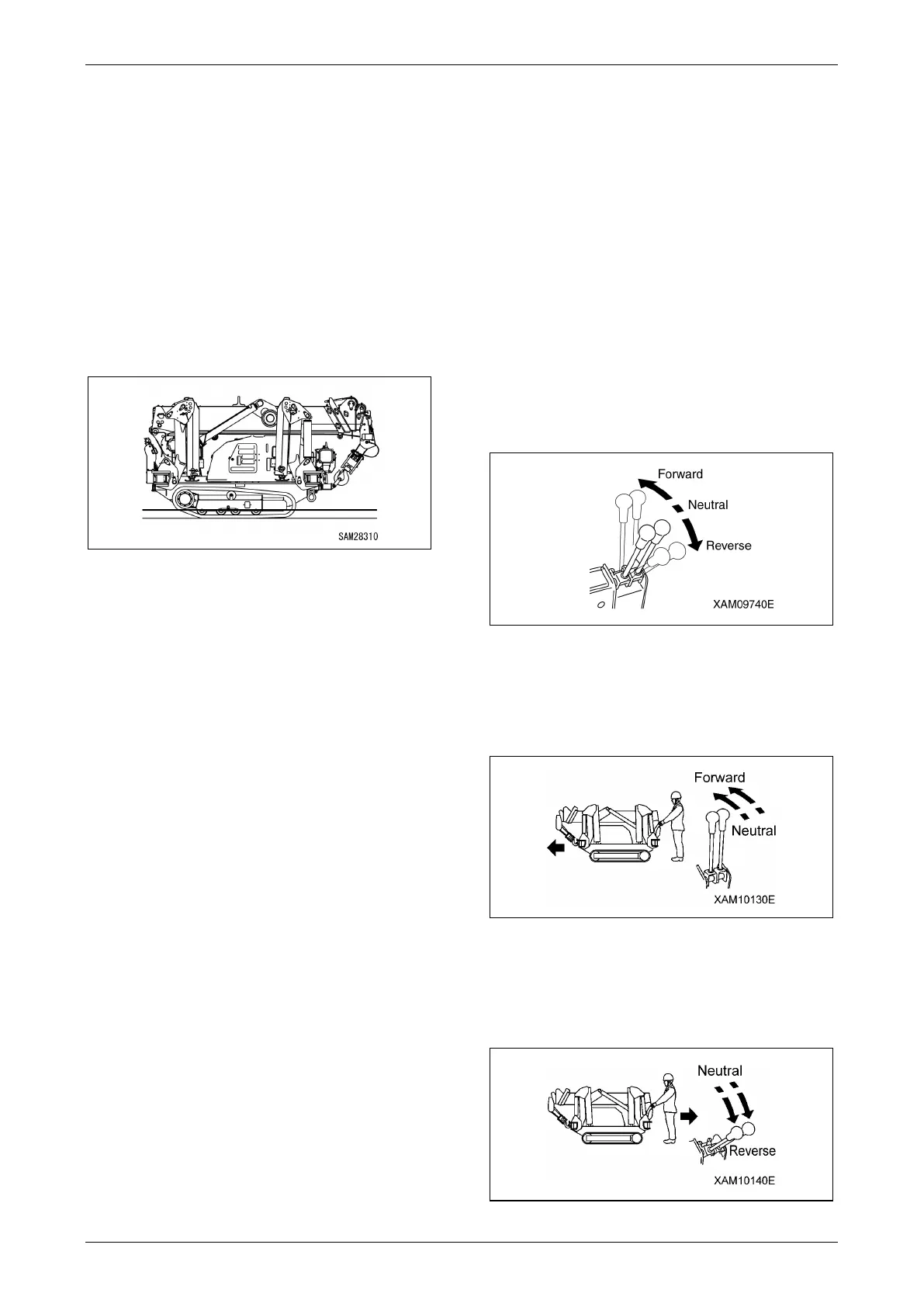

M A E D A Mini-Crawler Crane Section 4 – TRAVELLING CONTROLS AND OPERATION
9/2020 MC285CB-3 4-31
WARNING! The following safety message
addresses a potential Tip Hazard while the
machine is travelling through water:
Check the depth and water velocity before
travelling through water. Do not travel
through water without knowing the depth
and water velocity.
• When travelling through water, adhere to
the permissible water depth, and drive
slowly to prevent electrical equipment
inside the frame from becoming wet.
Permissible water depth: Not exceeding
the centre of the track rollers
Fig. 4-73
• There is a risk of electric shock and
damage if electrical equipment is allowed
to get wet.
NOTICE: Always follow all local laws and
regulations when travelling on public roads.
Directional Controls
Before travelling the machine, perform the
following:
• Retract and fully lower the boom.
• Secure the hook block to the STOW position.
• Stow and secure the outriggers, making sure
each position pin is locked.
To travel the machine:
Move the travel lever to the TRAVEL position.
The left and right travelling levers are used to
move the machine forward/backward, stop, turn
and adjust the travelling speed. Adjust the motor
speed to low and move the left and right
travelling levers slowly at the same time to check
the travelling speed of the machine.
Fig. 4-74
Travelling Forward
Push the left and right travelling levers slowly at
the same time to move forward.
Fig. 4-75
Travelling in Reverse
Pull the left and right travelling levers slowly at
the same time to move in reverse.
Fig. 4-76
