Section 4 – RADIO REMOTE CONTROL SYSTEM OPERATION Mini-Crawler Crane M A E D A
4-108 9/2020 MC285CB-3
Powering ON
1. Press the Power Switch on the transmitter
and verify that the battery symbol at the top
left of the left-hand display flashes in green.
The radio remote control system is in standby
mode once “Enter start sequence” appears
on the right-hand display.

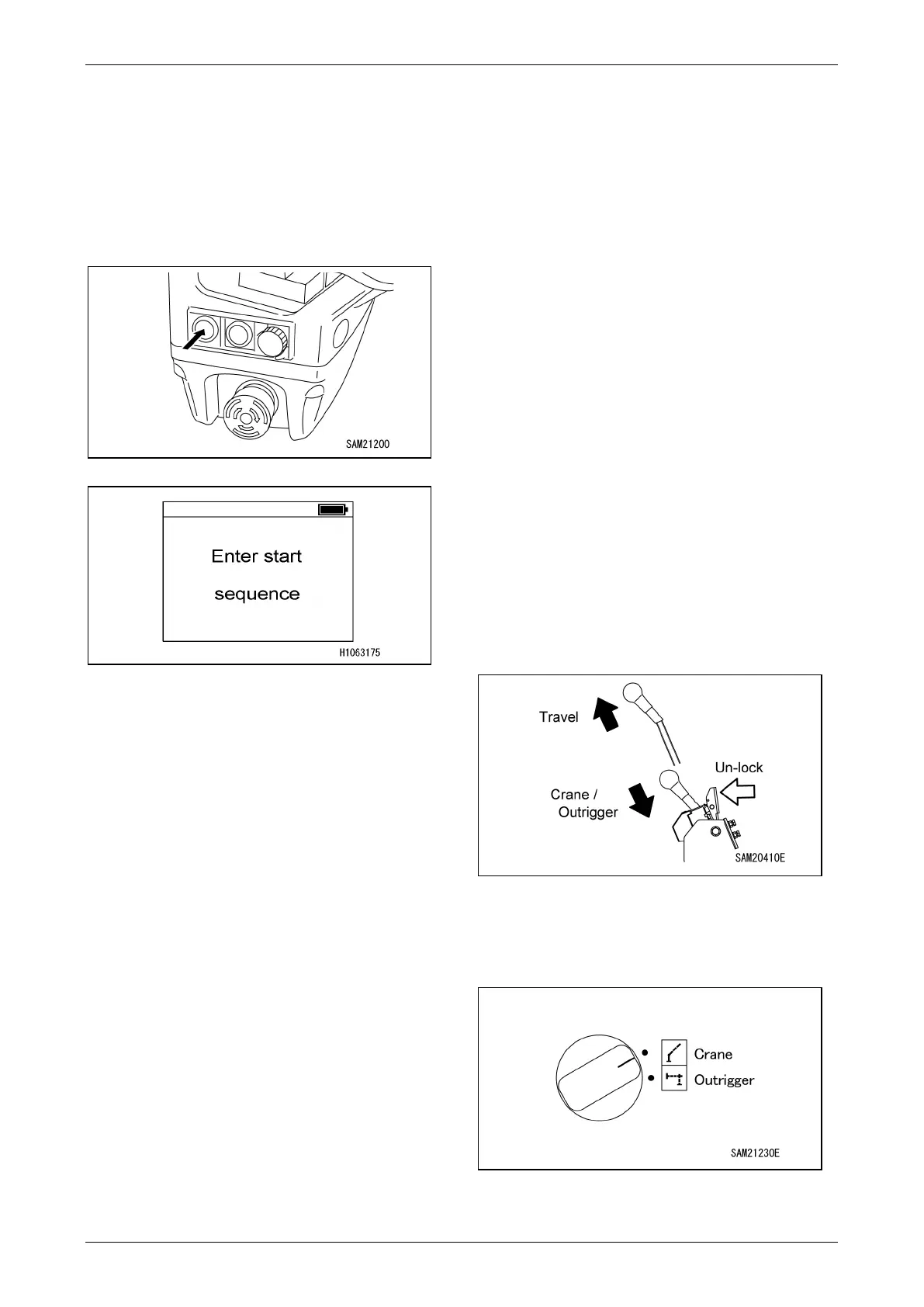

Fig. 4-262
Fig. 4-263
CAUTION: If the radio remote control system
does not power on, check the radio remote
control system for the following:
• Is the battery charged fully?
• Is the Emergency Stop (EMO)/
Transmitter Power OFF Switch pressed?
NOTICE: When either of the following occurs in
standby mode, power will shut off:
• Any switch other than the Transmitter Power
Switch is pressed
• No action is performed for a certain period
2. Press the Transmitter Power Switch in
standby mode. The radio remote control
system power will turn on once the display
changes.
3. To enable crane operations, press the
Transmitter Power Switch once again with
power to the radio remote control system
turned on.
CAUTION: You must press the Transmitter
Power Switch a total of three times to enable
crane operations using the radio remote
control system.
Starting/Stopping the Machine
Starting the Machine
1. Turn the Starter Switch ON.
NOTICE: Power will not be turned on for the
receiver, and the radio remote control cannot be
used unless the starter switch is turned on.
Stopping the Machine
Pressing the Emergency Stop (EMO)/
Transmitter Power OFF Switch when the
machine is running will allow the machine to stop.
NOTICE: The machine stops, but the power is still
turned on. Be sure to turn the starter switch to
“OFF” when work is complete.
Operation after Machine Is Started
Operation before Work
Push in the travel lever on the machine main unit
while unlocking the lever to enable operation of
the outriggers and crane.
NOTICE: If the travel lever is not pushed in, the
interlock will engage and prevent outrigger and
crane operations.
Fig. 4-264
Switching Operation Mode
Use the operation mode selector switch to switch
between outrigger and crane operations.
Fig. 4-265
To Next Page
