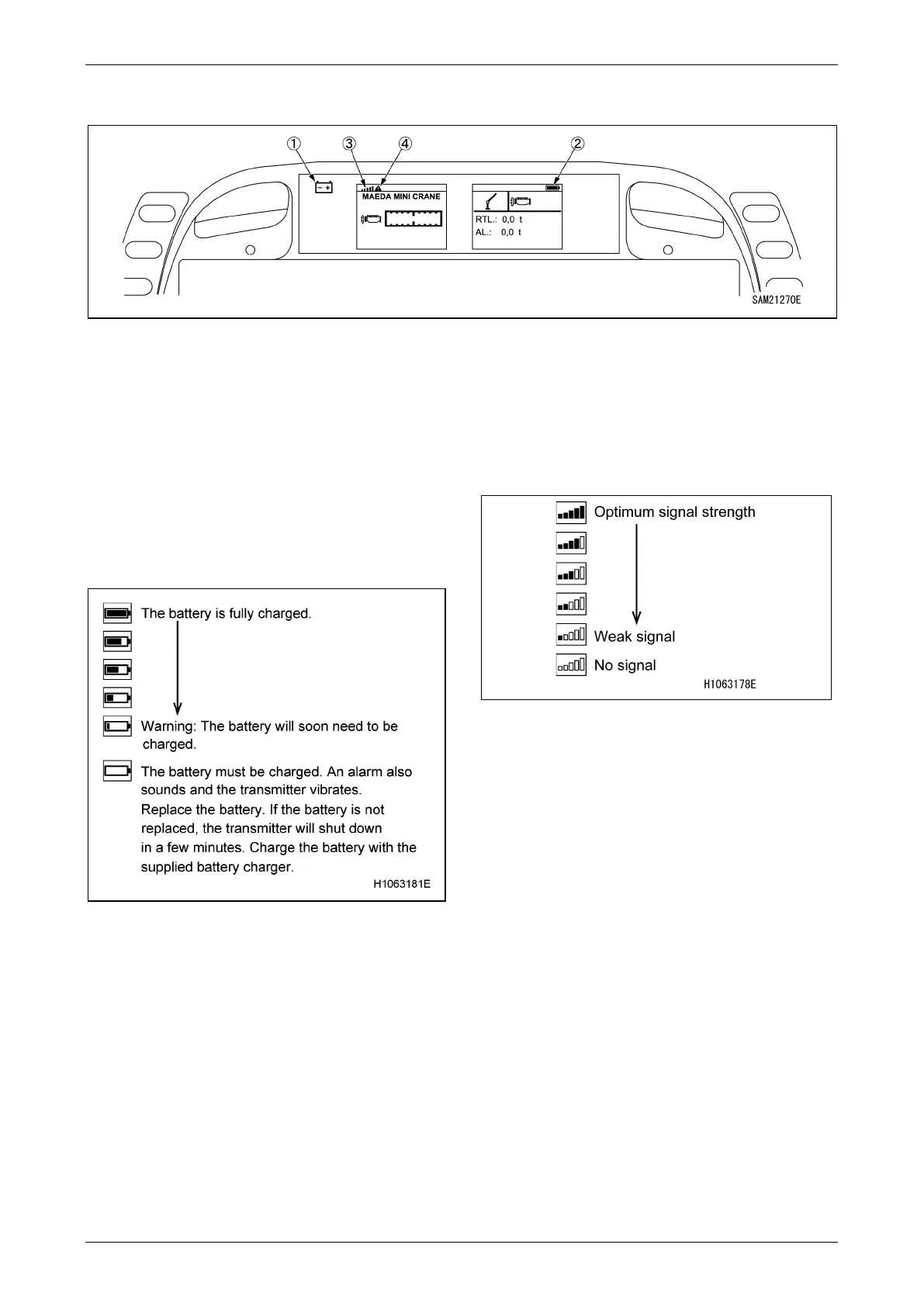

Status Indications of Display
Fig. 4-246
1 - Battery Icon
2 - Battery Status Icon
3 - Radio Wave Status Bar
4 - Error Icon
Battery Icon
Blinks in green when the power supply is in
normal condition.
Battery Status Icon
Indicates the remaining battery levels as follows:
Fig. 4-247
Radio Wave Status Bar
The intensity of radio waves are as follows:
Fig. 4-248
Error Icon
An icon appears when an error is detected.
Detailed information about the error icons can be
checked from the radio remote control menu in the
configuration menu.
