Outrigger Mode
When the Outrigger Mode Switch is pressed on the Home Screen, the Outrigger Mode is displayed.

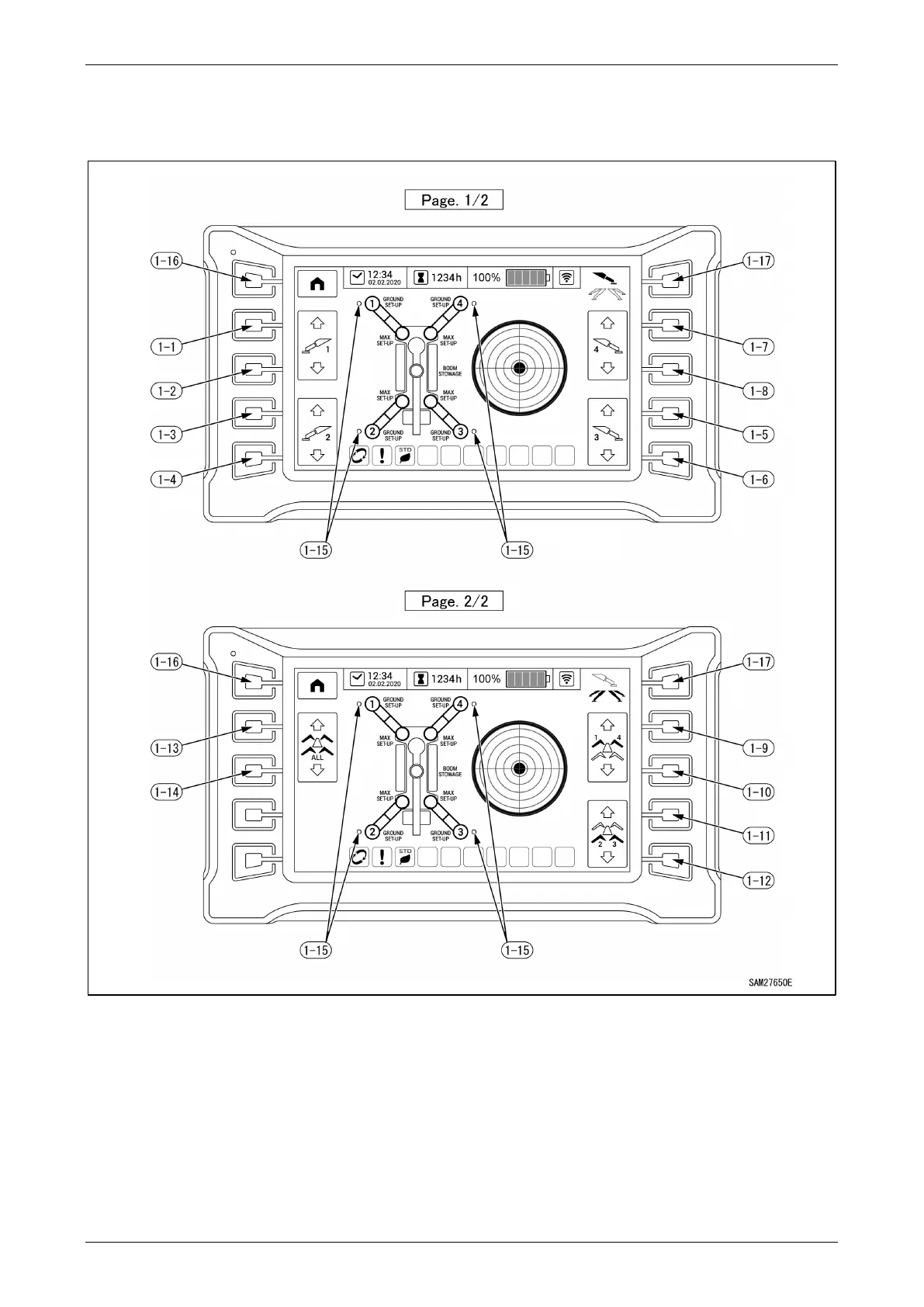

Fig. 4-92
(1-1) Outrigger 1 Stowage Switch
(1-2) Outrigger 1 Ground Set-Up Switch
(1-3) Outrigger 2 Stowage Switch
(1-4) Outrigger 2 Ground Set-Up Switch
(1-5) Outrigger 3 Stowage Switch
(1-6) Outrigger 3 Ground Set-Up Switch
(1-7) Outrigger 4 Stowage Switch
(1-8) Outrigger 4 Ground Set-Up Switch
(1-9) Outrigger 1 and 4 Stowage Switch
(1-10) Outrigger 1 and 4 Ground Set-Up Switch
(1-11) Outrigger 2 and 3 Stowage Switch
(1-12) Outrigger 2 and 3 Ground Set-Up Switch
(1-13) Outrigger Combined Stowage Switch
(1-14) Outrigger Combined Ground Set-Up
Switch
(1-15) Outrigger Operation Lamp
(1-16) Home Switch
(1-17) Display Page Change
To Next Page
