M A E D A Mini-Crawler Crane Section 4 – OUTRIGGER COMPONENTS
9/2020 MC285CB-3 4-37
OUTRIGGER COMPONENTS

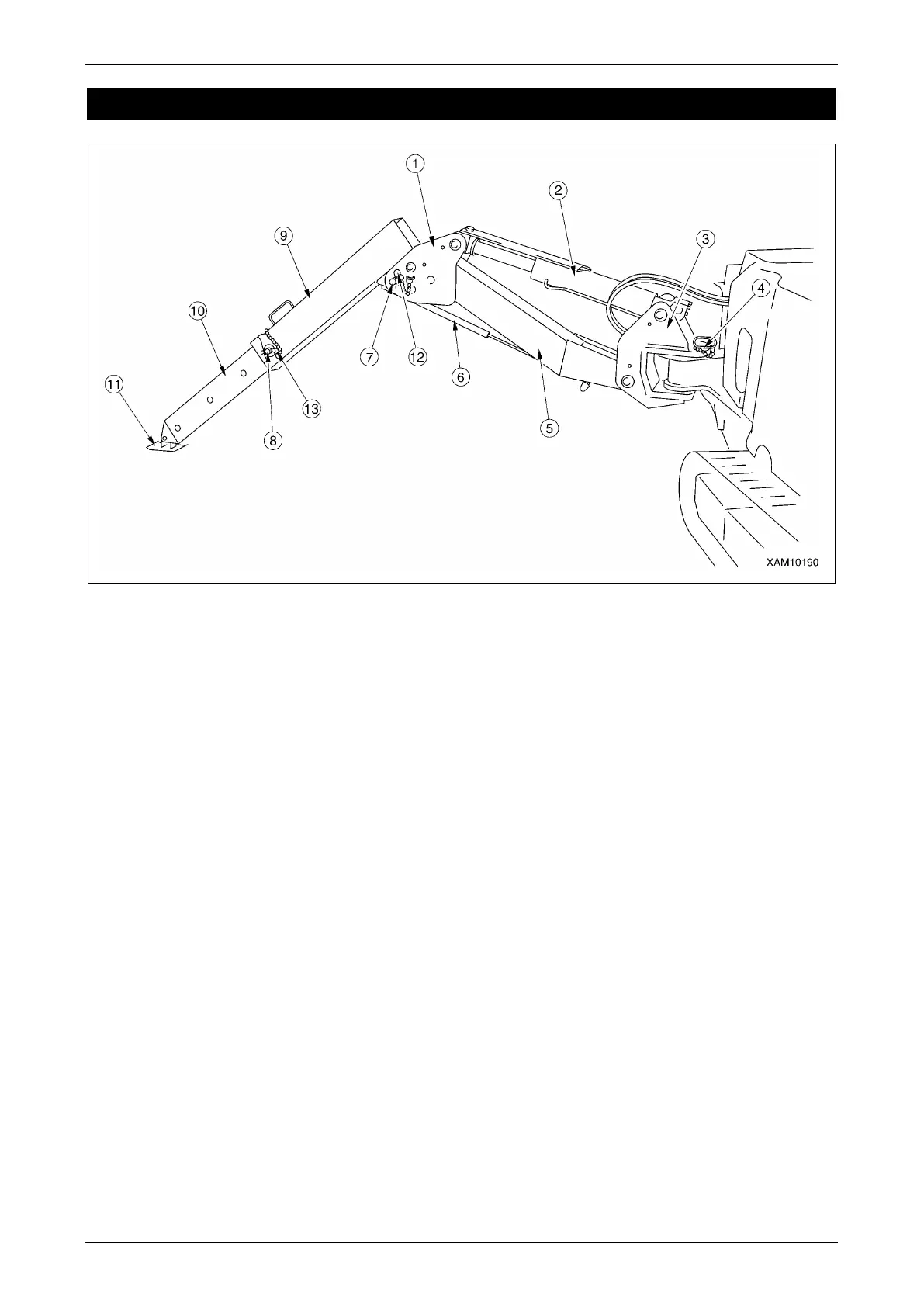

Fig. 4-83
1 - Linkage Bracket
2 - Outrigger Cylinder
3 - Rotary
4 - Rotary Positioning Pin
5 - Outrigger Base Box
6 - Stay (of damper type)
7 - Outrigger Top Positioning Pin
8 - Inner Box Positioning Pin
9 - Outrigger Top Box
10 - Inner Box
11 - Pad
12 - Snap Pin
13 - Snap Pin
