Section 4 – RADIO REMOTE CONTROL SYSTEM COMPONENTS Mini-Crawler Crane M A E D A
4-102 9/2020 MC285CB-3
Receiver Components

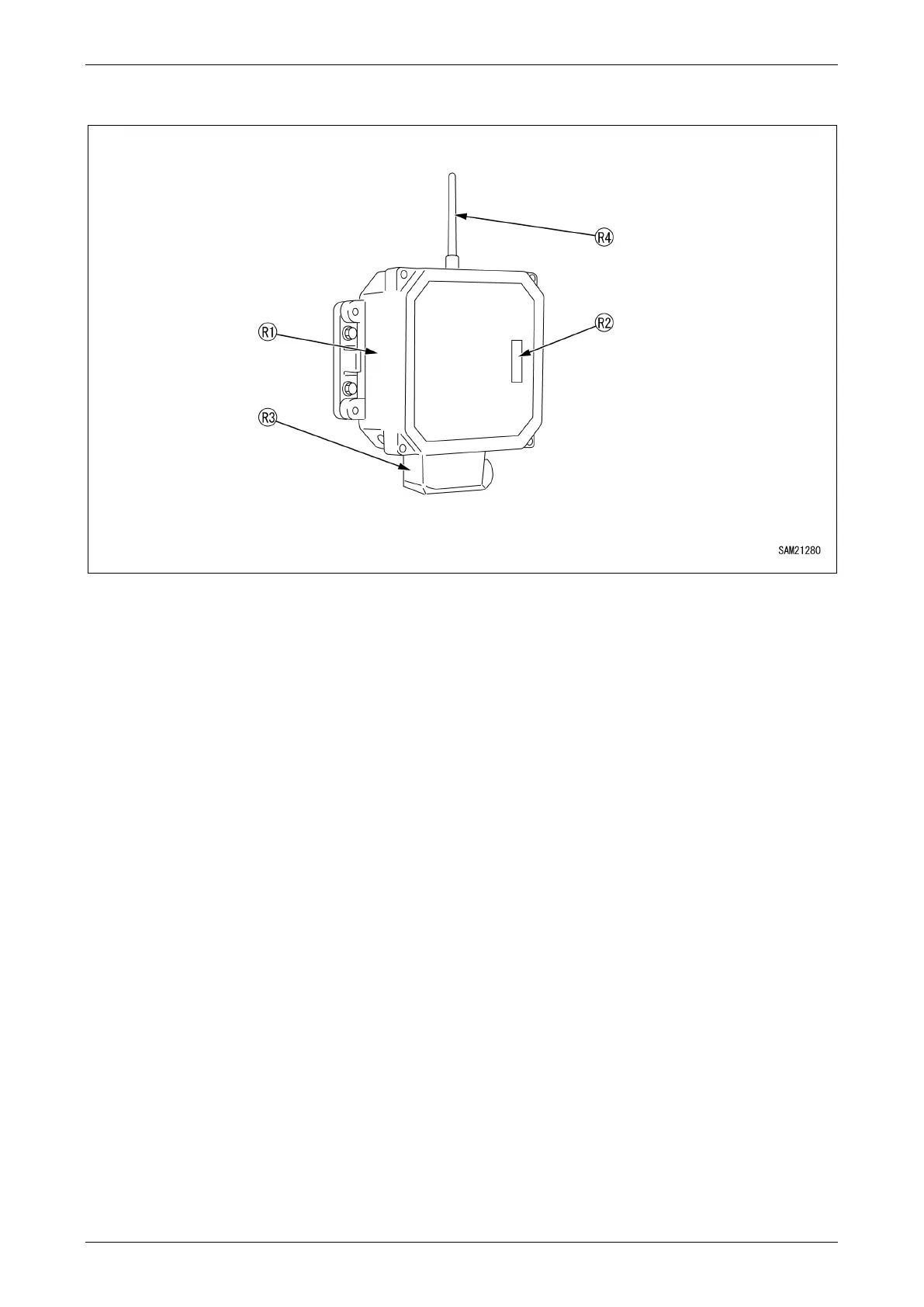

Fig. 4-249
R1 - Control Box
R2 - Monitor LED
R3 - Connector Connection Port
R4 - Antenna
Control Box
The control box contains the receiver and control
devices. Do not dismantle the control box.
