Section 4 –SEARCHER HOOK SAFETY PRECAUTIONS Mini-Crawler Crane M A E D A
4-120 9/2020 MC285CB-3
SEARCHER HOOK SAFETY
PRECAUTIONS
Moment Limiter Settings
DANGER!
• When using the searcher hook, be sure to
correctly set the “searcher hook position for
the actual machine” and the “selector switch
on the monitor”. If work is performed
without making the correct settings, the
numerical value of the moment limiter will
not be displayed correctly, and there is a
risk of serious injury through the machine
becoming damaged or overturning.
• There may be no display for the searcher
hook selector switch due to retrofit etc. of
the searcher hook. In this case, as work will
be necessary to set up the moment limiter to
display the searcher hook selector switch on
the monitor, please contact us or our sales
service agency. If used with no display for
the position selection, there is a risk of
serious injury through the machine
becoming damaged or overturning.

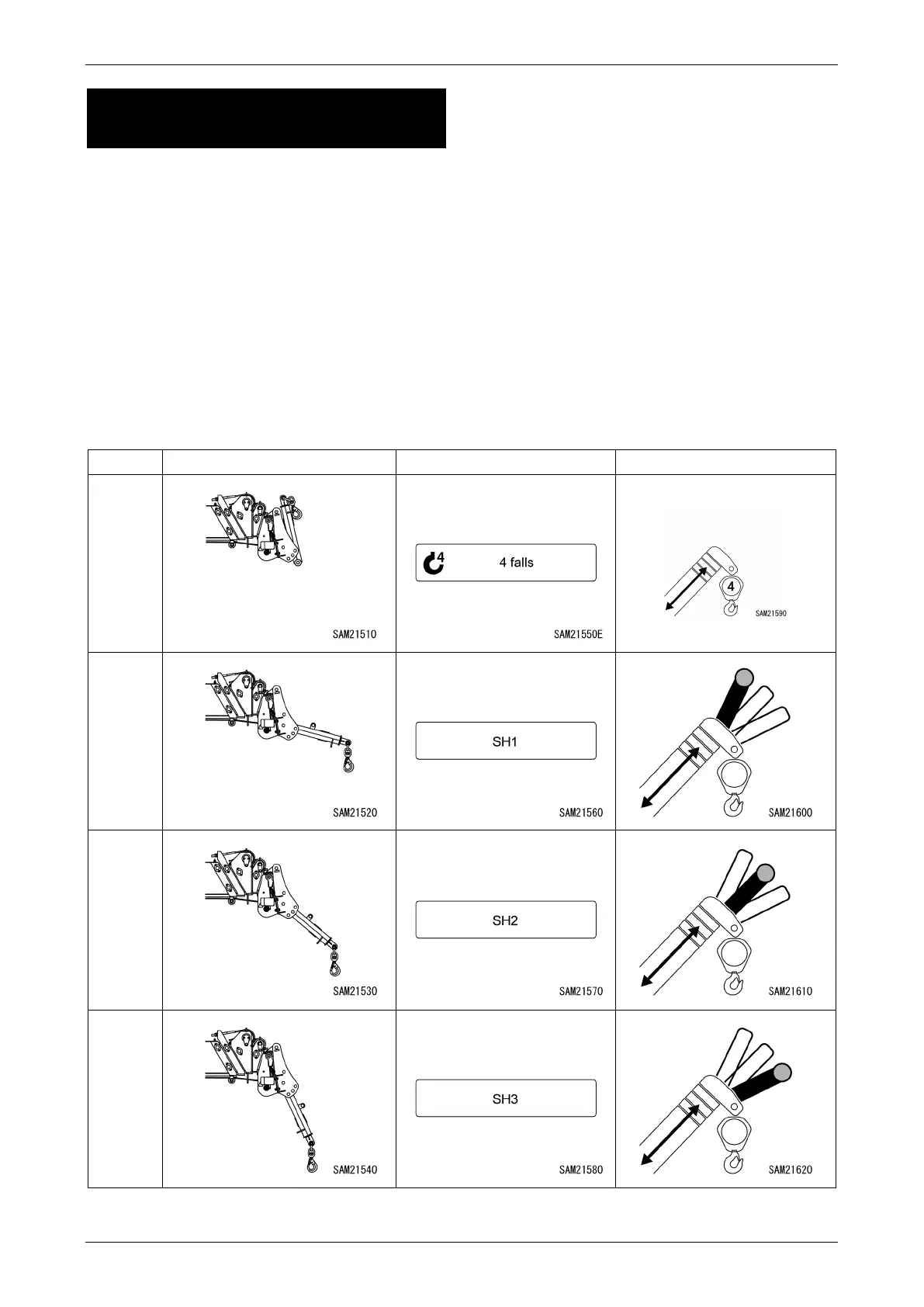

Searcher hook position settings
Actual machine position
Selector switch
Position display
Stowing
SH1
SH2
SH3
