M A E D A Mini-Crawler Crane Section 4 – SEARCHER HOOK MONITOR
9/2020 MC285CB-3 4-123

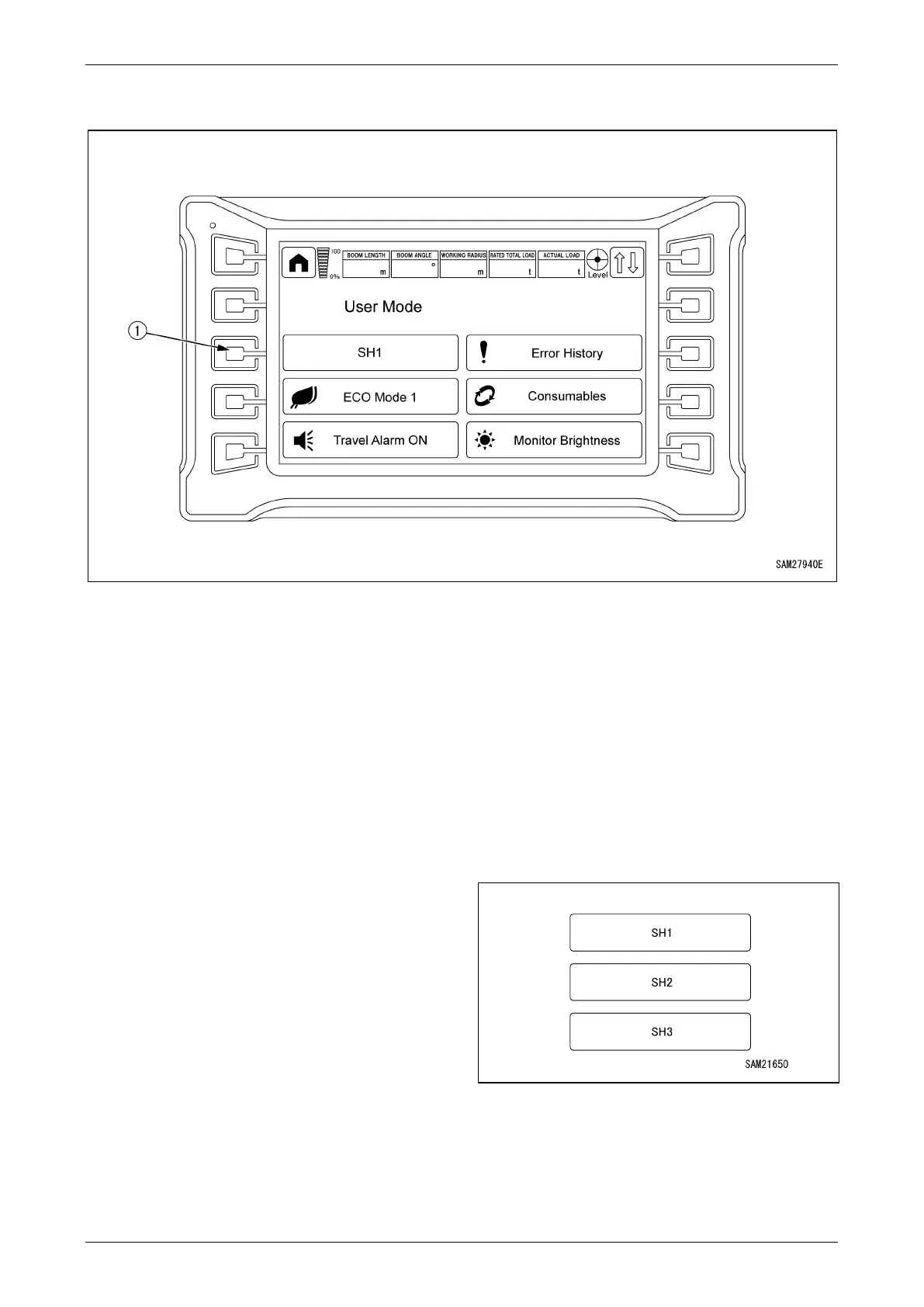

User Mode
Fig.4-305
1 - Hook Hanging Number Selection/Searcher
Hook Position Selection
NOTICE: This section describes only those
indications and operations that differ from normal
use when using a searcher hook. For more
information on indications and switch operations
not described in this section, see “User Mode” on
page 4-17.
Hook Hanging Number
Selection/Searcher Hook Position
Selection
Used when switching the searcher hook position
setting For more information on the actual position
and position switching, see “Moment Limiter
Settings” on page 4-120.
Fig.4-306
To Next Page
