Section 4 – MOMENT LIMITER (OVERLOAD DETECTOR) Mini-Crawler Crane M A E D A
4-76 9/2020 MC285CB-3
Moment Limiter Display

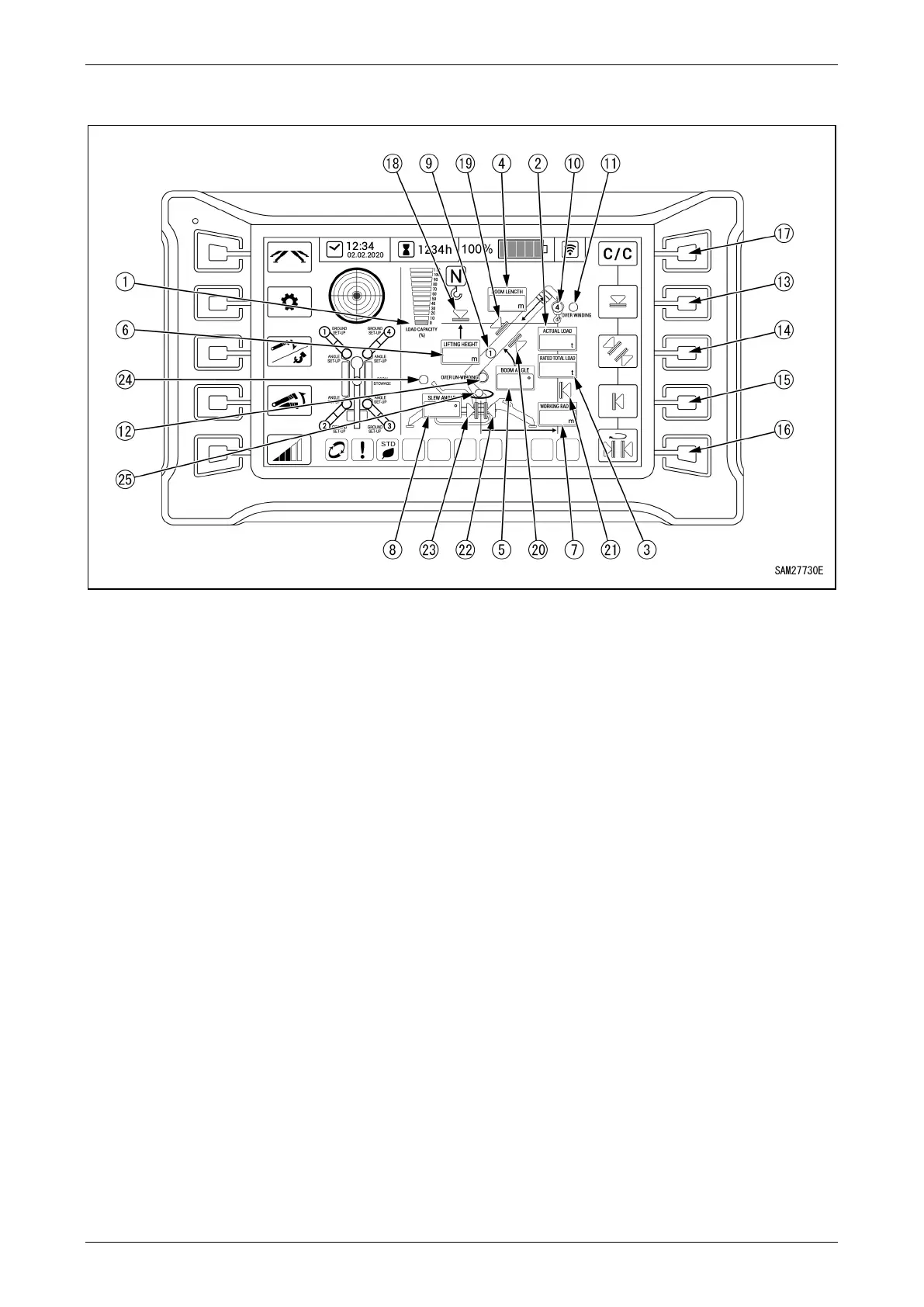

Fig. 4-186
1 - Load Factor Display
2 - Actual Load Display
3 - Rated Total Load Display
4 - Boom Length Display
5 - Boom Angle Display
6 - Maximum Lifting Height above Ground Display
7 - Working Radius Display
8 - Slewing Angle Display
9 - Boom Section Display
10 - Number of Falls Display
11 - Over Winding Display
12 - Over-Unwinding Stop Display
13 - Lifting Height Upper Limit Switch
14 - Boom Angle Upper Limit/Lower Limit Switch
15 - Working Radius Upper Limit Switch
16 - Slewing Angle Limit Switch
17 - Setting Check/Cancelling Switch
18 - Lifting Height Upper Limit Display
19 - Boom Angle Upper Limit Display
20 - Boom Angle Lower Limit Display
21 - Working Radius Upper Limit Display
22 - Clockwise (Right) Slewing Angle Limit Switch
23 - Counterclockwise (Left) Slewing Angle Limit
Switch
24 - Lever detection display
25 - Slew origin detection display
