Section 5 – FUSES Mini-Crawler Crane M A E D A
5-12 9/2020 MC285CB-3
FUSES
NOTICE: Always turn the Starter Switch to the OFF position when checking or replacing a fuse.
Fuses protect electrical components and wires from electrical overload.
• If a fuse is corroded, replace the fuse.
• If a fuse blows, inspect and repair the cause before replacing the fuse.
• Always use a fuse of the same type and capacity when replacing.

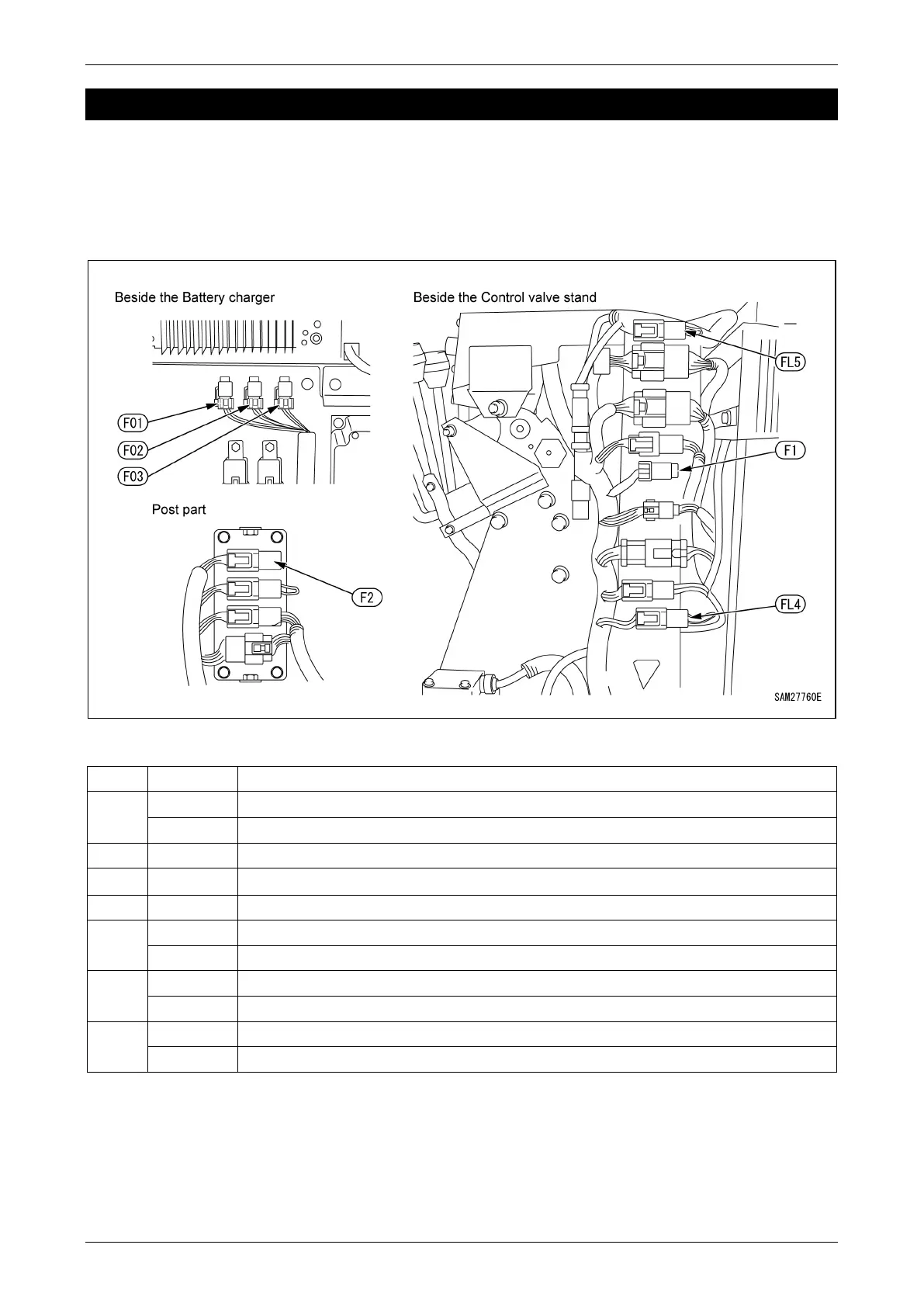

Fig. 5-7
No.
Capacity
Circuit name
F1
2 A Override
2 A Spare
F2
2 A
Working Status Lamp
FL4 0.3 sq Radio Remote control system / Lower power supply
FL5 0.3 sq Upper controller power supply
F01
15 A
Starter switch
15 A
Spare
F02
15 A Monitor / Main controller / Sub controller / Motor controller / BMU power supply
15 A
Spare
F03
10 A
Motor controller / BMU power supply
10 A Spare
