Section 4 – MONITOR Mini-Crawler Crane M A E D A
4-12 9/2020 MC285CB-3

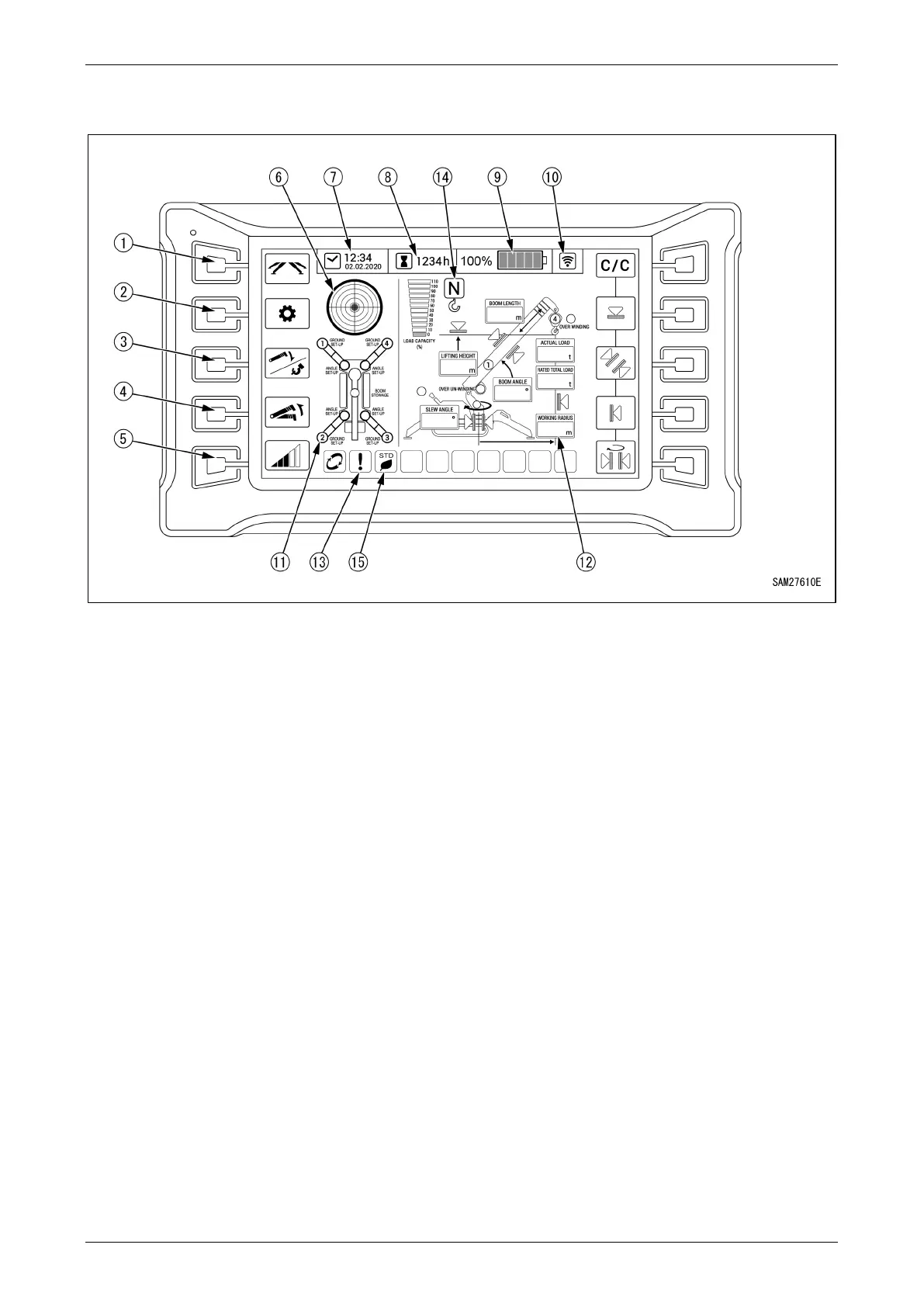

17BHome Screen
Fig. 4-17
1 - Outrigger Mode Switch
2 - User Mode Switch
3 - Hook Stowage/Boom Stowage Switch
4 - Boom Lift Bypass Switch
5 - Motor Speed Adjuster Switch
6 - Level Gauge
7 - Time Display
8 - Hour Meter Display
9 - Battery Level Indicator
10 - Radio Remote Control System Connection
Indication
11 - Outrigger Status Display
12 - Moment Limiter Status Display
13 - Warning Display
14 - Normal/Multi Mode Display
15 - Eco Mode Display
To Next Page
