M A E D A Mini-Crawler Crane Section 4 – MONITOR
9/2020 MC285CB-3 4-11
MONITOR

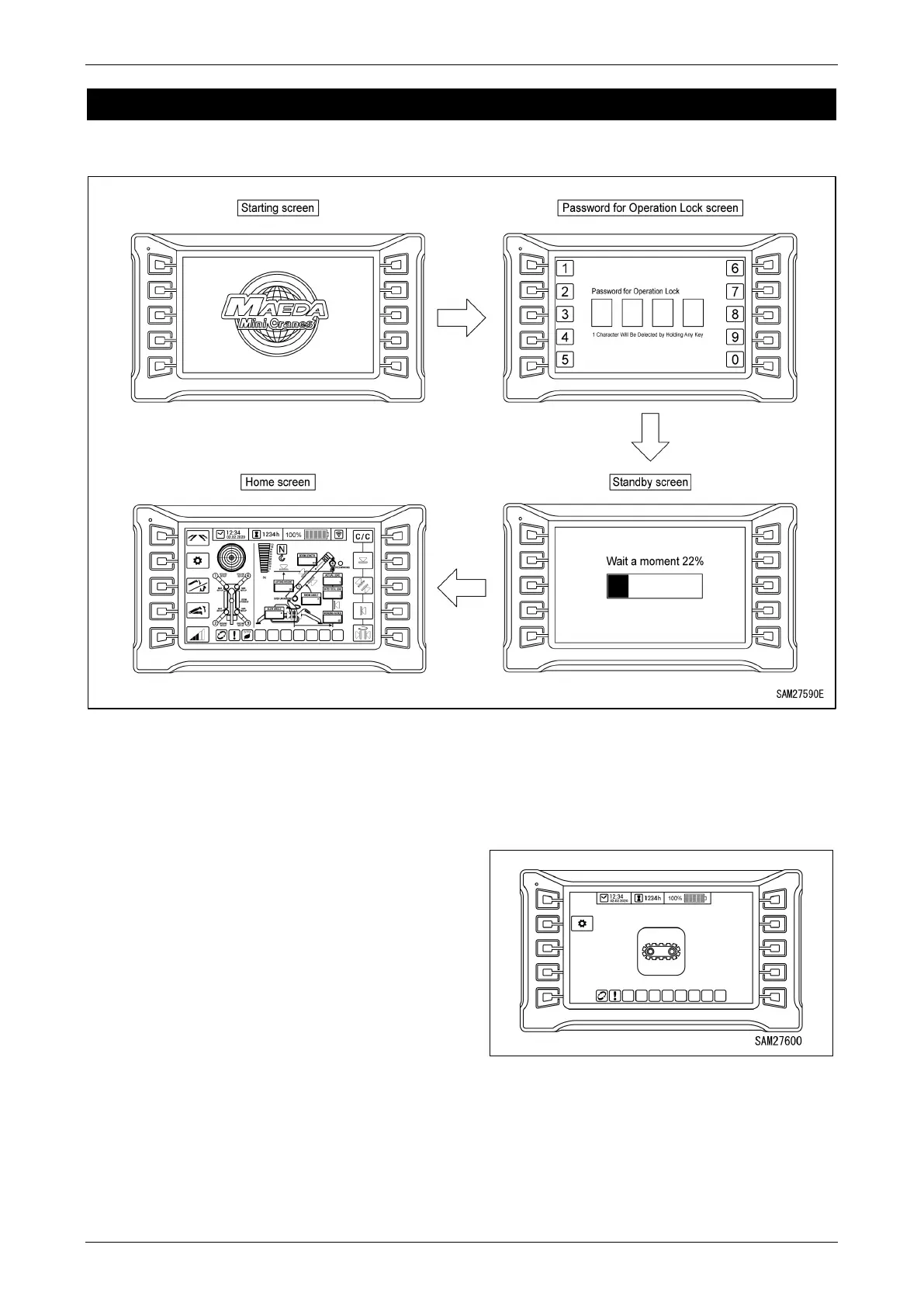

16BStarting Screen
Fig. 4-15
When the Starter Switch is turned “ON”, the
starting screen is displayed.
If operation lock password entry is activated then
after the startup screen is displayed, the
operation lock password screen will display.
Next, a standby screen appears before
switching to the home screen.
When the travel lever is pulled up, the home
screen switches to the travel screen. Only travel
operations are possible on this screen. The
crane and outriggers cannot be operated.
Fig. 4-16
To Next Page
