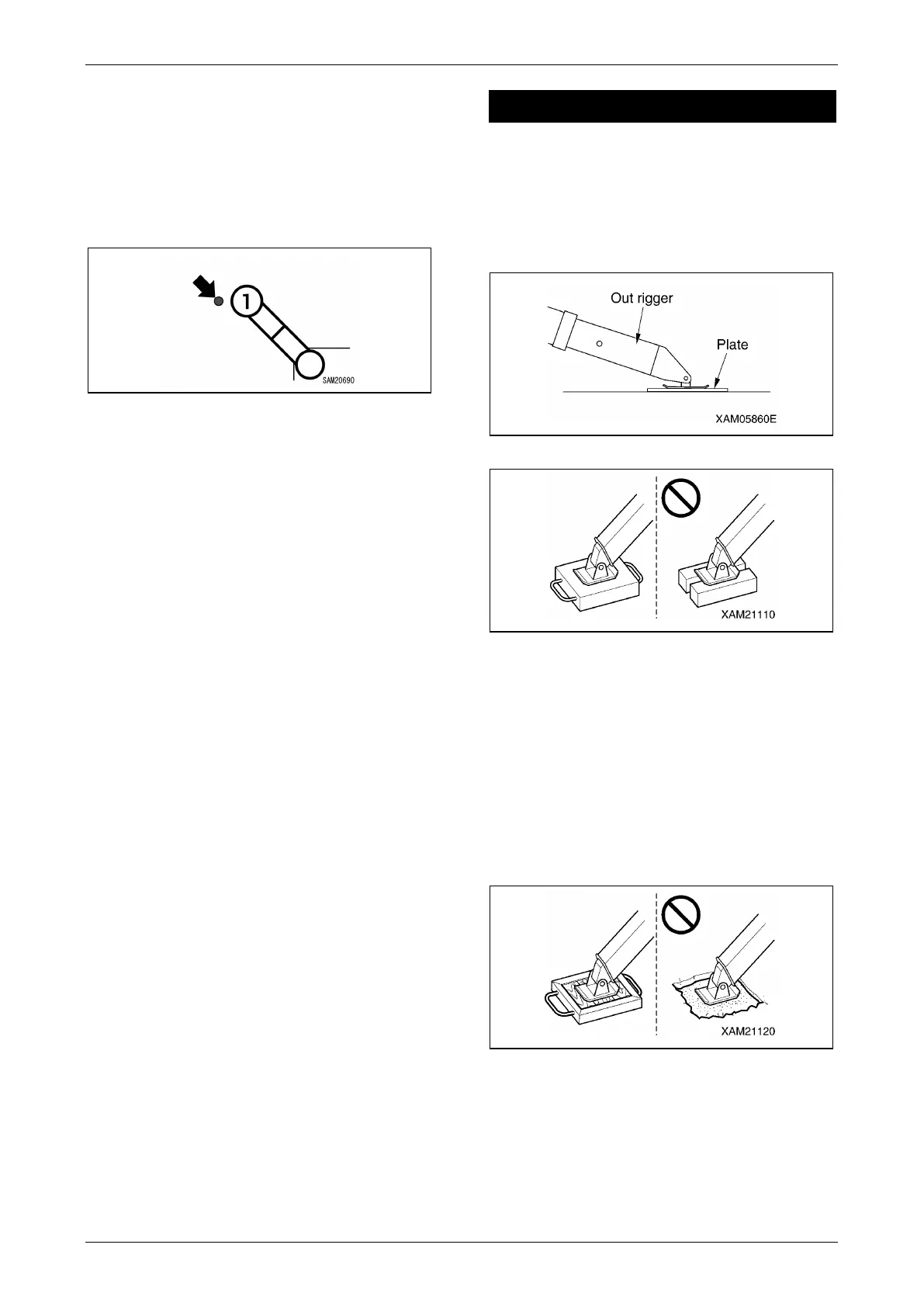

M A E D A Mini-Crawler Crane Section 4 – OUTRIGGER SETTING
9/2020 MC285CB-3 4-43
Outrigger Operation Lamp
The operation lamp next to the outrigger number
illuminates in yellow when the outrigger is
operated.
• Illuminated yellow: Outrigger operating
• Off: Outrigger not operating
Fig. 4-99
39BHome Switch
Press to return to the Home screen.
Display Page Change
Pressing toggles between outrigger individual
operation and combined operation.
OUTRIGGER SETTING
Support Plates
When used on soft ground, place a single plate
of sufficient size with sufficient strength under
the pad of each outrigger to add support and
protect the ground.
Fig. 4-100
Fig. 4-101
To prevent an unstable condition, never set the
outriggers near a road shoulder.
If the ground is not stable or the outriggers sink
during operation, stop crane operations
immediately.
WARNING! Tip Hazard. Do not operate the
machine if the outriggers are not set on
stable ground. Set the outriggers on stable
ground before operating the machine.
Fig. 4-102
