Boom Telescoping Procedure
When the boom is extended for a long period of
time, the boom retracts slightly due to the
temperature change in the hydraulic oil; extend
the boom as needed to adjust.
Move the boom telescoping lever (2) as follows:

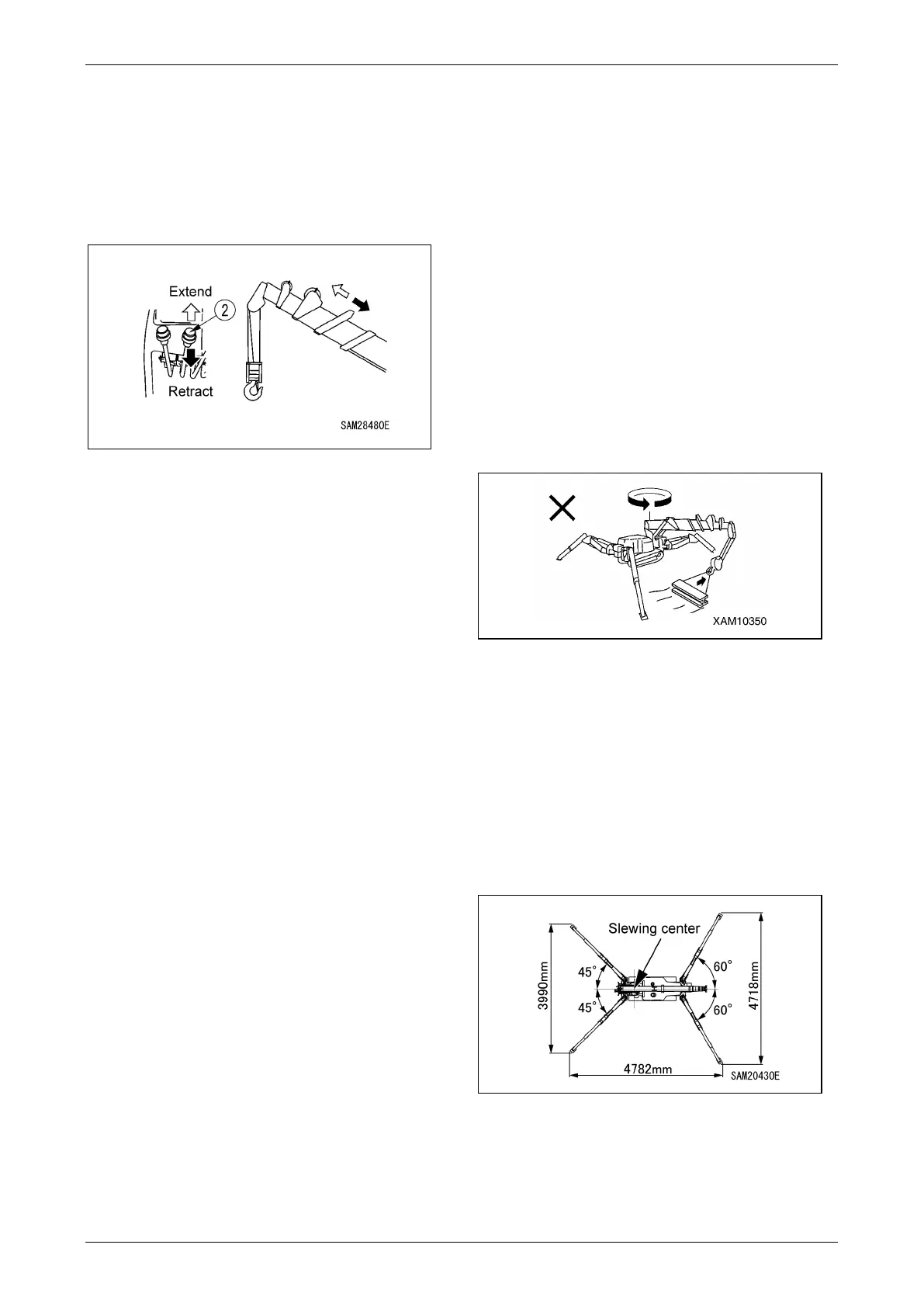

Fig. 4-163
• Extend: Push the lever forward to EXTEND.
• Neutral: Release the lever. The lever returns to
the NEUTRAL position and boom telescoping
stops.
• Retract: Pull the lever toward you to RETRACT.
Adjust the boom telescoping speed with the boom
telescoping lever and the stroke of the accelerator
levers.
Slewing Operation
Safety Precautions
WARNING! Tip Hazard. Do not slew the crane
when overloaded. The machine will not stop
automatically if the crane is overloaded during
crane slewing operation.
WARNING! The following safety messages
address a potential Sudden Movement Hazard
while performing slewing operations:
• Do not pull a load sideways or draw it in
during crane slewing operation. These
conditions may cause unreasonable force
on the machine and uncontrollable
movement of the load.
Fig. 4-164
• Always start a slewing operation slowly and
stop gently. Move the slewing lever slowly
and consistently throughout the operation.
Blow the horn to signal operations are to
begin.
• Always use caution when performing a
slewing operation. Even if the outriggers are
set properly, some directions have lower
stability when performing 360-degree
slewing.
Fig. 4-165
WARNING! Tip Hazard. Never allow a load to
contact an outrigger during a slewing
operation. Always use caution to prevent the
hoisted load from contacting an outrigger.
