OUTRIGGER INDICATORS

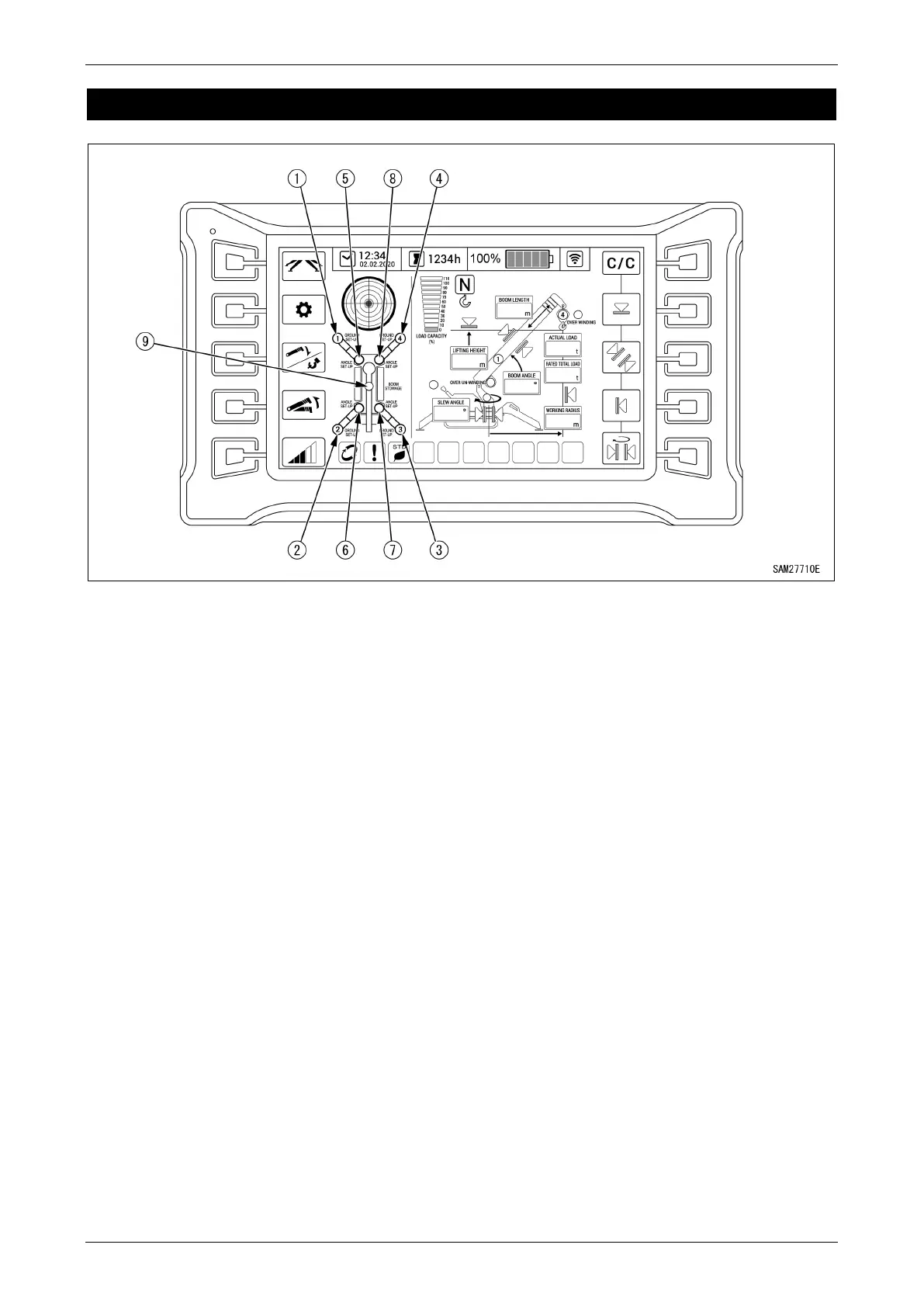

Fig. 4-84
1 - Outrigger Ground Set-Up Light 1
2 - Outrigger Ground Set-Up Light 2
3 - Outrigger Ground Set-Up Light 3
4 - Outrigger Ground Set-Up Light 4
5 - Outrigger Angle Setting Light 1
6 - Outrigger Angle Setting Light 2
7 - Outrigger Angle Setting Light 3
8 - Outrigger Angle Setting Light 4
9 - Boom Stowing Light
