M A E D A Mini-Crawler Crane Section 3 – WORKING RADIUS/LIFTING HEIGHT
9/2020 MC285CB-3 3-19

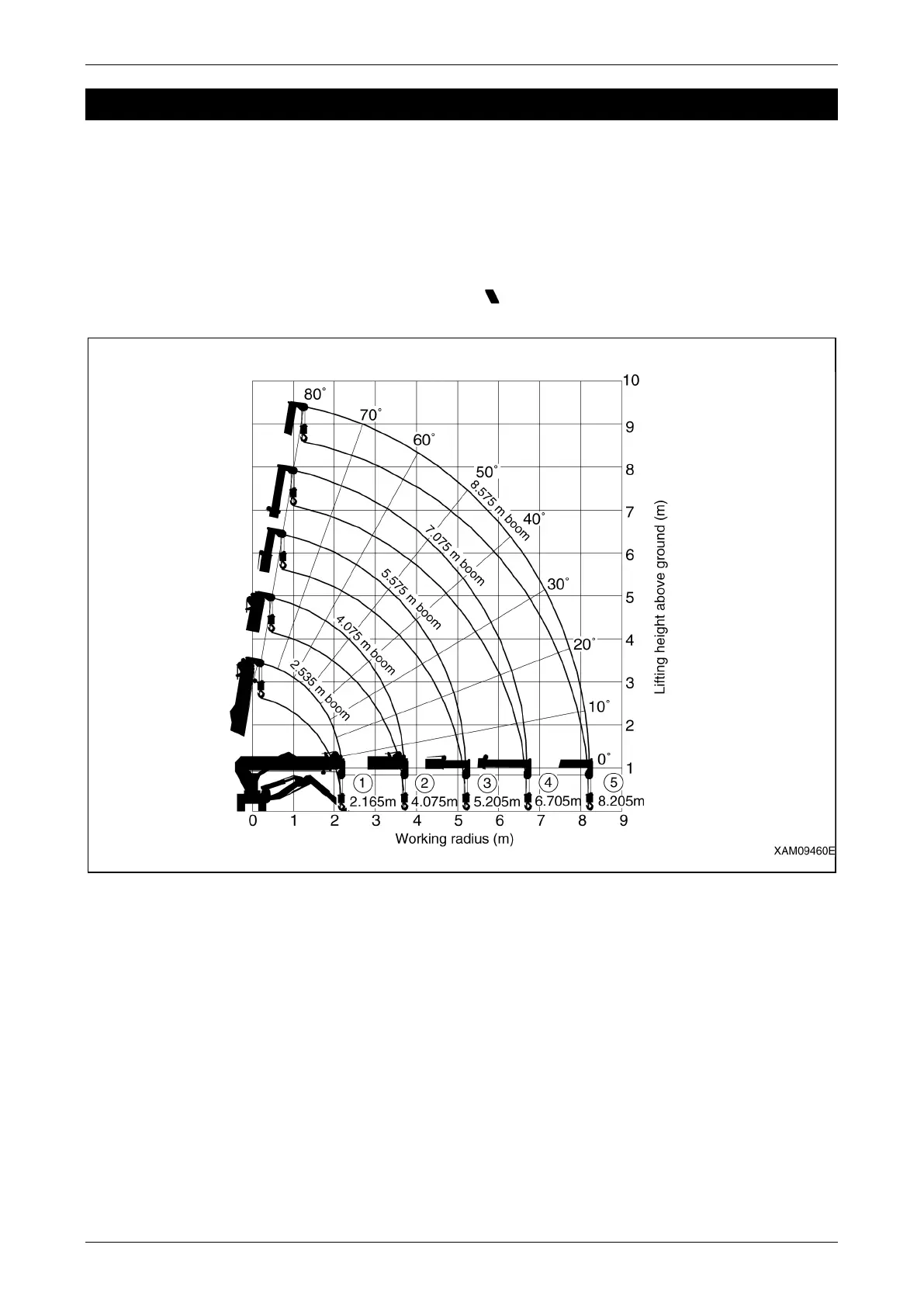

WORKING RADIUS/LIFTING HEIGHT
Standard
This diagram shows the relationship among the working radius of this machine, boom angle and lifting
height above the ground with no object hoisted.
The diagram indicates that there is no deflection in the boom.
The diagram is based on the assumptions that the operation is performed without load and that the
outriggers are set correctly and on a firm and level surface.
The boom (4) represents a condition where half of the “ mark” passes boom (3). For more information,
see "RATED TOTAL LOAD CHARTS" on page 3-10.
Fig 3-18
