M A E D A Mini-Crawler Crane Section 3 –RATED TOTAL LOAD CHARTS
9/2020 MC285CB-3 3-11
Boom Length

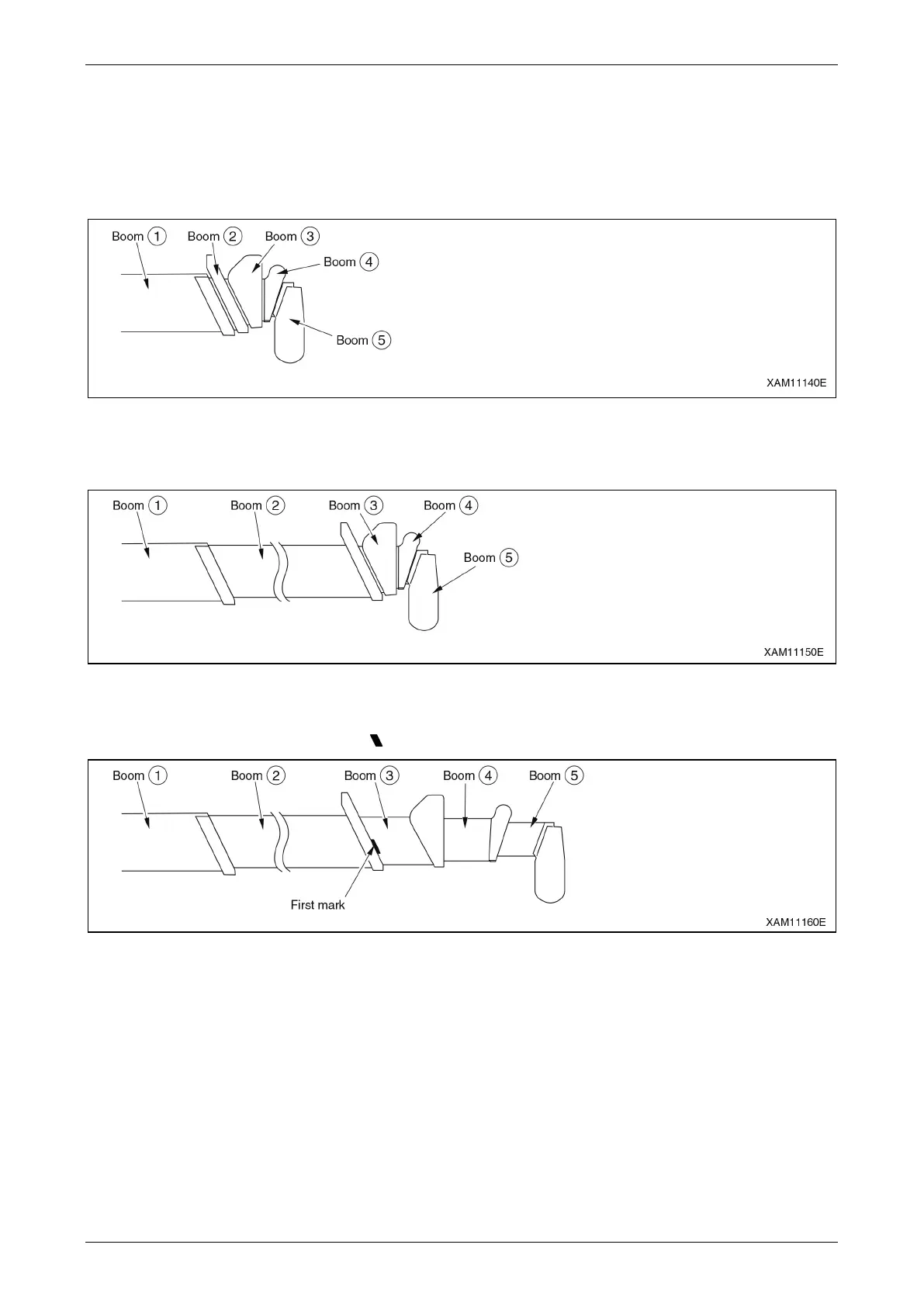

The following figures illustrate the condition of the booms in "RATED TOTAL LOAD CHARTS" on page
3-10: 2.535 m Boom, 2.540-4.075 m Boom, 4.080-5.575 m Boom, 5.580-7.075 m Boom, 7.080-8.575 m
Boom
1) 2.535 m Boom: All the booms are retracted.
Fig. 3-10
2) 2.540-4.075 m Boom: When boom ② begins to extend until boom ② is fully extended with booms ③
+ ④ + ⑤ fully retracted.
Fig. 3-11
3) 4.080-5.575 m Boom: With boom ② fully extended, and when boom ③ begins to extend, until boom
③ is extended until the first mark on boom ③ is visible at the end of boom ②.
Fig. 3-12
