M A E D A Mini-Crawler Crane Section 4 – SEARCHER HOOK OPERATION
9/2020 MC285CB-3 4-125

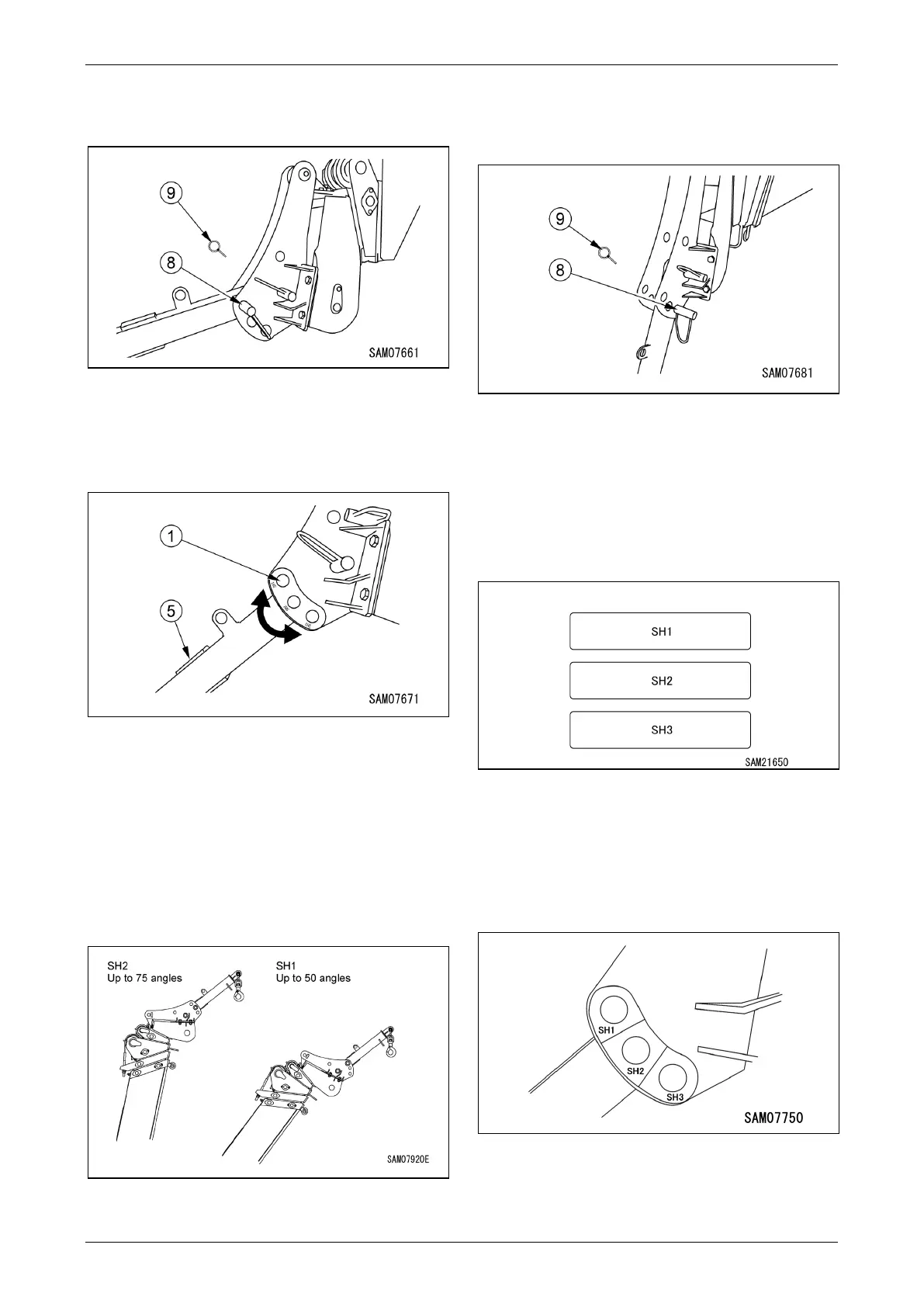

6. Remove lynch pin (9) from the tip of position
pin (8), and remove the position pin.
Fig.4-312
7. Move the E-boom (5) to an angle appropriate
for the work and align the holes of the
E-boom and the bracket (1).
Fig.4-313
DANGER! Depending on the boom angle, the
E-boom and hook may interfere with each
other, potentially leading to serious accidents.
Be sure to adjust to an angle appropriate for
the work.
Do not exceed a boom angle of 50° when the E
boom position is SH1 or a boom angle of 75°
when the E boom position is SH2.
Fig.4-314
8. Insert the position pin (8) through the hole of
bracket, and secure with lynch pin (9) to the
tip of position pin.
Fig.4-315
DANGER! Always secure the position pin with
the lynch pin. If the position pin falls out
during operations, serious injury or damage
to the machine may result.
9. Adjust the position setting on the monitor to
match the actual searcher hook position.
Fig.4-316
DANGER! Do not use the searcher hook if the
actual position does not match the position
setting on the monitor. Serious accidents
such as machine damage may result because
the moment limiter will not operate correctly.
Fig.4-317
