M A E D A Mini-Crawler Crane Section 4 – BATTERY COMPONENTS
9/2020 MC285CB-3 4-5
Battery
A power supply unit for powering the machine.
Battery Charging Port
A port for connecting the power supply cable to
charge the battery.
Power Supply Cable
A cable used to connect the battery charging port
and power supply outlet for charging the battery.
This differs for 100 V and 200 V.

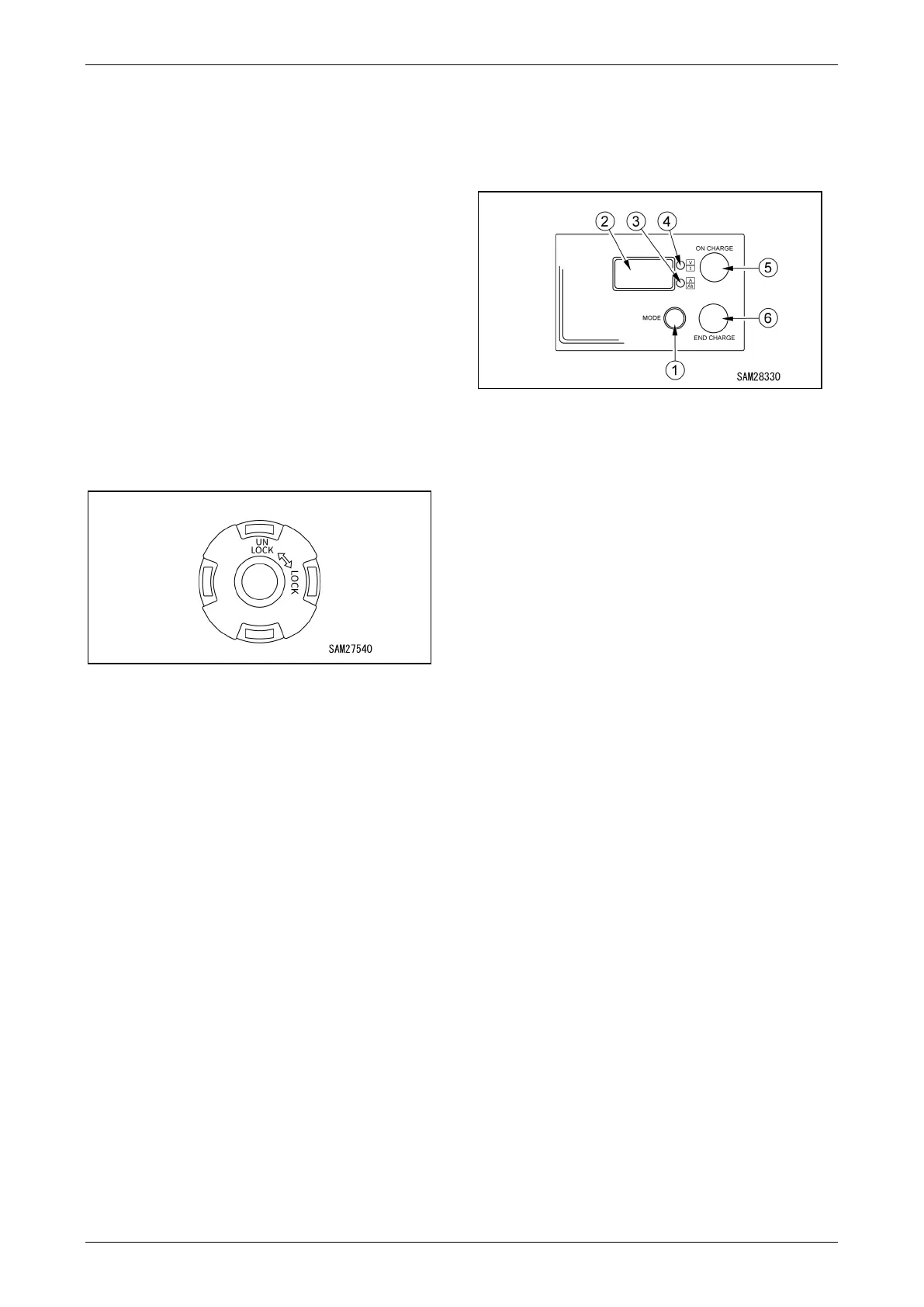

Disconnect Switch
A switch for shutting off the power from the
battery.
• LOCK: Provides power from the battery
• UNLOCK: Isolates the battery
Fig. 4-3
Charger
A device that provides charging power from an
input power source and controls the battery
charging.
Fig. 4-4
The battery includes a display and features the
following functions:
• Mode switch (1)
Press to display information on the display.
• Display (2)
Displays various information.
• Current/Time display selector switch (3)
Press to toggle the display between current and
time.
• Voltage/Capacity display selector switch (4)
Press to toggle the display between voltage and
capacity.
• On Charge lamp (5)
Lights up when charging is in progress.
• End Charge lamp (6)
Lights up when charging is complete.
Electric Motor
A motor that converts electrical energy into
mechanical energy.
Motor Controller
A controller for controlling the electric motor.
