Manitowoc GROVE GMK 3060 - Draining off Water from Fuel Filter 1

Maintenance work on the carrier
7.4 Fuel system
7 - 34 3 302 574 en Maintenance manual
GMK3060
03.11.2017
7.4.1 Draining off water from fuel filter 1
Spare parts
and tools
– Receptacle, approx. 5 l (1.5 gal); à p. 2 - 4.
Prerequisites – The truck crane must be level.
– The engine must not be running and must be secured against unauthor-
ised use;
à p. 2 - 3.

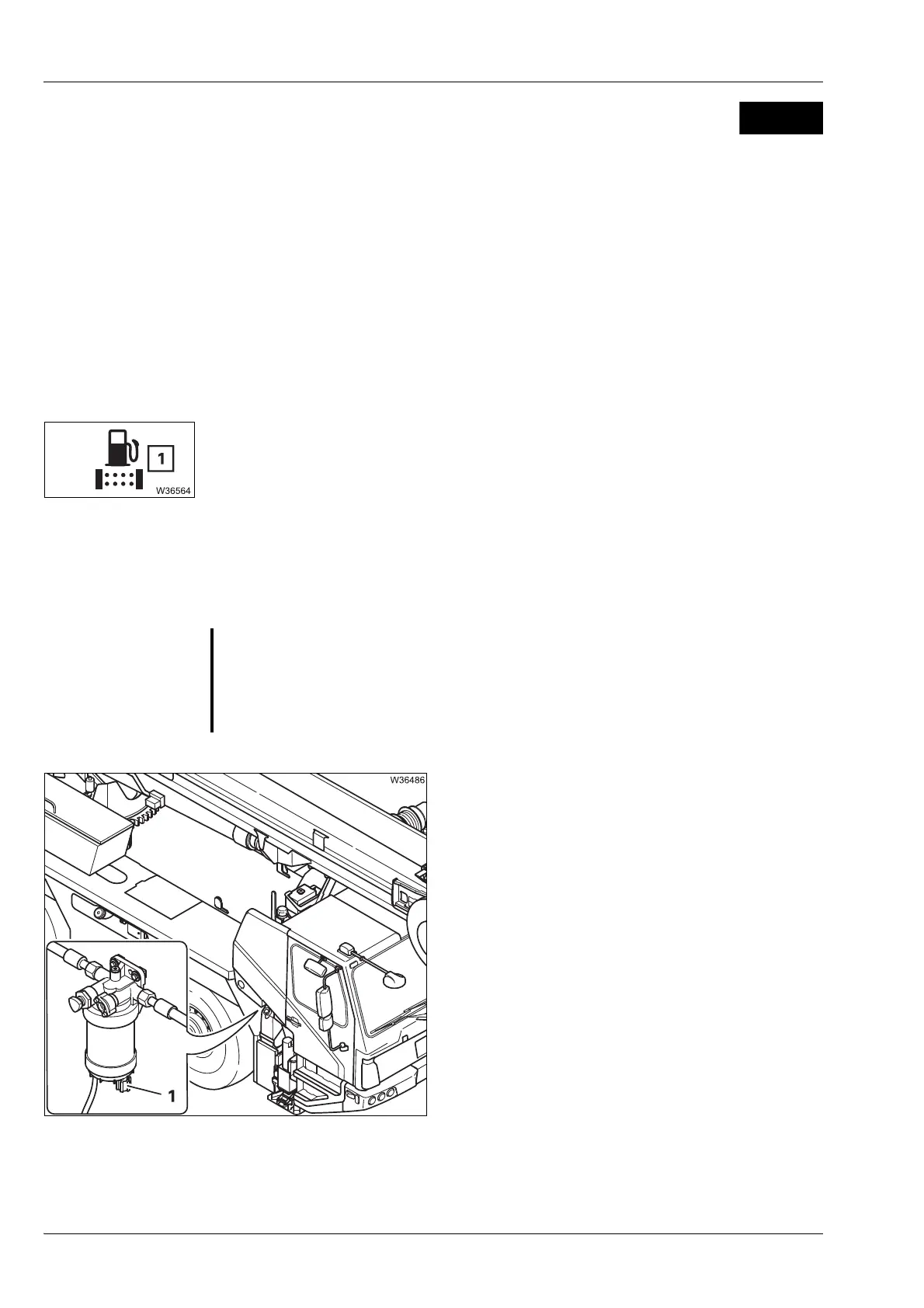

WIF sensor Fuel filter 1 is equipped with a chamber in the lower region that collects the
separated water.
The sensor emits a signal when the chamber is full (WIF = Water in Fuel).
If the lamp (1) on the instrument panel lights up then you must drain the
water from fuel filter 1.
• Where possible, drain the water regularly before the sensor is triggered.
• Note that the quality of the fuel, and thus the water content, can vary
greatly with the site.
• Daily water draining may be necessary in the case of very low quality fuel.
Draining off water
• Place a receptacle underneath the filter.
• Open the valve (1).
• If the consumable that emerges is clean,
close the valve by hand.
• Remove the receptacle and properly
dispose of the drained consumable.
D
O
Risk of environmental damage due to leaking consumables!
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that escape.
Store/dispose of consumable
s and any soaked equipment properly.
Ask about the applicable regulations.
