7.2 Symbols for maintenance work
7.2.1 Instrument panel
Middle • Check the symbols on the instrument panel in the driver's cab each day
before starting operations.
• Carry out a lamp test after switching on the ignition. Check that the lamps
light up briefly. Warning messages are only present when the symbols
are continuously lit;
à Operating Instructions.

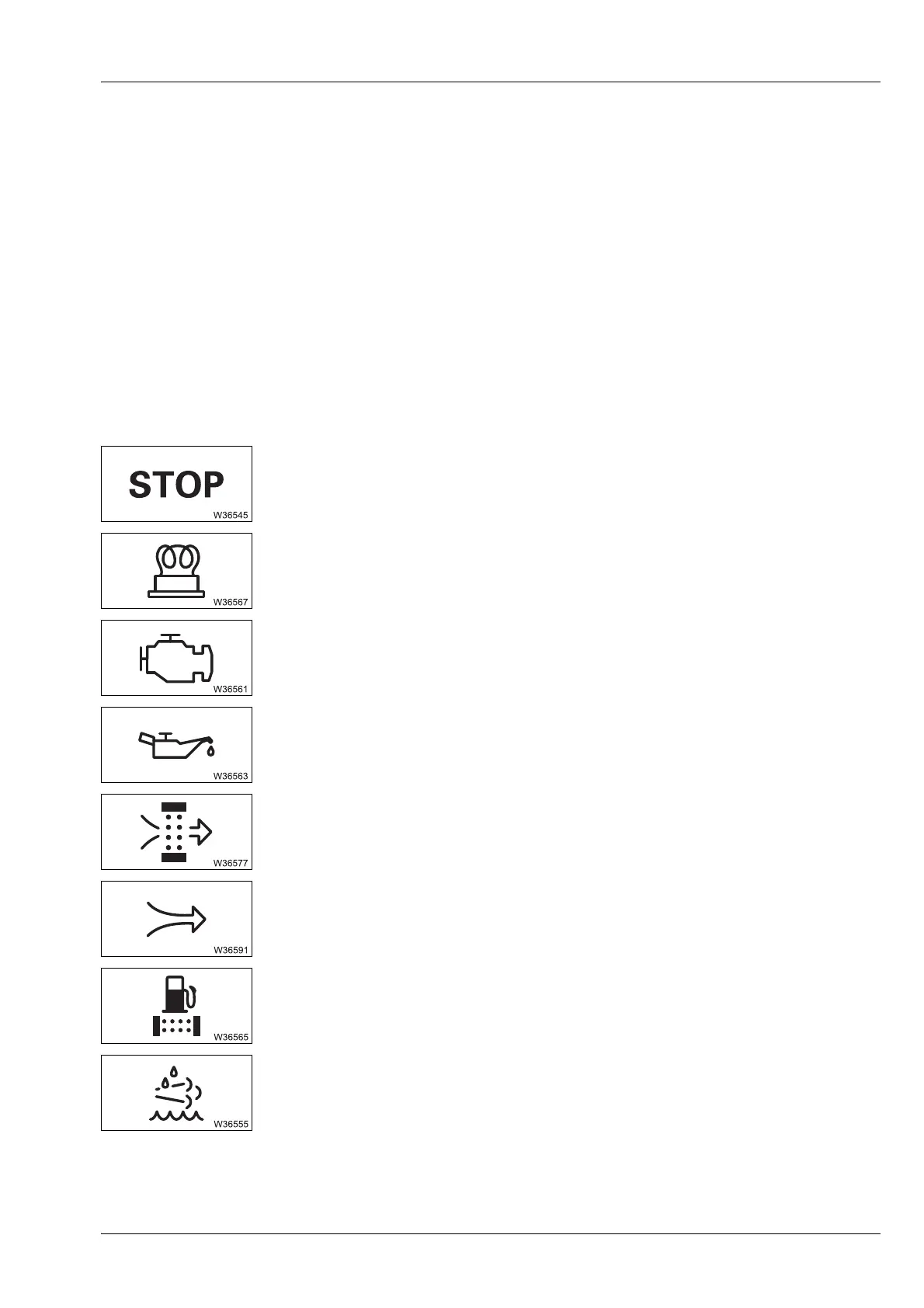

Engine malfunction; à p. 7 - 15.
Engine pre-heating;
à p. 7 - 15.
Engine malfunction;
à p. 7 - 15.
Engine oil pressure;
à p. 7 - 15.
Air filter;
à p. 7 - 18.
Air intake inhibitor;
à p. 7 - 19.
Fuel filter 1;
à p. 7 - 34.
AdBlue system;
à p. 7 - 40.
