Maintenance work on the carrier
7.11 Steering
7 - 76 3 302 574 en Maintenance manual
GMK3060
03.11.2017
7.11.2 Lubricating the drag link supporting plate
The front drag link from the servo steering to the first axle line is brought
over a lubricated supporting plate made of synthetic material.
H
Lubricate the supporting plate every time you clean the truck crane with a
high-pressure device or a steam jet device;
à p. 3 - 2.
Grease, tools
– Brush or spatula.
Prerequisites – The engine must not be running and must be secured against unauthor-
ised use;
à p. 2 - 3.
– The ladder under the driver's cab is removed;
à Operating Instructions.

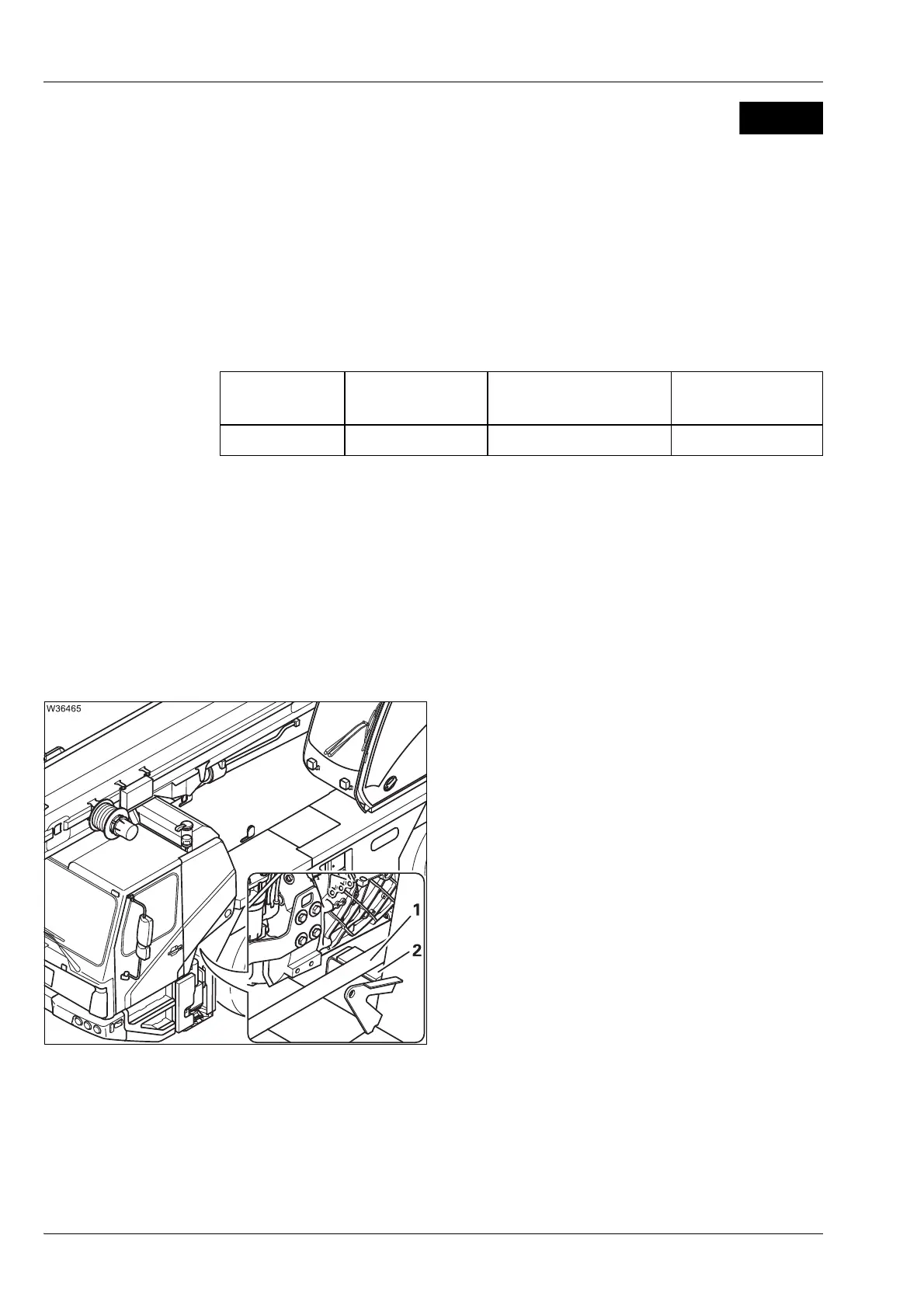

Greasing
• Remove any old grease from the drag
link (1) and the supporting plate (2).
• Apply new lubricating grease to the sup-
porting plate using a brush or a spatula.
Checking
If you notice grinding noises of the drag link at a steering angle:
• Lubricate the supporting plate.
M 1
Lubricating
grease
Designation
to DIN 51502
Specification
Classification
GROVE part no.
Grease KP - 1K - 50 DIN 51825 03233369
