Maintenance work on the carrier
7.7 Axle lines
7 - 58 3 302 574 en Maintenance manual
GMK3060
03.11.2017
7.7.6 Lubricating the drive shafts in the axle lines
H
Check all drive shafts to see if they have grease nipples.
Drive shafts with grease nipples must be serviced, drive shafts without
grease nipples are maintenance-free.
Grease, spare
parts, tools
– G
rease gun from the tool set.
Prerequisites – The truck crane must be raised on outriggers or parked over an inspection
pi
t.
– The engine must not be running and
must be secured against unauthor-
ised use;
à p. 2 - 3.
– The wheels must be turned as far as they will go, so that the lubricating
nipples on the sides of the final drives are more easily accessible.
Greasing
Drive shafts (2) are fitted only to the 6 x 6 x 6
drive.

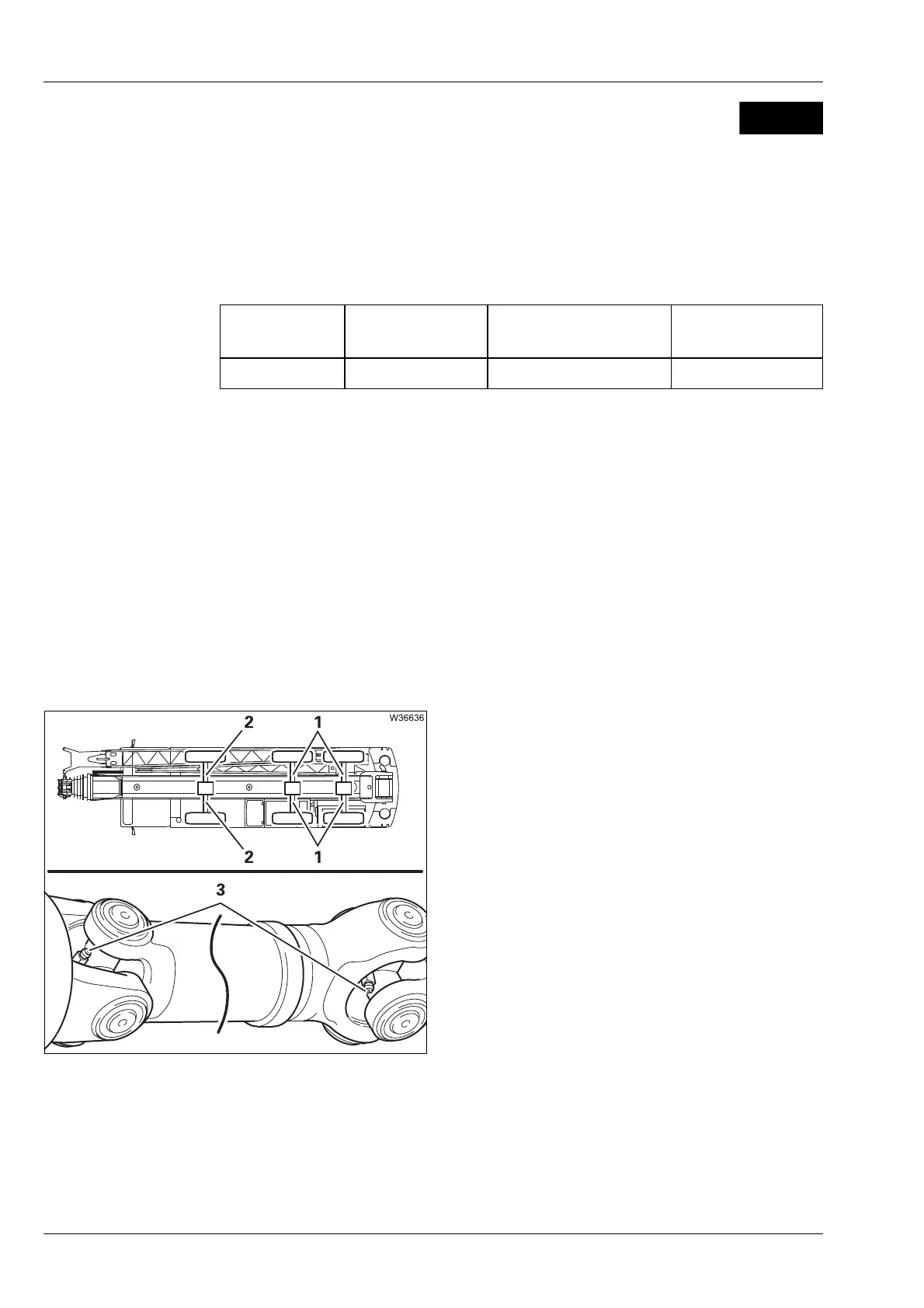

• Check which drive shafts (1) and (2) have
lubricating nipples (3).
• Clean the grease nipples (3).
• Inject grease into the grease nipples until
grease escapes from the bearing points.
Do not inject grease with excessive force,
otherwise the lip seals may be damaged.
• Remove any grease that has escaped.
M 1
Lubricating
grease
Designation
to DIN 51502
Specification
Classification
GROVE part no.
Grease KP - 1K - 50 DIN 51825 03233369
