Maintenance work on the carrier
7.7 Axle lines
03.11.2017
Maintenance manual 3 302 574 en 7 - 57
GMK3060
Draining oil
• Change the oil on all final drives in the same
way.

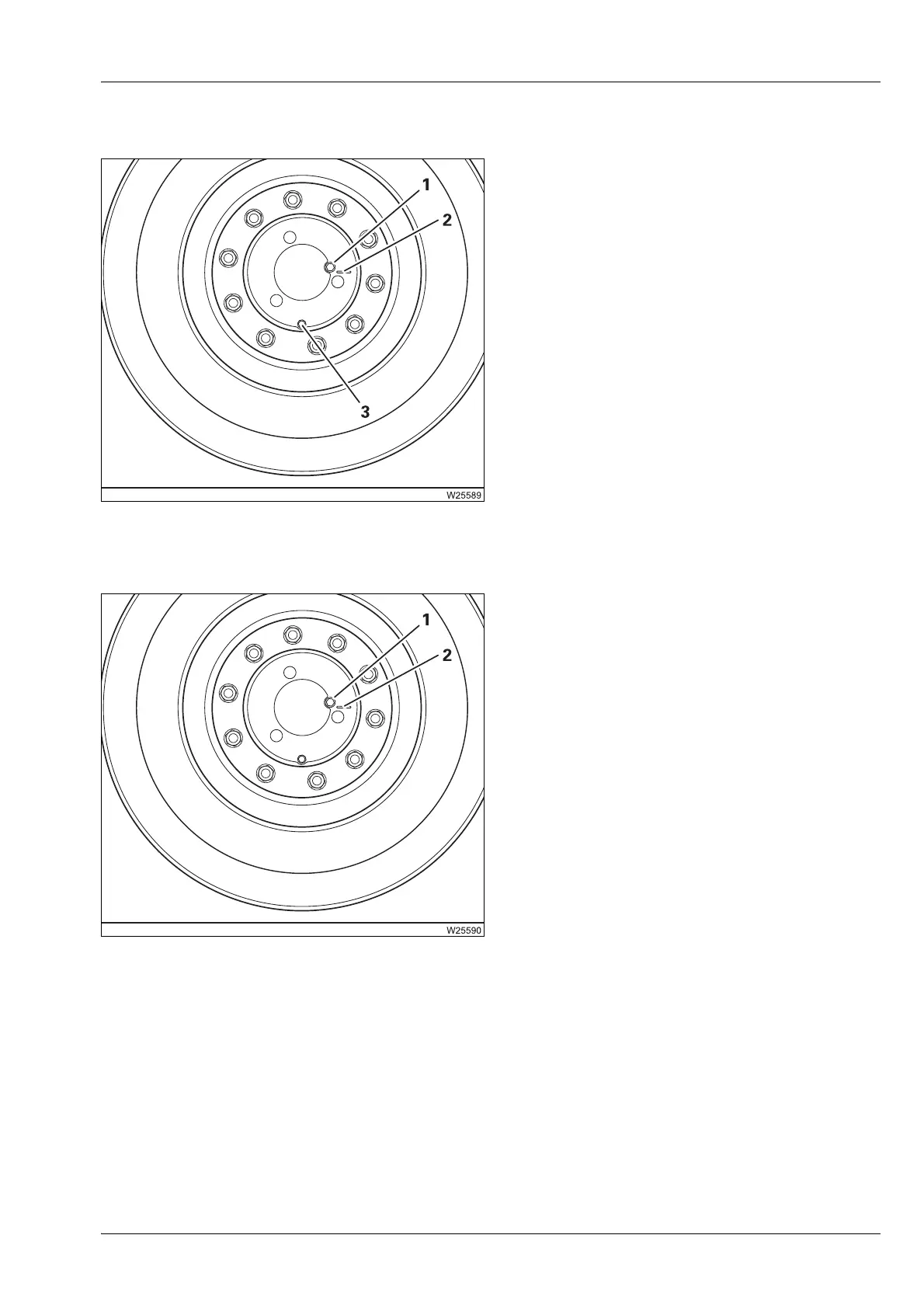

• Turn the wheel until the marking (2) is hori-
zontal and to the right – the screw (3) points
downwards.
• Use a drain channel and place a container
under the screw (3).
Unscrew the drain plugs (1) and (3) and allow
the oil to drain.
• Fit a new gasket and tighten the screw (3).
Topping up the oil
• Check that the marking (2) is still horizontal.
• Fill the oil up to the lower edge of the open-
ing (marking 2).
• Fit a new gasket and tighten the screw (1).
