Maintenance work on the carrier
7.3 Engine
03.11.2017
Maintenance manual 3 302 574 en 7 - 17
GMK3060
7.3.2 Topping up the oil
Information on the prescribed oil specification; à Engine manufacturer’s
documentation
.
Oil
Prerequisites – The truck crane must be level.
– The engine must not be running and must be secured against unauthor-
ised use;
à p. 2 - 3.
Topping up the oil • Tilt the driver's cab forwards; à Tilting and lowering the driver's cab,
p. 7 - 3.

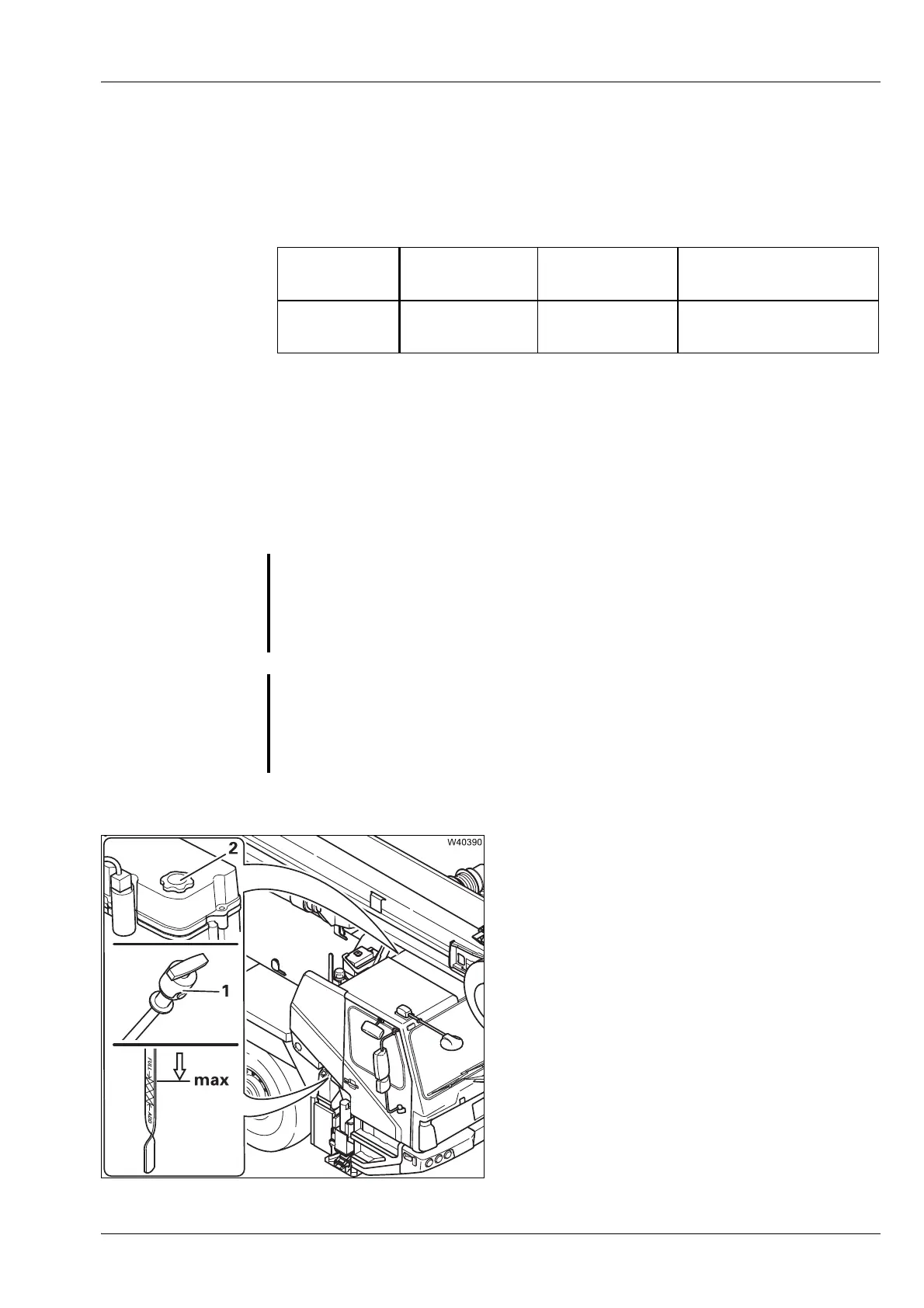

• Add oil through the filler neck (2) up to the
Max. mark.
• Close the filler neck with the cover.
• Insert the dipstick (1) into the dipstick tube
after checking the oil level.
• Lower the driver's cab; à Tilting and
lowering the driver's cab
, p. 7 - 3.
Engine oil
in litres (gal)
Designation
to DIN 51502
Specification
Classification
GROVE part no.
26.5 (7.0) HD - CD CES 20081
Cummins
SAE 15 W-40
04162428
S
Risk of damage to the engine if the oil level is too high!
Do not overfill with oil; the oil level must not be higher than the max. mark
(arrow marking). Drain off oil if necessary;
à Engine manufacturer’s docu-
mentation
.
G
Risk of burns when the engine is hot!
During operation, the engine and add-on parts reach temperatures up to
400 °C (750 °F). Wear appropriate protective gloves and be careful not to
touch hot parts.
