7.12 Compressed air system
03.11.2017
Maintenance manual 3 302 574 en 7 - 79
GMK3060
7.12 Compressed air system

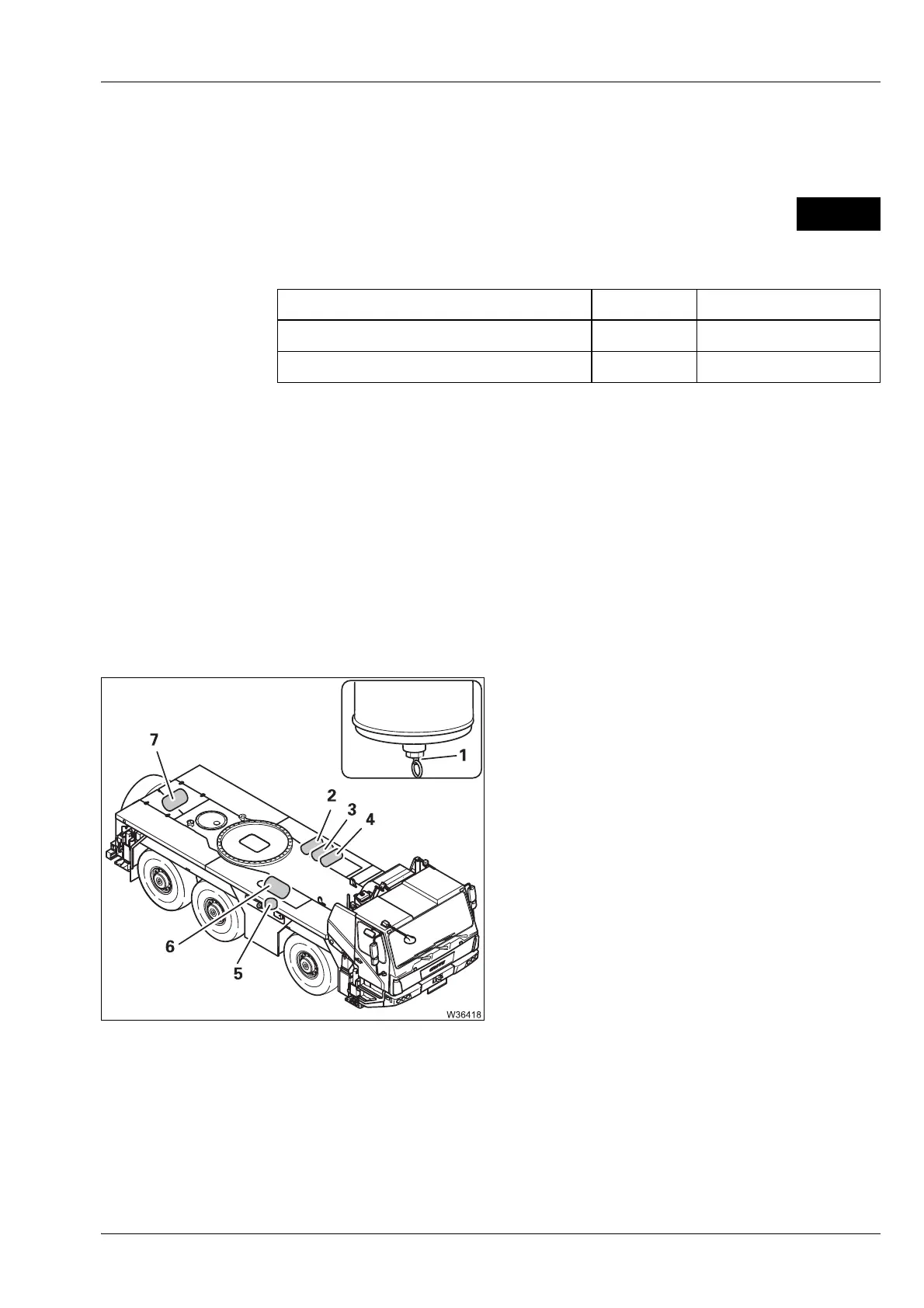

7.12.1 Draining water from the compressed air system
Spare parts
and tools
Prerequisites – The truck crane must be raised on outriggers or parked over an inspection
pit.
– The compressed-air supply is completely full;
à Operating Instructions.
– The engine must not be running and must be secured against unauthor-
ised use;
à p. 2 - 3.
Draining water
from the com-
pressed air system
• Actuate the valves (1) on the air reservoirs (2)
to (7).
If a great deal of moisture escapes
• Have the compressed air drier checked or
replaced by
Manitowoc Crane Care or an
authorised GROVE dealer or your qualified
repair crew.
W
Designation Quantity GROVE part no.
Valve 6 01570750
Gasket 22 x 27 Cu DIN 7603 6 00117142
