8.4 Slewing gear
03.11.2017
Maintenance manual 3 302 574 en 8 - 15
GMK3060
8.4 Slewing gear
8.4.1 Oil level check – Slewing gear transmission
Spare parts
and tools
Prerequisites – The truck crane is horizontal and is in on-road mode;
à Operating
Instructions
.
– The engine must not be running and must be secured against
unauthorised use;
à p. 2 - 3.
Check the oil level Always check the oil level prior to using the crane.

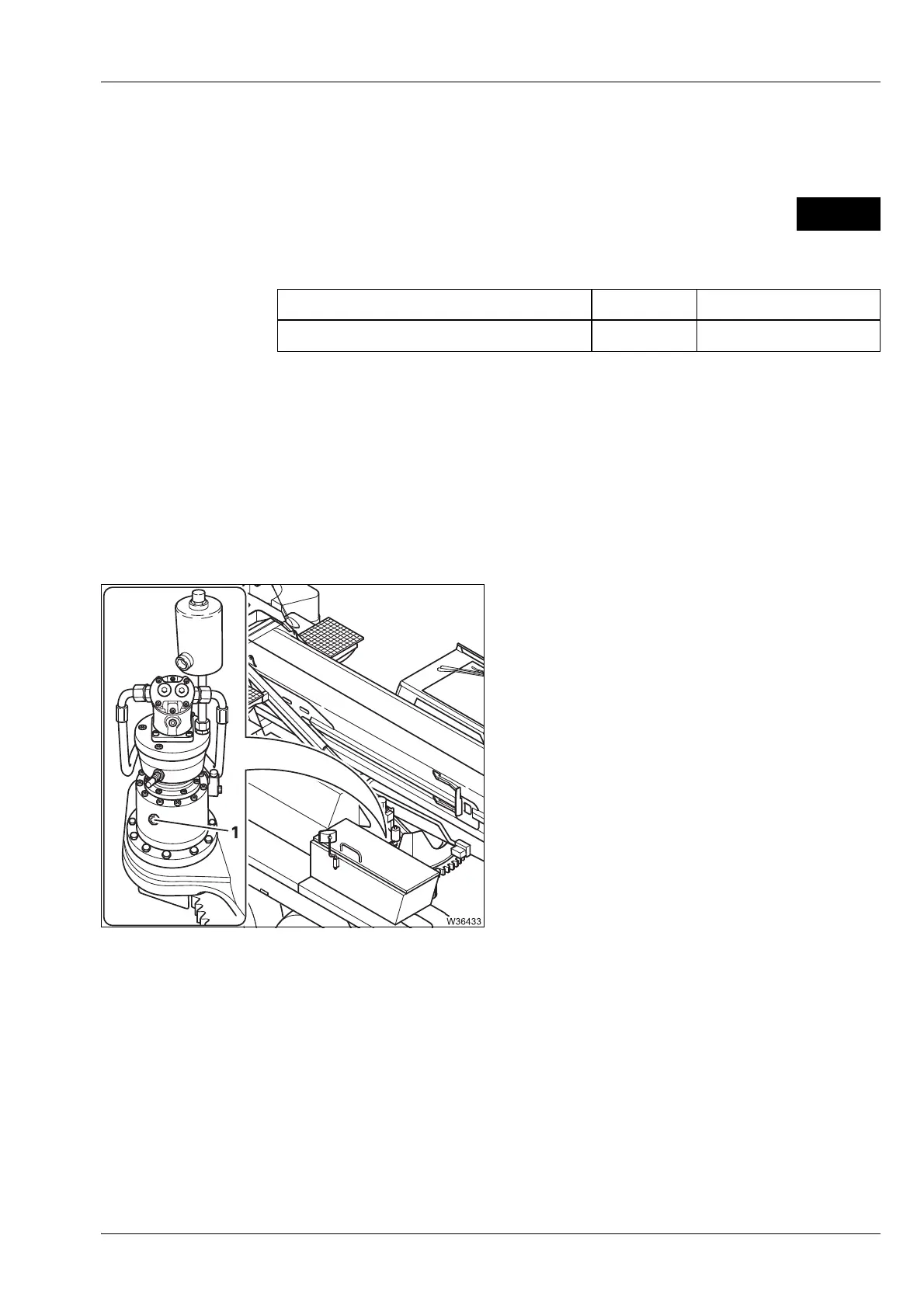

• Check that oil is visible in the sight glass (1).
If the oil level is too low
• Top up with oil; à p. 8 - 19.
W
Designation Quantity GROVE part no.
Gasket 10 x 14 Cu DIN 7603 1 00117125
