Maintenance work on the carrier
7.6 Transmission
7 - 48 3 302 574 en Maintenance manual
GMK3060
03.11.2017
Check the oil level

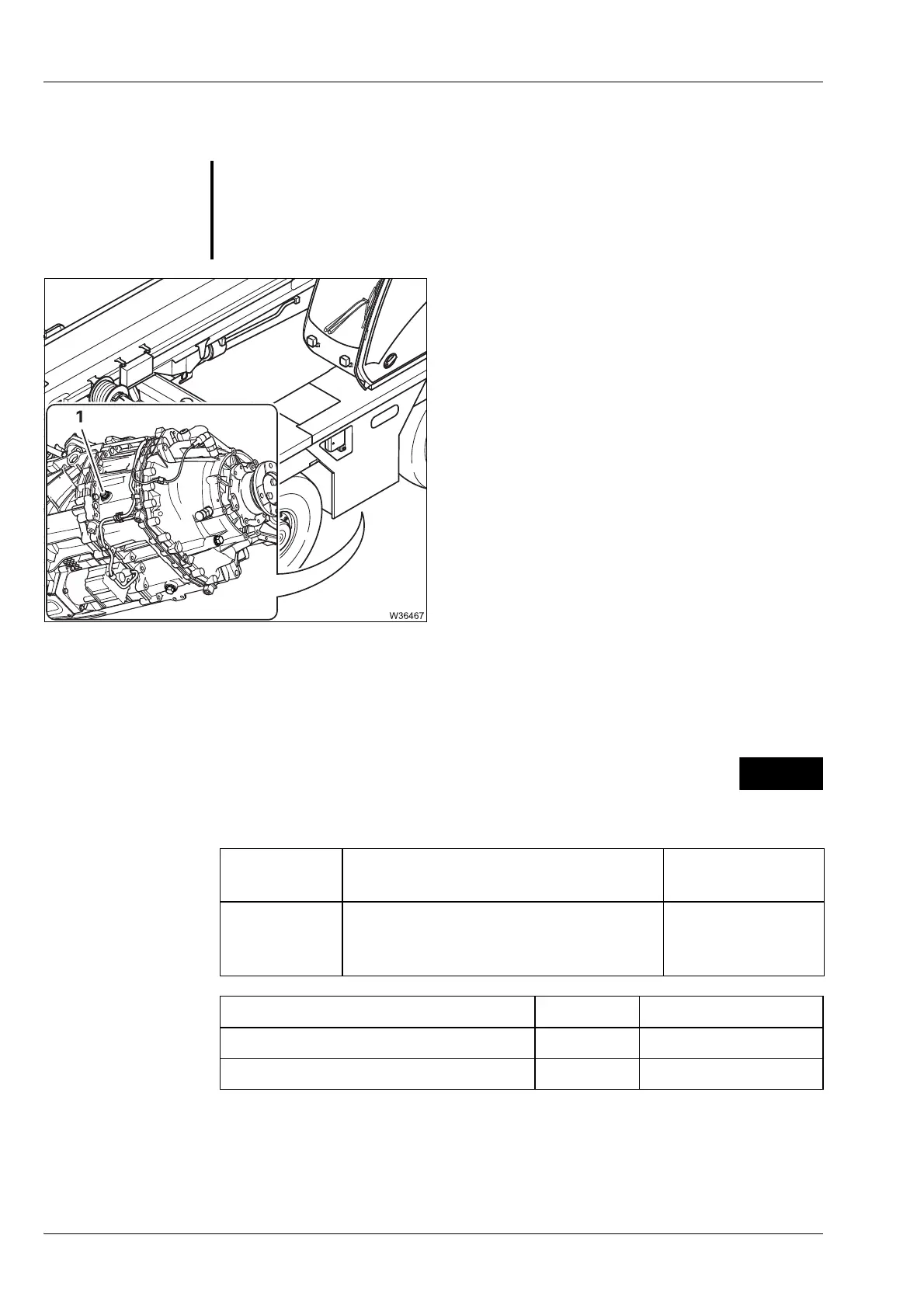

• Unscrew the screw (1).
• Check the oil level; it must reach to the lower
edge of the opening.
• Replace the O-ring and tighten the drain
plug – torque 60 Nm (44.2 lbf ft).
If the oil level is too low
• Top up with oil; à p. 7 - 50.
7.6.3 Changing the oil
Oil, spare parts
and tools
– Receptacle, approx. 15 l (4 gal);
à p. 2 - 4.
– Torque wrench for a torque of 60 Nm (44.2 lbf ft).
S
Risk of damage to the transmission!
If the oil level is too low or too high, this can lead to malfunctions and
damage to the transmission. Check the oil level at the correct interva
ls.
Wait until the oil cools down (below 40 °C (104 °F)).
Y 2
Gear oil
in litres (gal)
Specification
Classification
GROVE part no.
12.5 (3.3) ZF TE-ML02
Ecofluid M ZF; synthetic,
Do not mix this with mineral oil!
03325153
Designation Quantity GROVE part no.
Gasket 22 x 27 Cu DIN 7603 2 00117142
O-ring 1 04155708
