Manitowoc GROVE GMK 3060 - Checking the Oil Level; Hoists

Maintenance work on the superstructure
8.3 Hoists
03.11.2017
Maintenance manual 3 302 574 en 8 - 9
GMK3060
8.3 Hoists
8.3.1 Checking the oil level
Spare parts
and tools
Prerequisites – The truck crane is horizontal and is in on-road mode;
à Operating
Instructions
.
– The engine must not be running and must be secured against
unauthorised use;
à p. 2 - 3.
– The oil in the hoist has cooled down.
Checking the
oil level

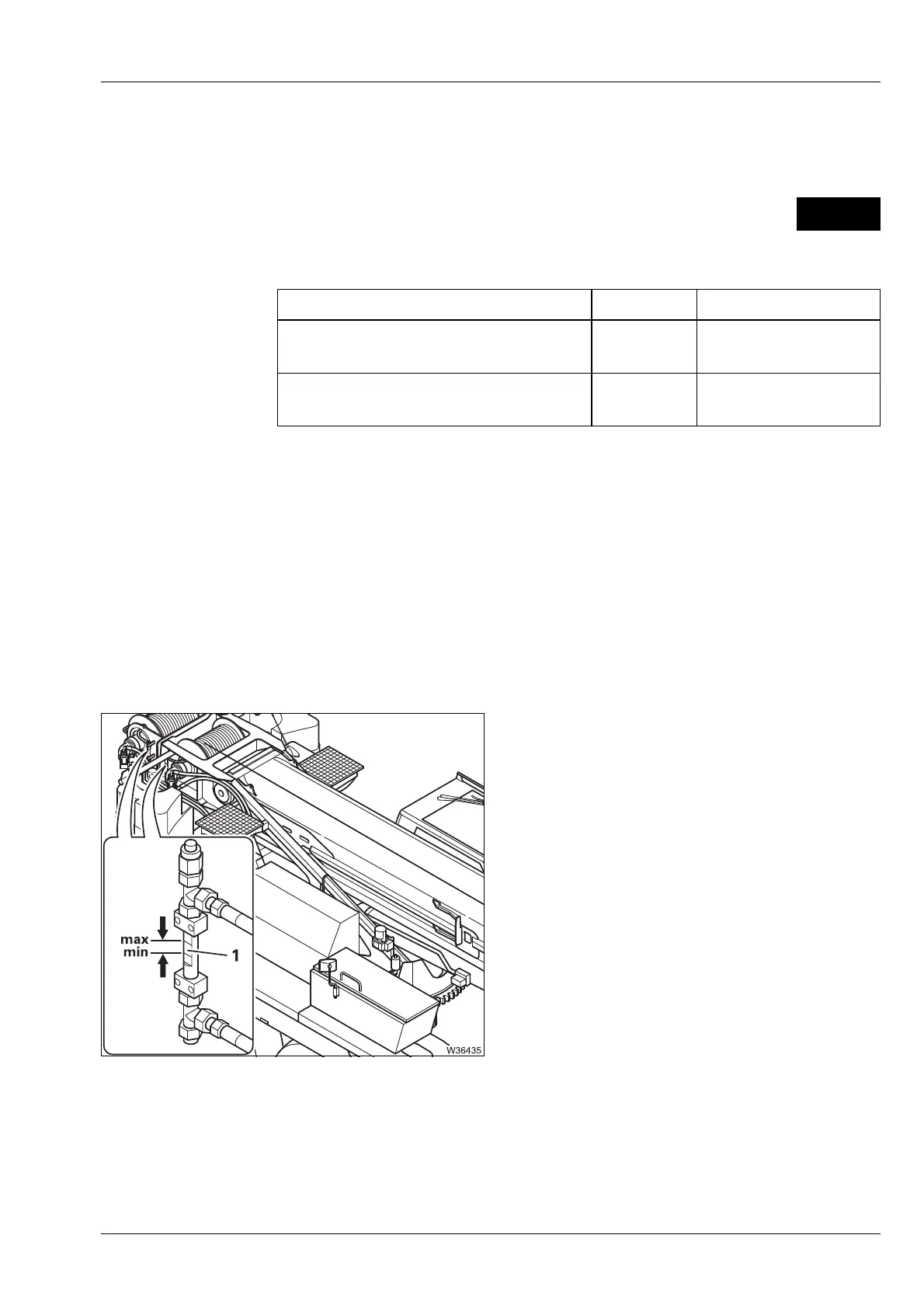

• Check that the oil level is visible between the
min. and max. marks (1).
If the oil level is too low
• Top up with oil; à p. 8 - 12.
W
Designation Quantity GROVE part no.
Oil inspection glass with 2 hoses
For main hoist; complete
1 04193151
Oil inspection glass with 2 hoses
For auxiliary hoist; complete
1 04193153
