Maintenance work on the carrier
7.7 Axle lines
7 - 54 3 302 574 en Maintenance manual
GMK3060
03.11.2017

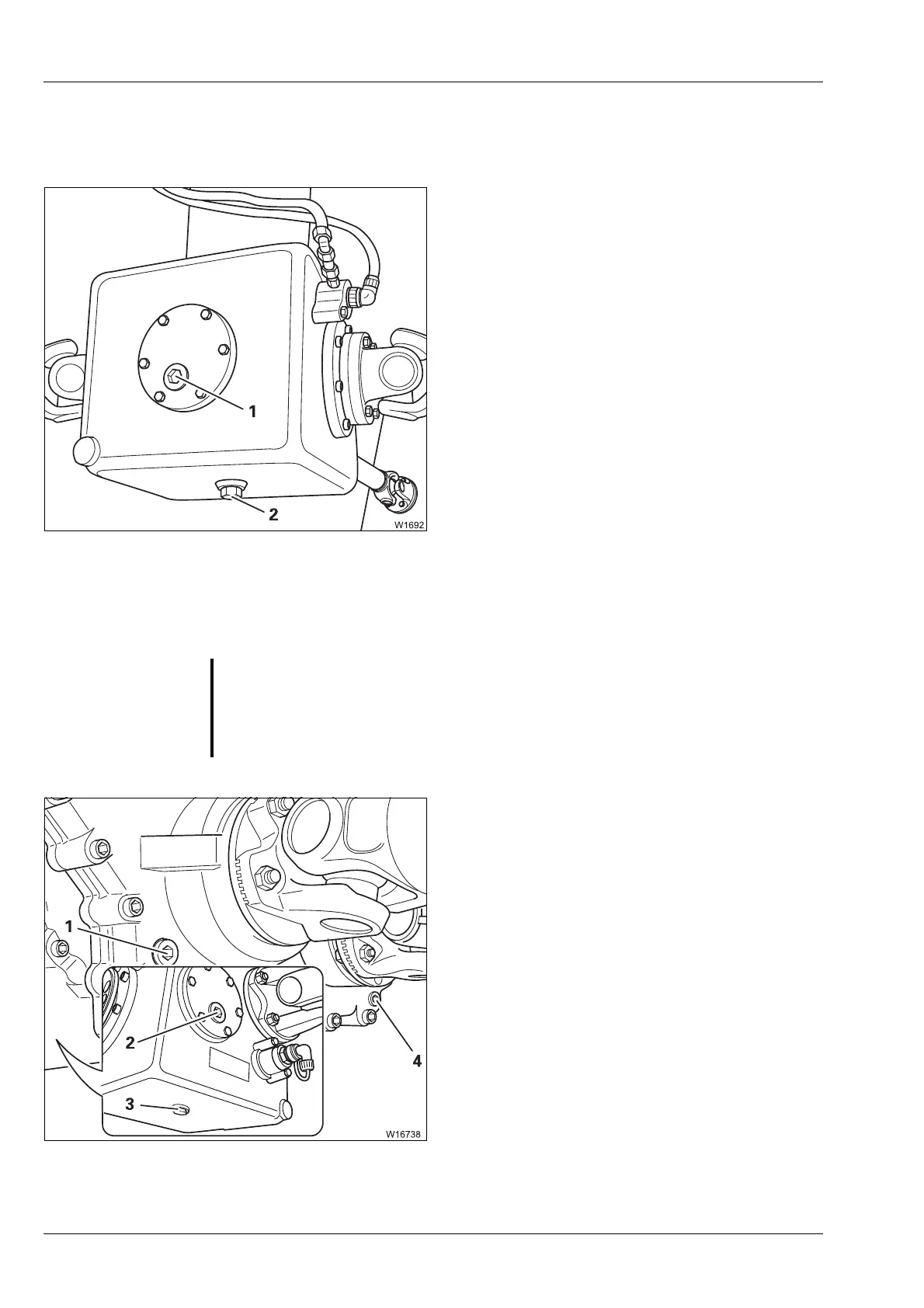

1st and 3rd axle
line
Axle centre drive on the 1st Axle line only present with a 6 x 6 x 6 drive.
• Place a receptacle under the drain plug (2).
• Unscrew the drain plugs (1) and (2) and
allow the oil to drain.
• Fit a new gasket and tighten the screw (2).
• Fill the oil up to the lower edge of the
opening.
• Fit a new gasket and tighten the screw (1).
2nd axle line The drive has two oil chambers.
• Place a receptacle under the screws (3)
and (4).
• Remove the drain plugs (1), (2), (3) and (4)
and let the oil drain off.
• Fit new gaskets and tighten the screws (3)
and (4).
• Top up oil through opening (1) until it flows
out of the opening (2).
• Fit new gaskets and tighten the screws (1)
and (2).
S
Risk of oil overheating!
When topping up the oil, both openings must be opened so that both oil
tanks are filled equally. This prevents the oil tanks from being overfilled and
thus the oil from overheating.
