Maintenance work on the superstructure
8.8 Hoist ropes
8 - 56 3 302 574 en Maintenance manual
GMK3060
03.11.2017

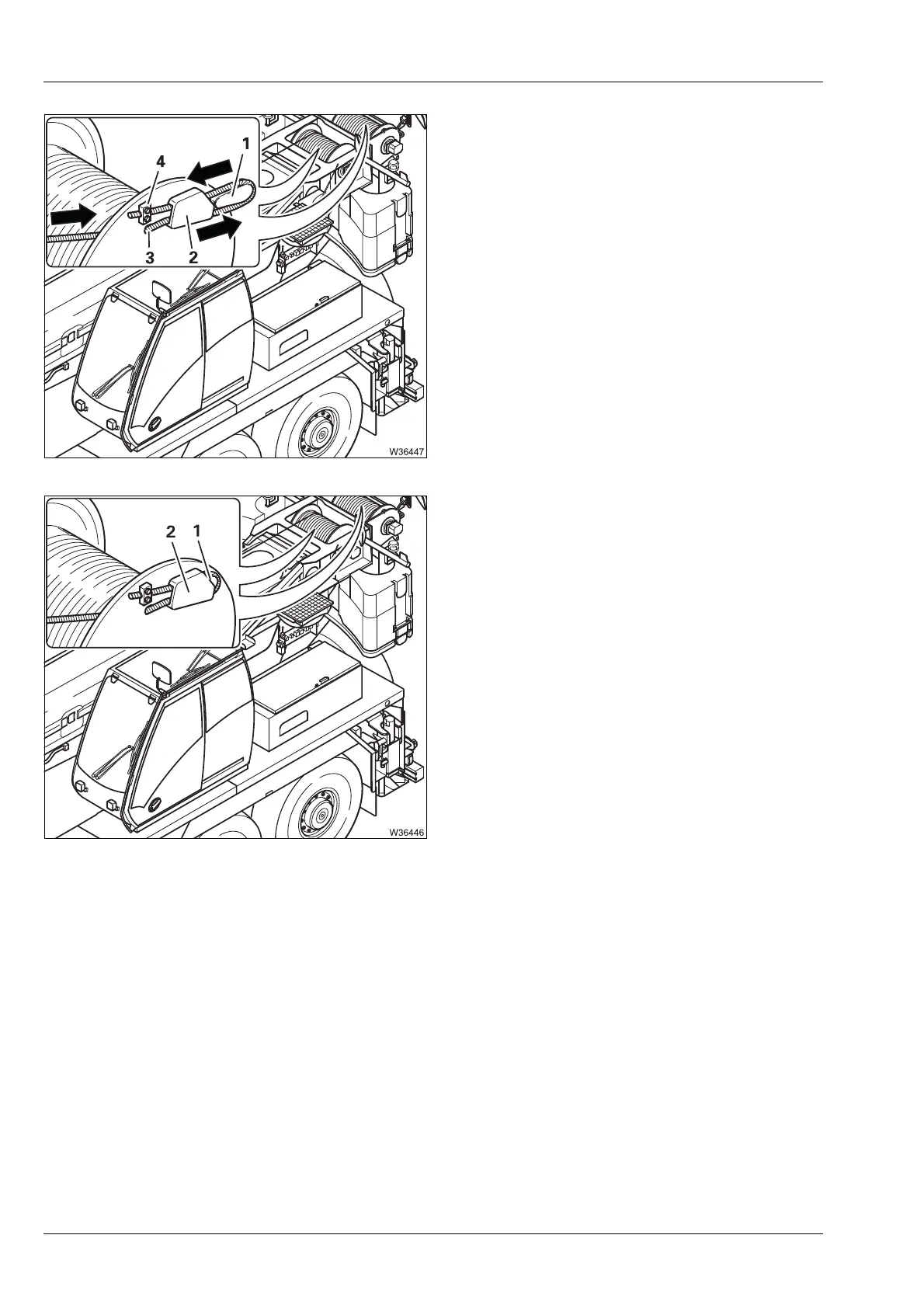

• Guide the rope through the hole (3), until it
protrudes about 1.5 m (5.0 ft) beyond the
pocket (2).
• Feed the free end of the rope back through
the pocket.
• Fasten the clamp (4)and tighten it – torque
44 Nm (32 lbf ft).
• Place the rope wedge (1) in the loop.
• Pull the rope back until the rope wedge (1) is
fully in the pocket (2).
• Ensure that the rope wedge, loop and rope
end do not protrude beyond the flanged
wheel. This will prevent damage.
• Start the engine.
• Hold the rope taut and wind up the rope slowly.
• Reeve a hook block – at least 5-fold reeving; à Operating Instructions.
• Raise the main boom to a steep position and extend it fully.
• Unwind the rope until only five turns remain on the rope drum.
