Maintenance work on the carrier
7.3 Engine
03.11.2017
Maintenance manual 3 302 574 en 7 - 25
GMK3060
• Tilt the driver's cab; à Tilting and lowering the driver's cab, p. 7 - 3.

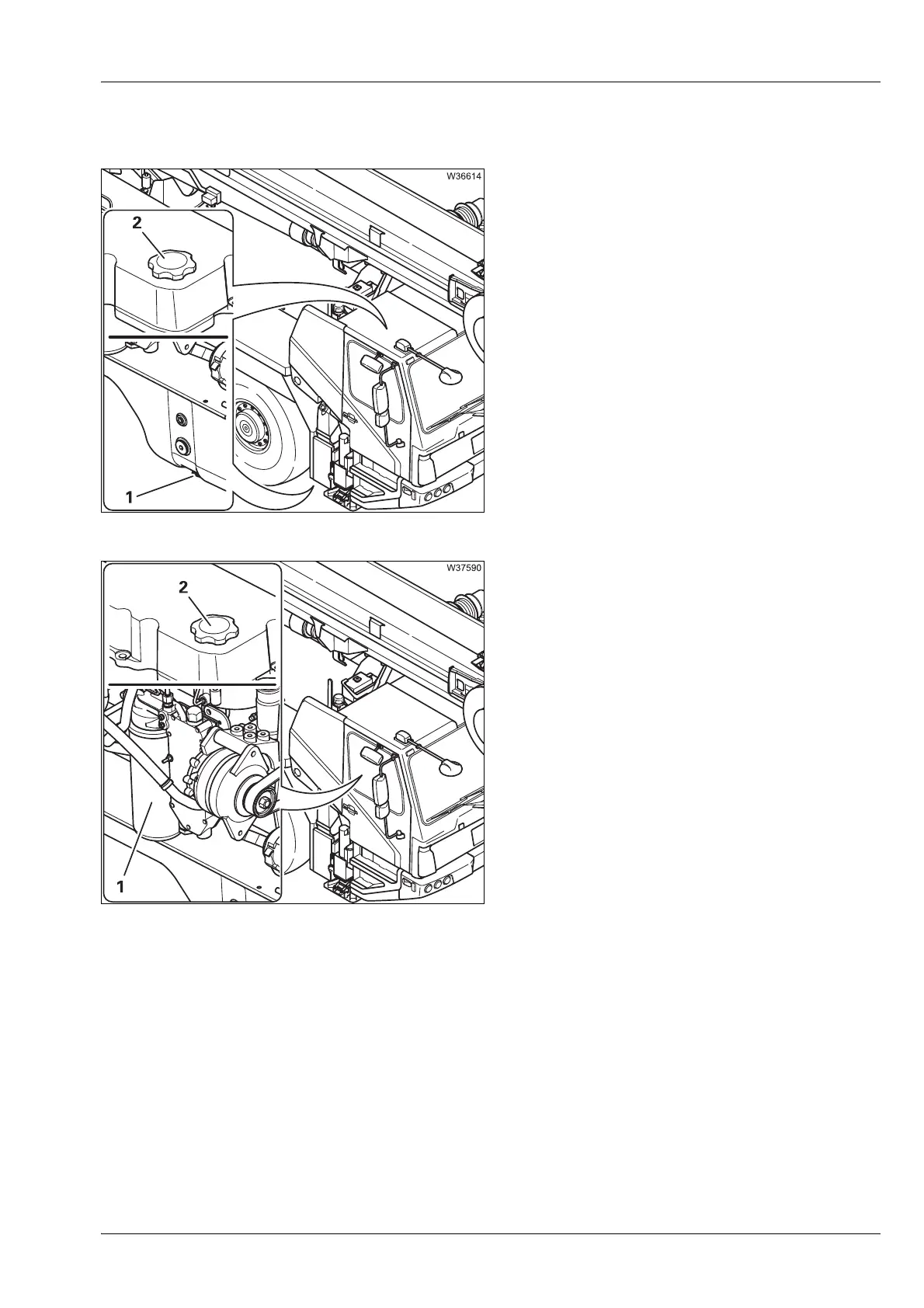

Draining oil
• Place a receptacle underneath the engine.
• Remove the cover (2) from the filler neck.
• Unscrew the drain plug (1) and let the oil
drain off.
• Fit a new gasket and tighten the screw (1).
• Leave the receptacle in place for the oil filter change.
Oil filter
• Unscrew the filter (1).
• Apply a light film of oil to the seal of the new
filter (1) and firmly screw it in by hand.
Topping up the oil
• Top up with fresh oil through the filler
neck (2);
à p. 7 - 17.
• Remove the receptacle.
• Lower the driver's cab; à Tilting and lowering the driver's cab, p. 7 - 3.
