5. GENERAL EQUIPMENT DESCRIPTION
The P3UP connected to the Marposs measurement heads can be used to check the dimensions of the part
in the machine and display the state of the machining process. The value of the measurement during the
grinding process is compared with the pre-defined stock metal values, thus providing the machine with the
signals it requires in order to control the progress of the grinding wheel. The P3UP and Marposs measuring
heads input protection ratings mean that they are suitable for use in a workshop environment.
5.1 Product versions
P3UP is available in two versions
1) P3UP
In-Process version:

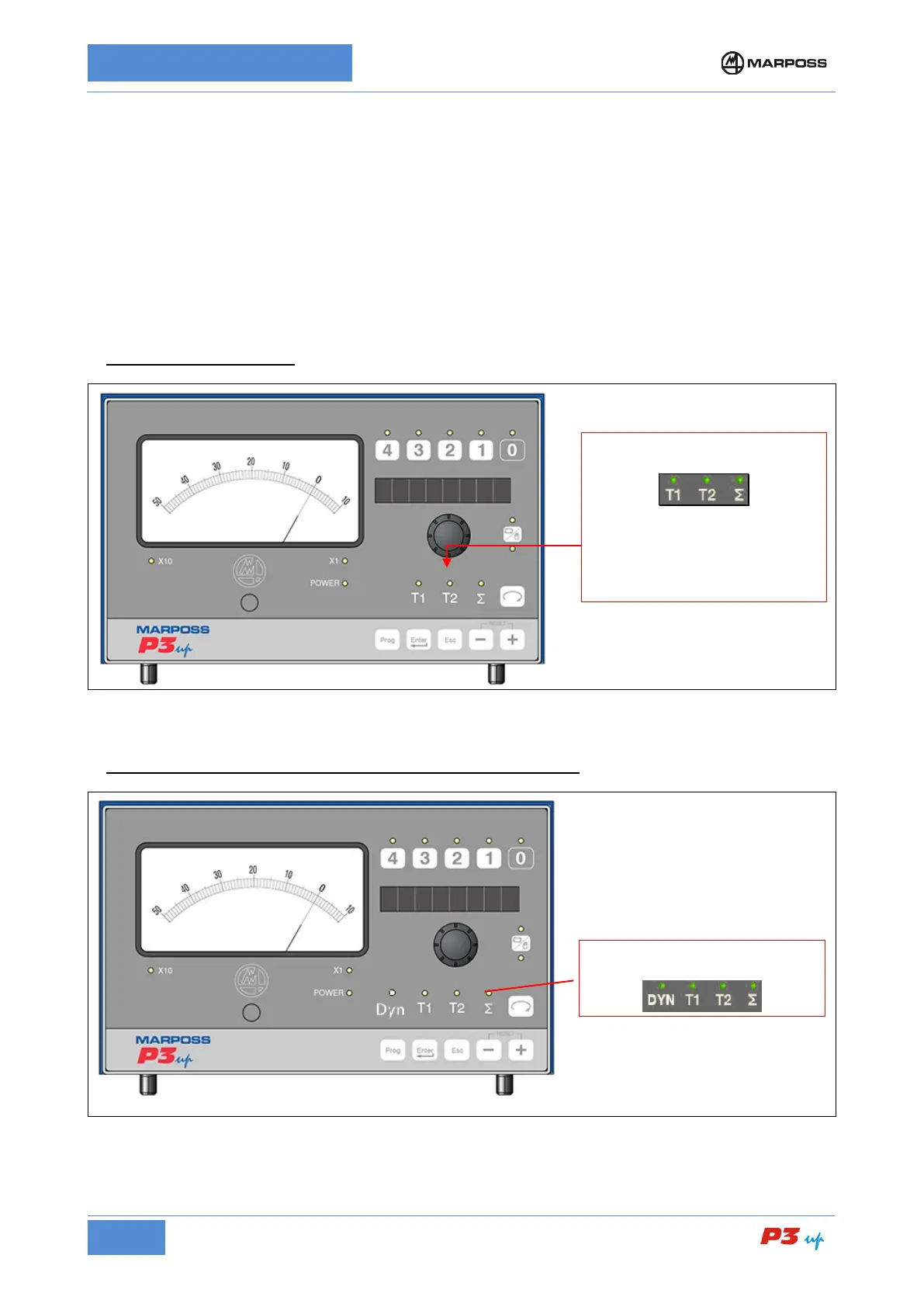

Figure 1: P3UP In-ProcessP3UP In-Process
2) P3UP
In-Process version with planes or stock removal estimate:
Figure 2: P3UP In-Process with planes or stock removal estimate
The two versions are available in case or panel-mounted versions:
The following indicator lamps are
present on the front panel
;
The following indicator lamps are
present on the front panel
;
