Installation and User Manual

6.8

Cyclograms

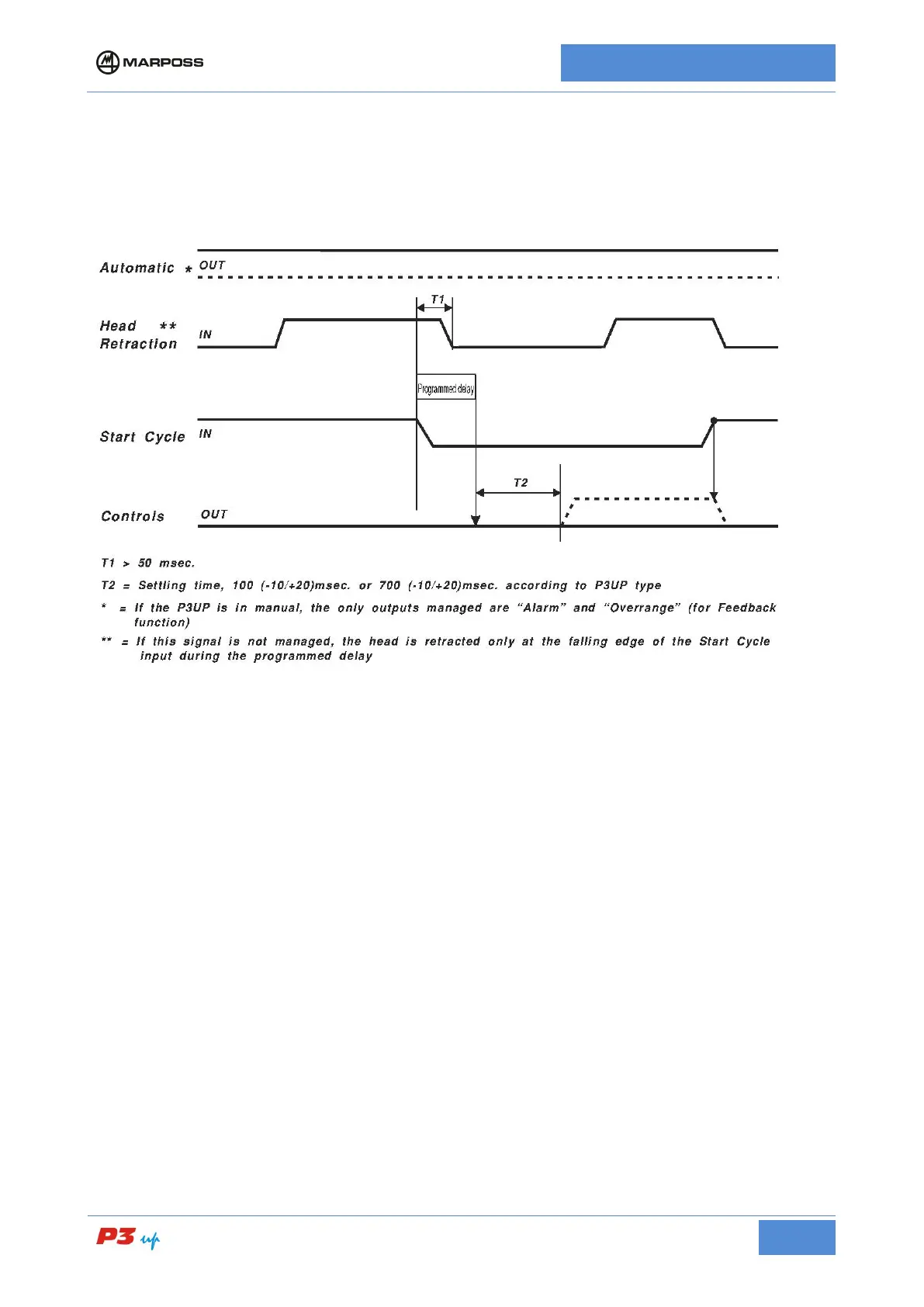

The following is a typical cyclogram for P3UP with In-Process measurements The cyclograms may vary,

depending on the application, consult the documentation supplied with the unit.
