marposs P3UP - 6.3.1 I;O Type A - Outputs with N.O. contacts relays

Installation and User Manual
31
6.3.1 I/O TYPE A – Outputs with N.O. contacts relays
The following table lists the variants that are available:
label
Input nominal voltage
Output voltage
I/O TYPE A1
24 V a.c. / d.c
max 150 V a.c.
I/O TYPE A2
115 V a.c.
max 250 V a.c.
I/O TYPE A3
230 V a.c.
max 250 V a.c.
I/O TYPE A5
24 V a.c. / d.c
max 150 V a.c. / d.c.
I/O TYPE A6
115 V a.c.
max 150 V a.c. / d.c.
I/O TYPE AA *
24 V a.c. / d.c
max 250 V a.c.
IMPORTANT
The I/O module with the “I/O TYPE AA” label is fitted with a special contacts device on the
connector H1. (see paragraph 6.3.2)

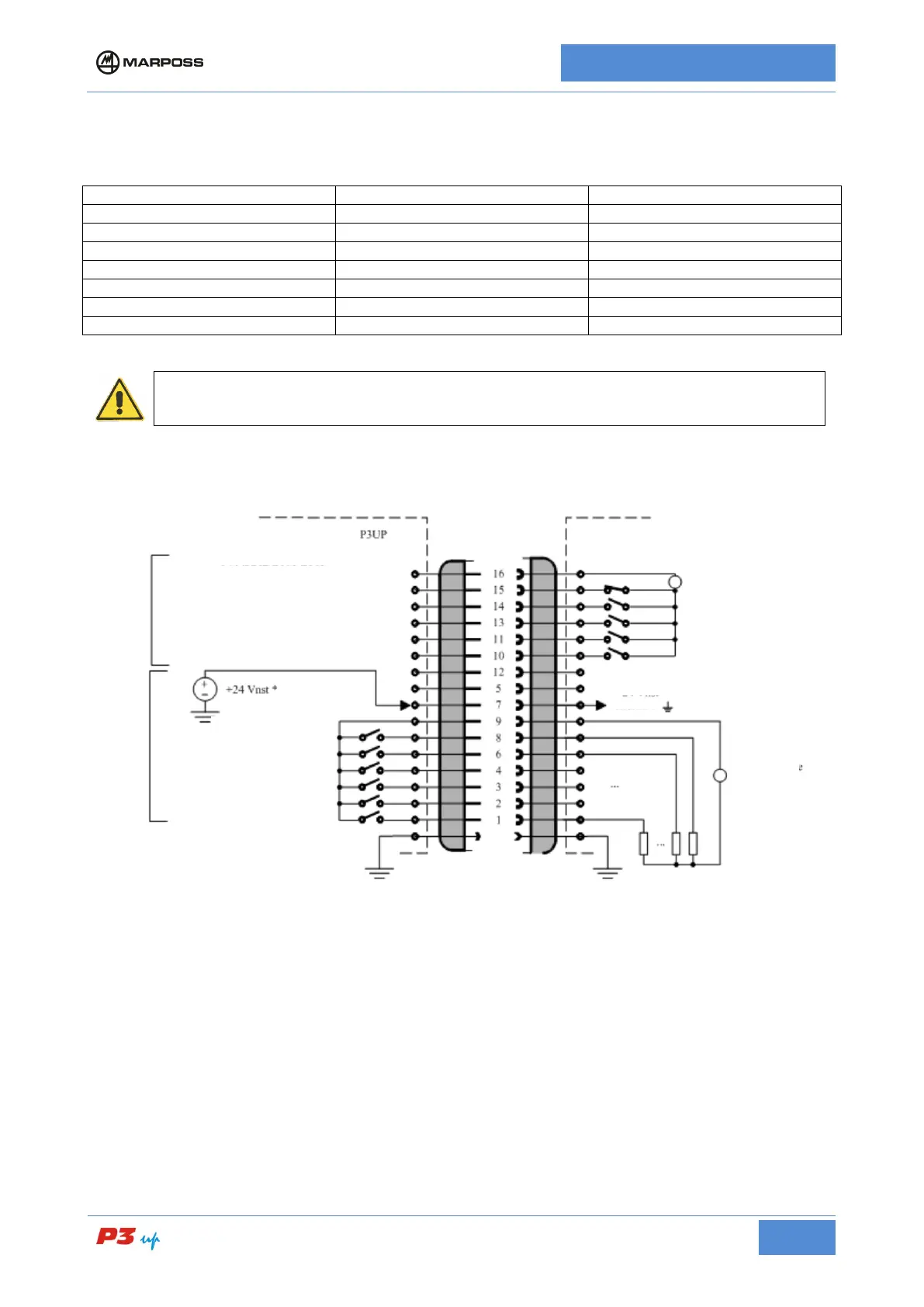

Connector H1 wiring diagram for I/O TYPE A1/A2/A3/A5/A6
NOTES:
* = present only in certain configurations.
** = based on the configuration.
INPUTS
OUTPUTS
INPUTS COMMON
START CYCLE
MEMORY HOLD
HEAD RETRACTION
PULSE FEEDBACK + (*)
PULSE F
EEDBACK – (*)
OUTPUTS COMMON
AUTO
OVR FEEDBACK
C3
C2
C1
C0
Inputs power
supply
Outputs
power
supply
+24 Vnst (*)
Ref. to
(*) N.B.
available in some configurations only
User’s logic (ex. CNC,PLC,etc.
