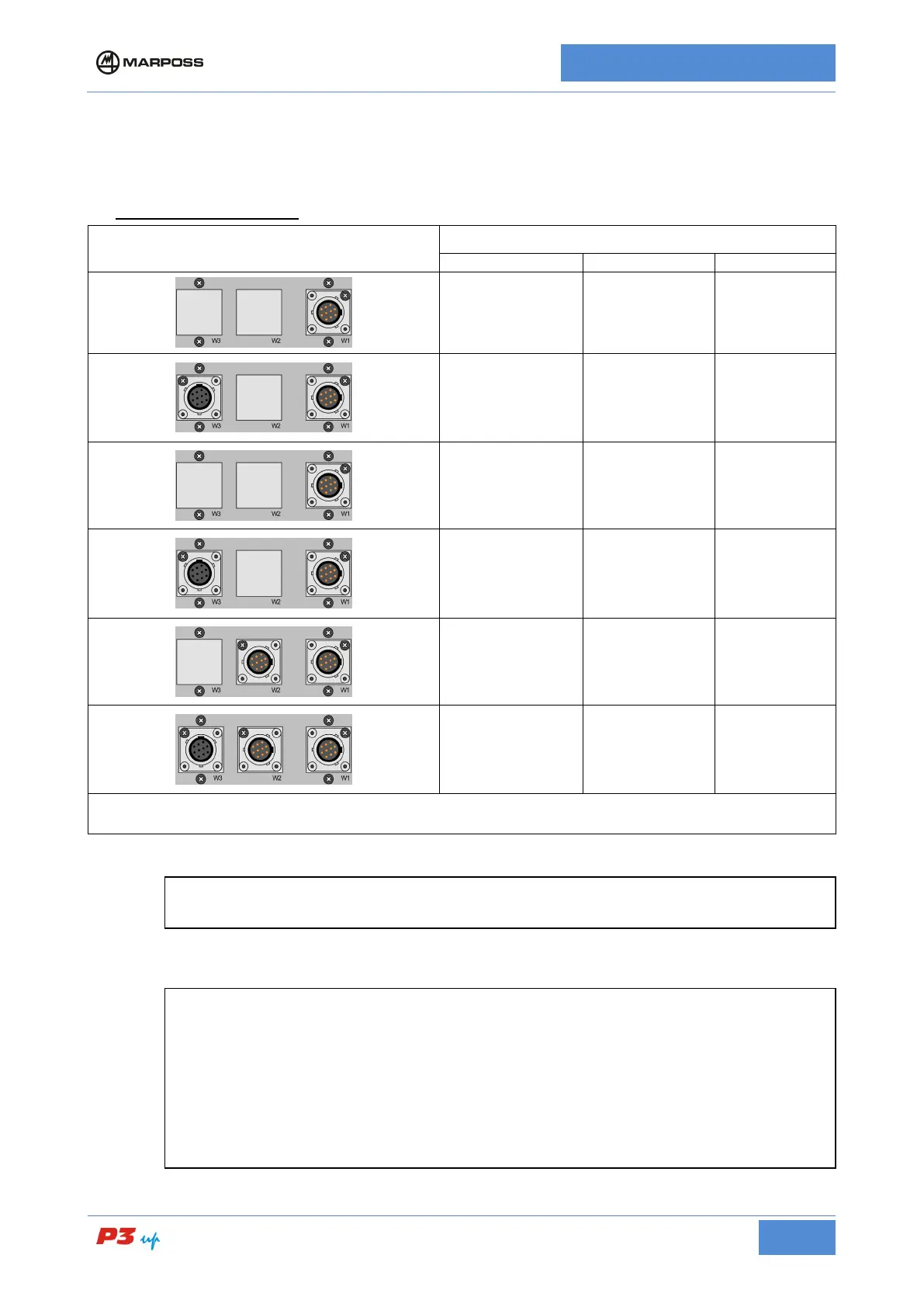

6.2 Connecting the measurement heads
The unit can be connected to Marposs In-Process heads with one or two transducers.
The following connections are available, depending on the requirements of the application.
 P3UP
In Process version
CONNECTOR LAYOUT
SIGNALS
W3
W2
W1
IP 1 transducer
Analogue output IP 1 transducer
IP 2
transducers
Analogue output
IP 2
transducers
IP 1 transducer IP 1 transducer
Analogue output IP 1 transducer IP 1 transducer
Legend:
IP = In-Process measurement head
[
N.B.
The connectors W2 and/or W3 may NOT be present, depending on the individual application.
[
N.B.
In the case of the In Process version with Air Gap transducers (and hence no LVDT) and when
connectors W1 and W2 are both present, it is possible to use a dual transducer measurement
head connected to W1 only, provided the free connector W2 is fitted with a metal plug (code no.
4140400032 - available from your Marposs dealer upon request).
To fit the metal plug, proceed as follows:
1. Undo the indicated screw (A)
2. Insert the screw through the ring at the end of the retaining chain attached to the metal
plug, and re-tighten it.
3. Fit the metal plug on W2.
