MLA System USER GUIDE
MLA System User Guide V2.1 113

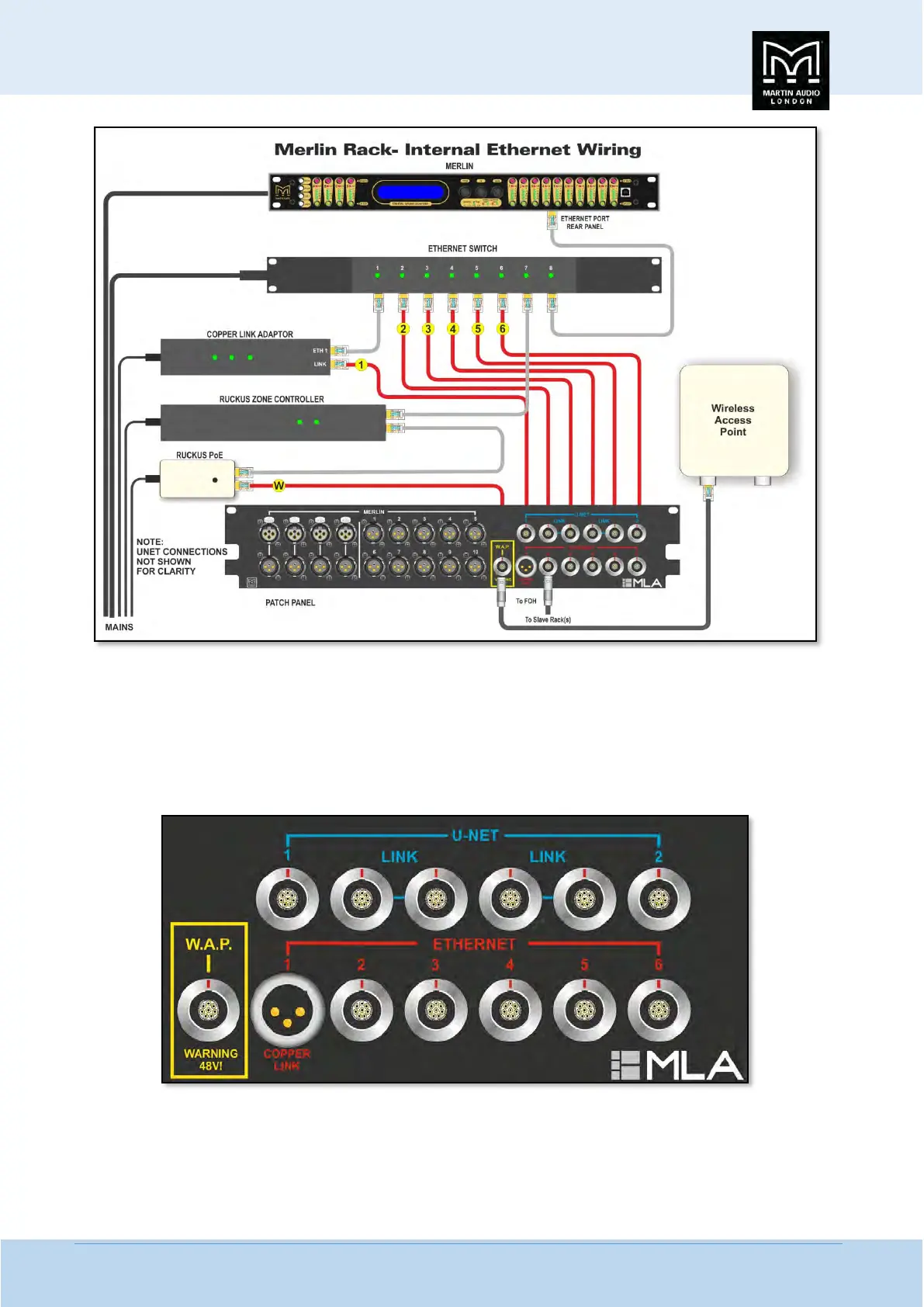

This shows the WAP which is supplied as part of the FoH rack. There are similarities with the Mk1 system with the Ruckus Zone
Director replacing the PicoStation DHCP Server. The feed to the WAP is via the WAP PoE and goes to a dedicated antenna
connector on the patch panel. This also has 48V present so should not be connected to other Ethernet devices.
The Copper Link adaptor uses one of the Switch ports and feeds the patch panel copper link adaptor XLR. This is still an Ethernet
connection so is colour coded red but is differentiated from the standard Ethernet connections by virtue of using an XLR and not
the ODU connectors used for all other Ethernet connections;-
